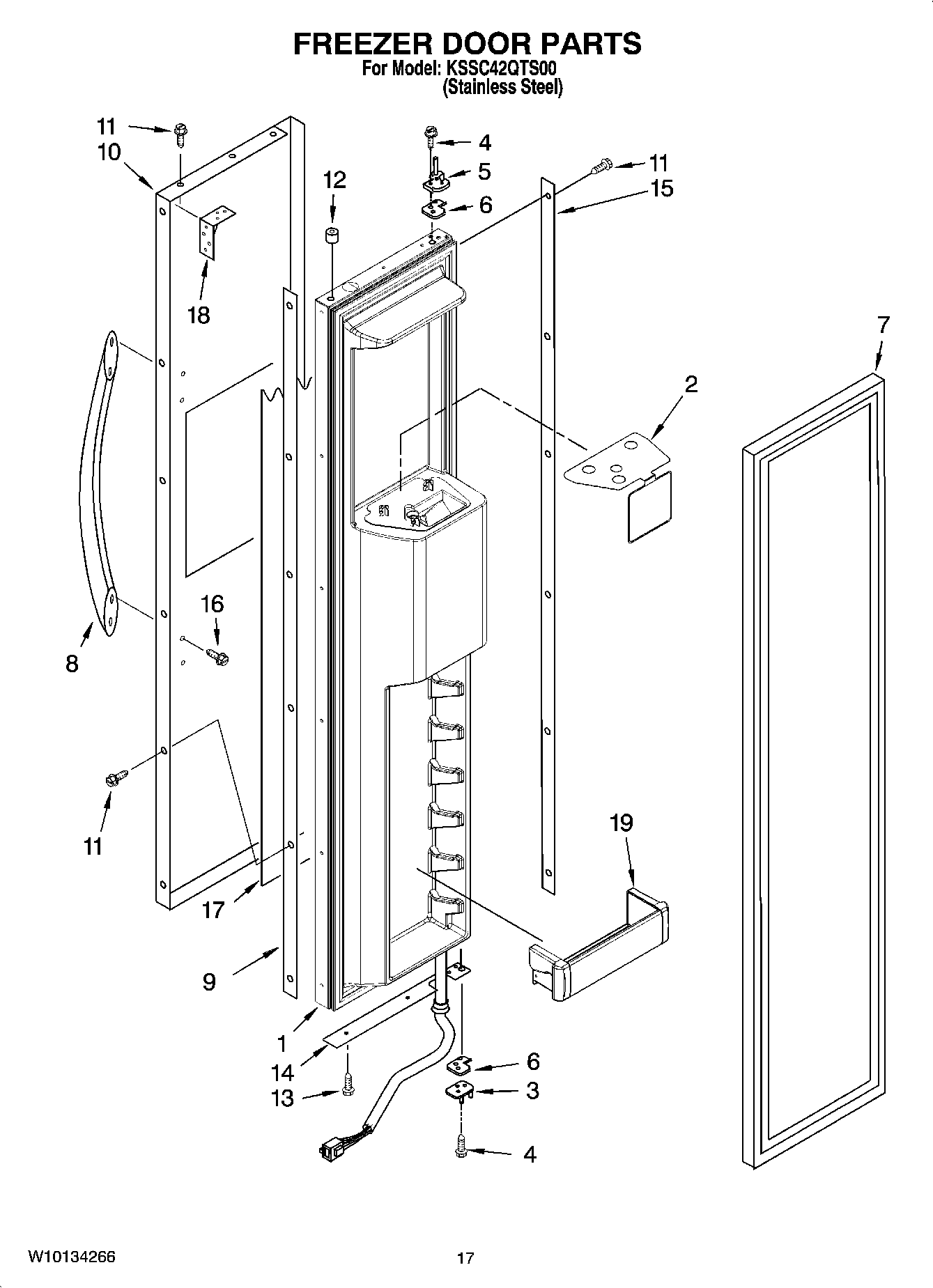

KSSC42QTS00 11 – FREEZER DOOR PARTS

KSSC42QTS00 11 – FREEZER DOOR PARTS

Written by

in

KSSC42QTS00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 13) (Universal Silver)
2Safety Barrier
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door (Handle Side)
10SKIN, DOOR
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
142257385 Whirlpool Refrigerator Spacer
15Spacer, Hinge Side
16WP308544 Whirlpool Screw
172328901 Whirlpool Filler Panel
172328902 Whirlpool Filler
18BRACE, DOOR CORNER
19W10323602 Whirlpool Refrigerator Cantilever Bin
