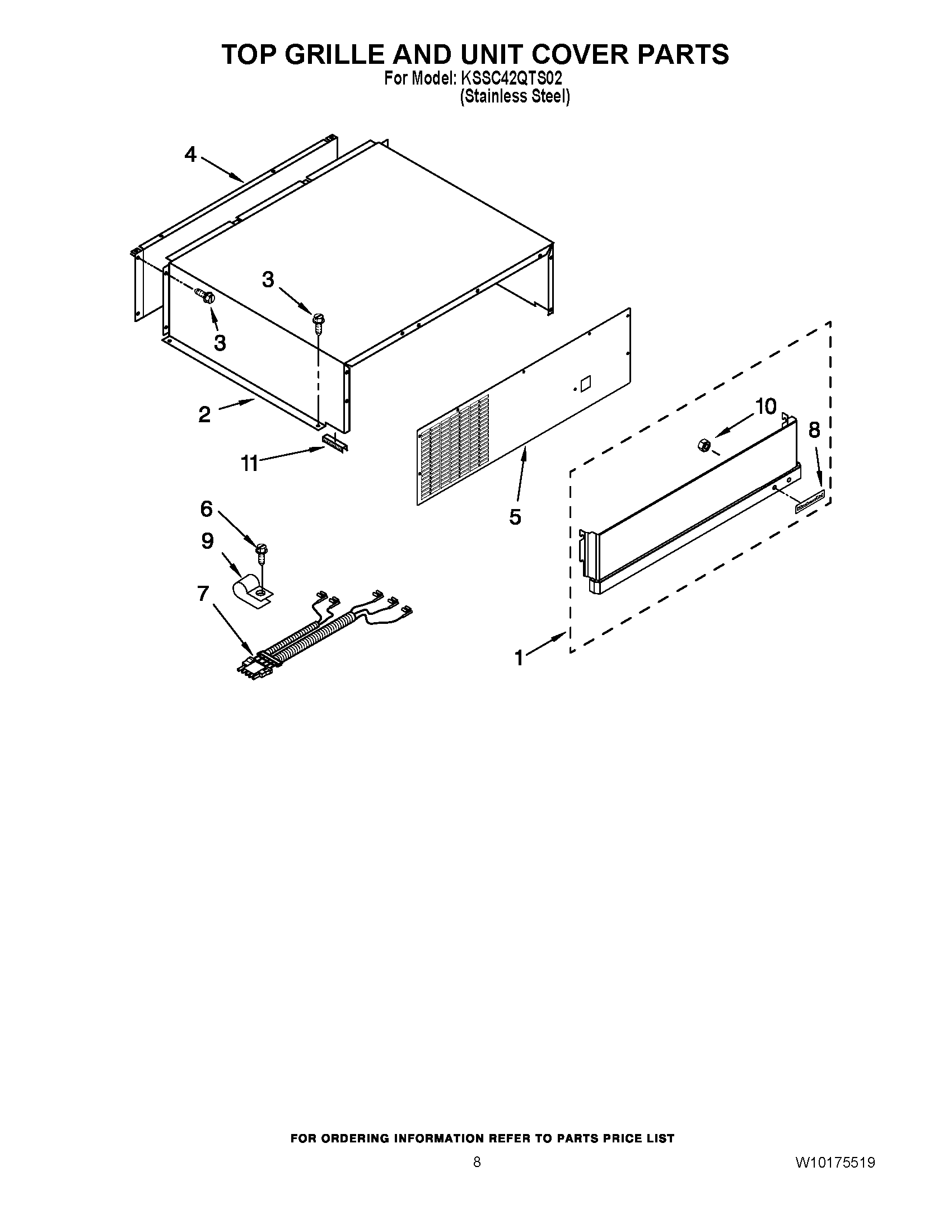

KSSC42QTS02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Cover, Unit Front
6	WP965173 Whirlpool Dishwasher Screw
7	WIRE ASSEMBLY RC/FC LIGHT SWITCH
8	NAMEPLATE
9	489348 Whirlpool Refrigerator Tube Clamp
10	WP2004333 Whirlpool Refrigerator Nut
11	2215910 Whirlpool Refrigerator Grommet
