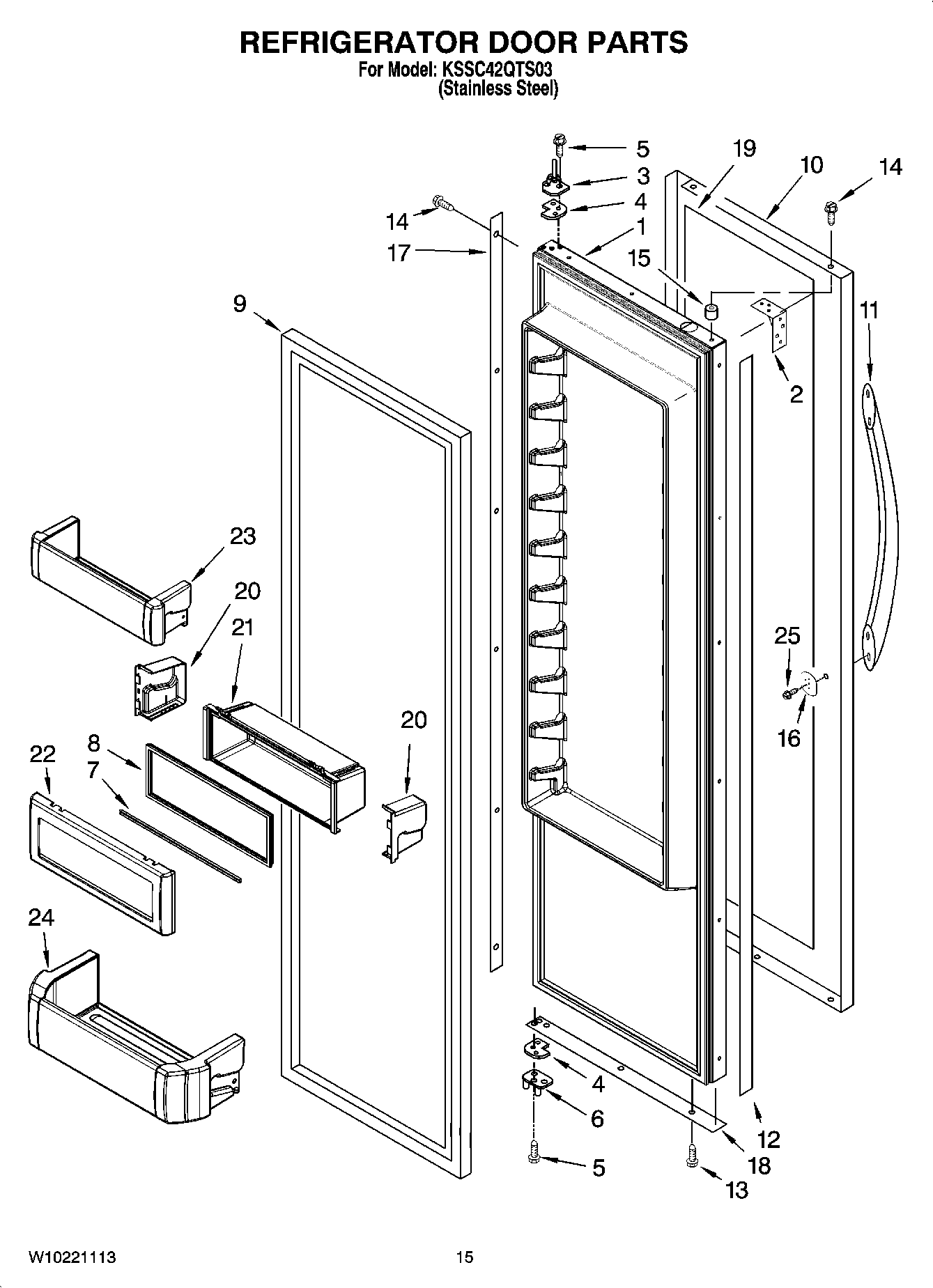

KSSC42QTS03 10 – REFRIGERATOR DOOR PARTS

KSSC42QTS03 10 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC42QTS03 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 9)
2BRACE, DOOR CORNER
3W11724512 Whirlpool Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11448696 Whirlpool Refrigerator Bin
8Gasket, Utility Bin
9WP2266902 Whirlpool Refrigerator Door Gasket
10Skin, Door
11WP2316868 Whirlpool Refrigerator Handle
12Spacer, Door (Handle Side)
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
152005433 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17SPACER, DOOR-SKIN (HINGE SIDE)
18Spacer, Door Bottom
19Filler, Door
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20WPW10323172 Whirlpool Refrigerator Retainer End Cap
21W10323042 Whirlpool Cantilever Bin
22W11553221 Whirlpool Refrigerator Door Compressor
23W10323599 Whirlpool Refrigerator Cantilever Bin
24W10323747 Whirlpool Refrigerator Cantilever Bin
25W10127710 Whirlpool Refrigerator Plate
