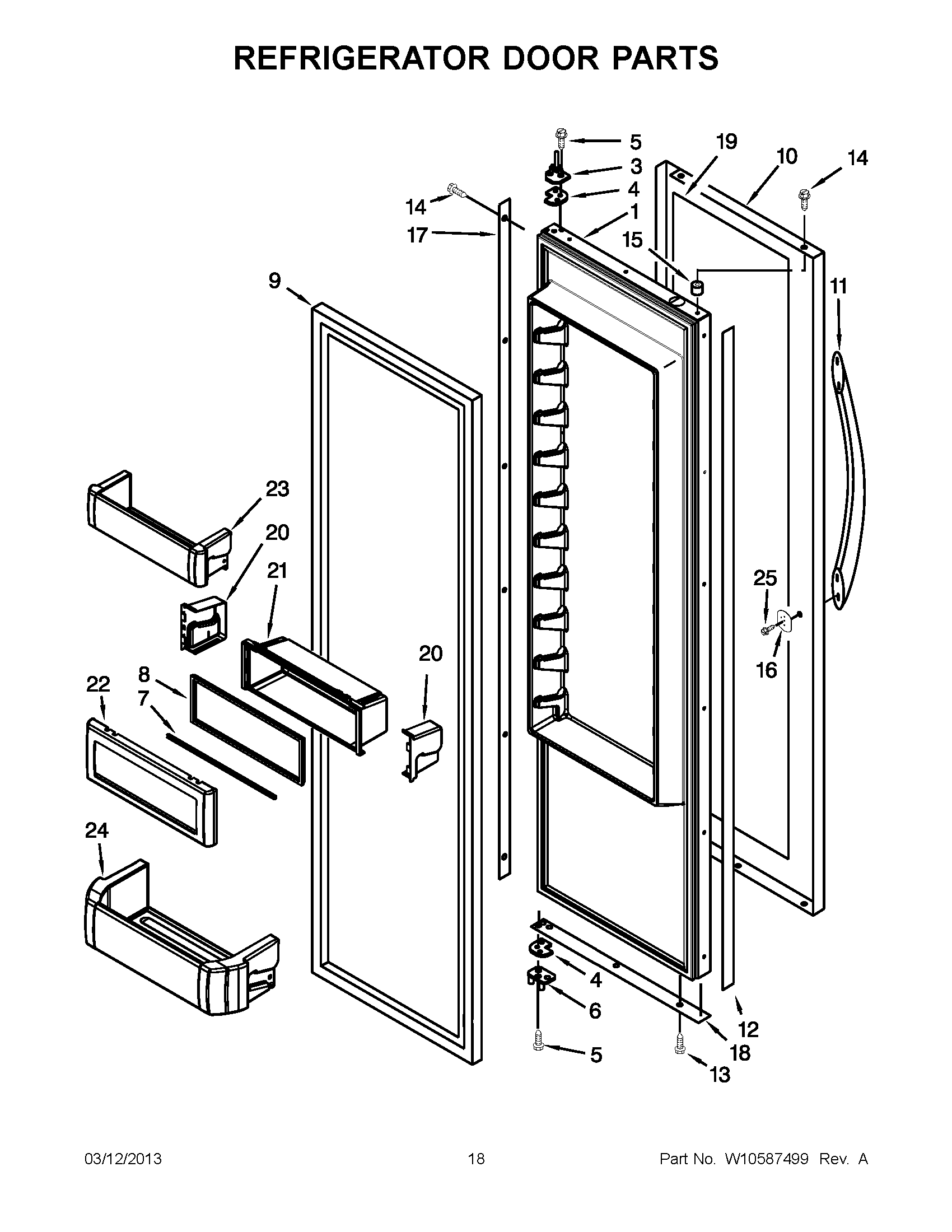

KSSC42QTS17 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	Gasket, Utility Bin
9	WP2266902 Whirlpool Refrigerator Door Gasket
10	W10579189 Whirlpool Refrigerator Skin Door
11	WP2316868 Whirlpool Refrigerator Handle
11	Spacer, Door (Handle Side)
13	W10759522 Whirlpool Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	2005433 Whirlpool Refrigerator Spacer
16	WP308544 Whirlpool Screw
17	SPACER, DOOR-SKIN (HINGE SIDE)
18	Spacer, Door Bottom
19	Filler, Door
20	WPW10323173 Whirlpool Refrigerator Retainer End Cap
20	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	W10323042 Whirlpool Cantilever Bin
22	W11553221 Whirlpool Refrigerator Door Compressor
23	W10323599 Whirlpool Refrigerator Cantilever Bin
24	W10323747 Whirlpool Refrigerator Cantilever Bin
25	W10127710 Whirlpool Refrigerator Plate
