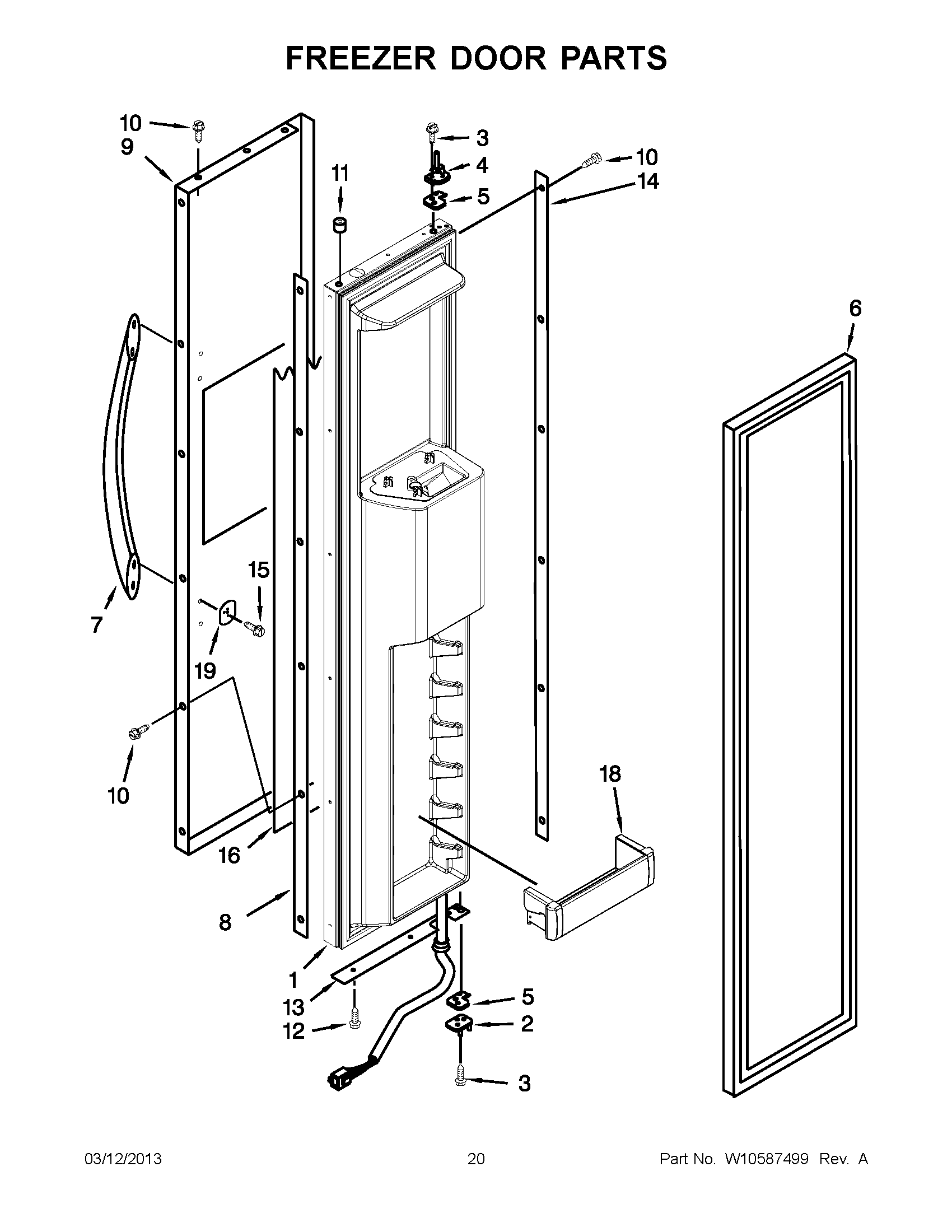

KSSC42QTS17 10 – FREEZER DOOR PARTS

KSSC42QTS17 10 – FREEZER DOOR PARTS

Written by

in

KSSC42QTS17 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR
2HINGE-DOOR
3W11474472 Whirlpool Screw
5W11673500 Whirlpool Door Hinge
6WP2266905 Whirlpool Refrigerator Door Gasket
7WP2316868 Whirlpool Refrigerator Handle
8Spacer, Door (Handle Side)
9SKIN, DOOR (STAINLESS)
10WP8281250 Whirlpool Refrigerator Screw
112005433 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
132257385 Whirlpool Refrigerator Spacer
14SPACER, DOOR-SKIN (HINGE SIDE)
15WP308544 Whirlpool Screw
162328901 Whirlpool Filler Panel
162328902 Whirlpool Filler
18W10323602 Whirlpool Refrigerator Cantilever Bin
19W10127710 Whirlpool Refrigerator Plate
