KSSC42QTS17 11 – DISPENSER PARTS

KSSC42QTS17 11 – DISPENSER PARTS

Written by

in

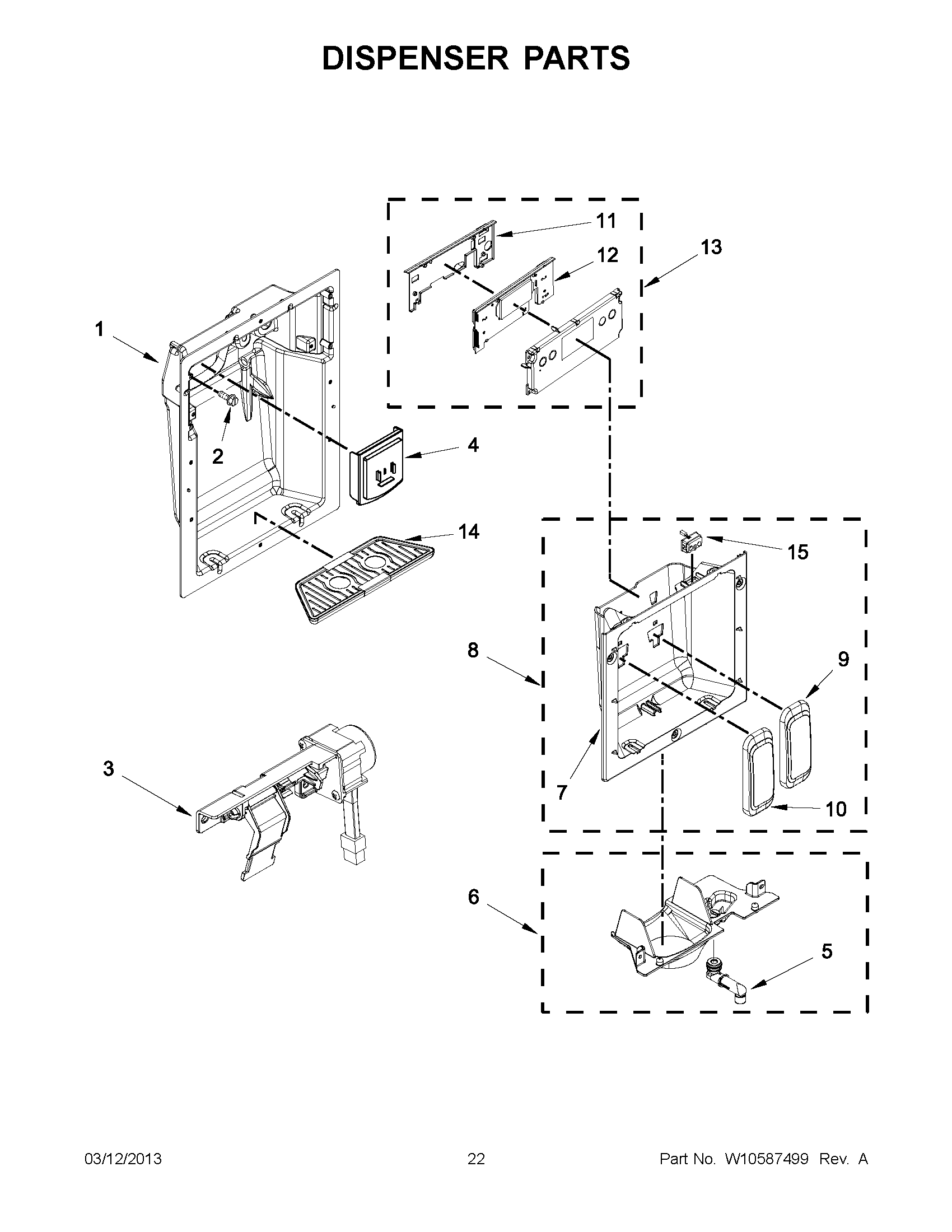

KSSC42QTS17 11 – DISPENSER PARTS

Products

PositionProduct
2W11624204 Whirlpool Screw
3WPW10546285 Whirlpool Refrigerator Motor
4WPW10504458 Whirlpool Refrigerator Door Chute
5WP2305235 Whirlpool Refrigerator Spigot
62318017 Whirlpool Refrigerator Separator
7CABINET (NOT A SERVICEABLE PART)
8WPW10260622 Whirlpool Refrigerator Front Cover
10W10133603 Whirlpool Dispenser Actuator Pad Set
112305219 Whirlpool Refrigerator Cover
12WP2321746 Whirlpool Refrigerator Electronic Control Board
13WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
14W11177738 Whirlpool Refrigerator Drip Tray
15W10222215 Whirlpool Refrigerator Light Indicator
