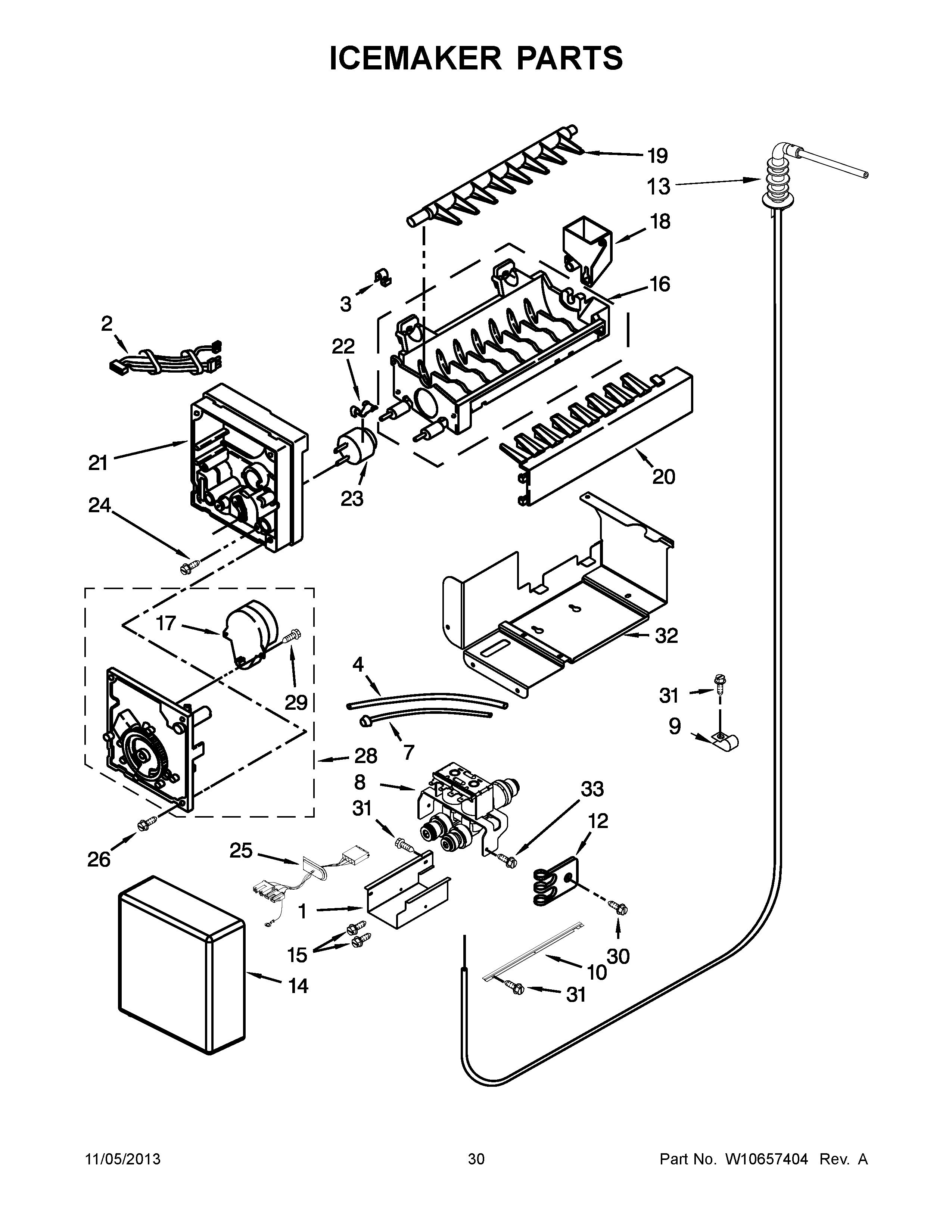

KSSC42QTS18 16 – ICEMAKER PARTS

Products

Position	Product
1	2320601 Whirlpool Refrigerator Shield
2	W10508659 Whirlpool Refrigerator Wire Harness
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159842 Whirlpool Refrigerator Inlet Valve
9	W10833902 Whirlpool Refrigerator Clamp
10	Support, Valve
12	WP488366 Whirlpool Refrigerator Clamp
13	W11212166 Whirlpool Refrigerator Inlet Tube
14	WPW10289690 Whirlpool Ice Maker Cover
15	WPW10141604 Whirlpool Screw
16	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
17	CABINET (NOT A SERVICEABLE PART)
18	WPW10272168 Whirlpool Refrigerator Water Fill Cup
19	WP627843 Whirlpool Refrigerator Ejector Arm
20	WPW10272161 Whirlpool Refrigerator Stripper Arm
21	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	WP2315522 Whirlpool Refrigerator Clip
23	WP627985 Whirlpool Icemaker Cycling Thermostat
24	W10001280 Whirlpool Refrigerator Screw
25	W10279391 Whirlpool Refrigerator Wire Harness
26	WP681249 Whirlpool Screw Assembly
28	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
29	489136 Whirlpool Refrigerator Screw
30	SCREW
31	W11624204 Whirlpool Screw
32	2252228 Whirlpool Refrigerator Bracket
33	WP489069 Whirlpool Compactor Screw
100	WPW10277448 Whirlpool Icemaker Assembly
