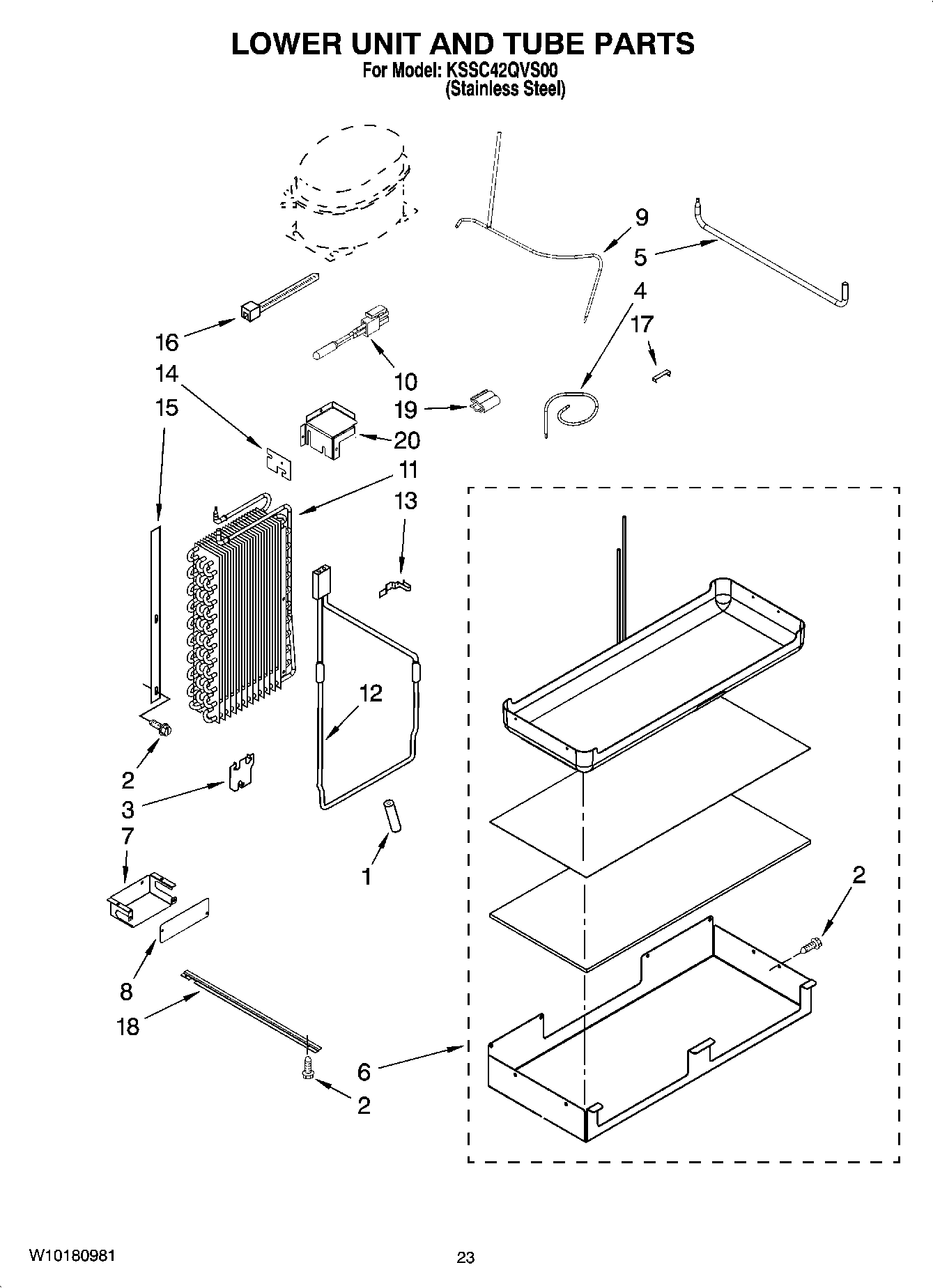

KSSC42QVS00 14 – LOWER UNIT AND TUBE PARTS

KSSC42QVS00 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC42QVS00 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W10139908 Whirlpool Seal
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4Tube, Suction
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7Cover, Wiring
8Cover, Wiring
9W10412488 Whirlpool Refrigerator Tube
10WP2188820 Whirlpool Refrigerator Thermistor
11WP2306093 Whirlpool Evaporator
12W10140161 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
15Gasket, Evaporator
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
199791833 Whirlpool Refrigerator Clip
20Bracket Assembly, Return Air
