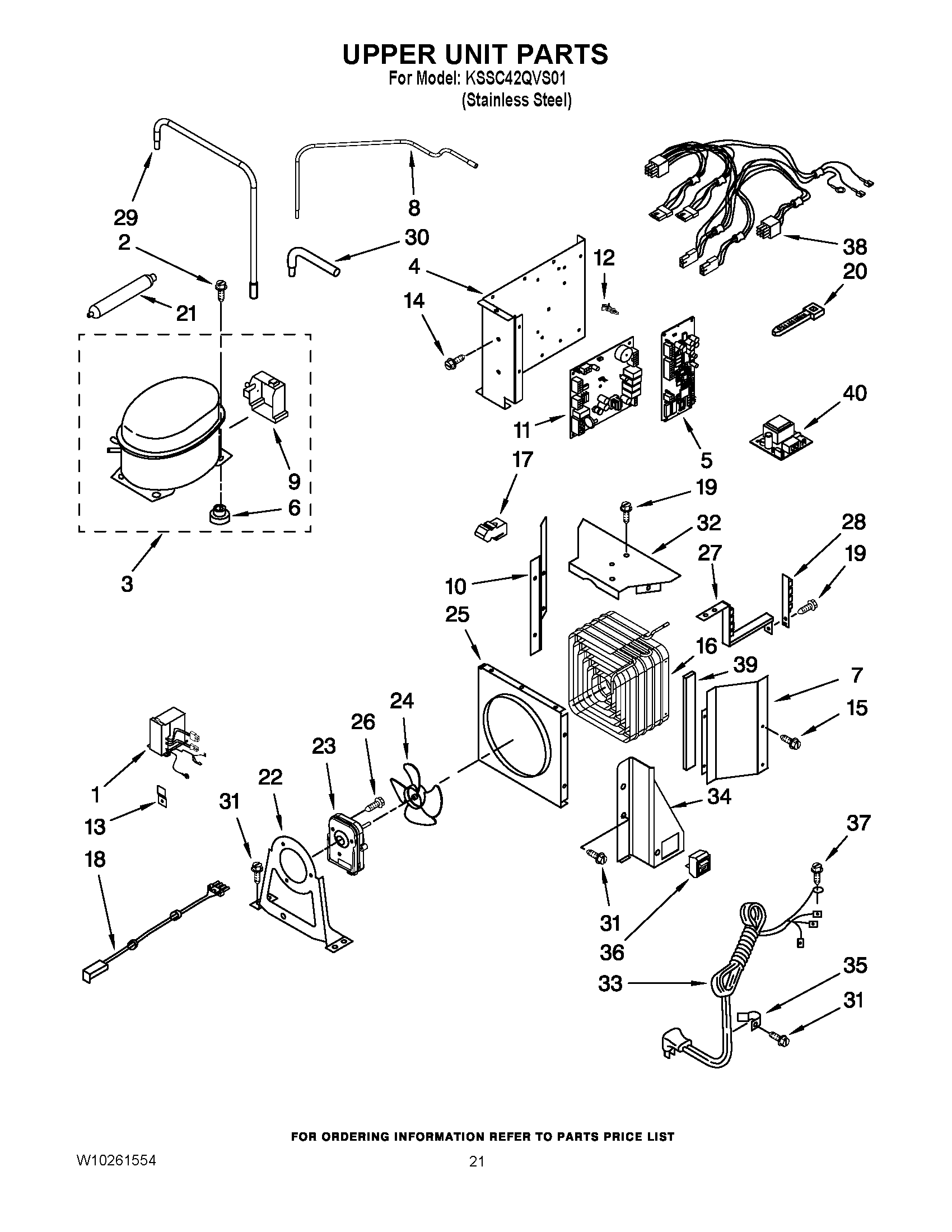

KSSC42QVS01 13 – UPPER UNIT PARTS

KSSC42QVS01 13 – UPPER UNIT PARTS

Written by

in

KSSC42QVS01 13 – UPPER UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NI978026 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (1/2“)
NIVALVE, ACCESS (5/8“)
NI876764 Whirlpool Refrigerator Primary Valve
1W10629033 Whirlpool Refrigerator Inverter Control Box
38201675 Whirlpool Refrigerator Compressor
4Housing, Control Board
5WP2318054 Whirlpool Refrigerator Electronic Control Board + Core
6876811 Whirlpool Grommet
7Support, Condenser (Right)
8Tube, Transition (Condenser)
92215676 Whirlpool Refrigerator Terminal Cover
10Support, Condenser (Left)
11W10219462 Whirlpool Refrigerator Electronic Control Board
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14WP488729 Whirlpool Refrigerator Door Screw
15WP489069 Whirlpool Compactor Screw
162307998 Whirlpool Refrigerator Condenser
172309431 Whirlpool Grommet
182310207 Whirlpool Wire Harness
19WP489399 Whirlpool Refrigerator Screw
20WPW10339879 Whirlpool Wire Tie
21WPW10143759 Whirlpool Dryer Filter
22WPW10136614 Whirlpool Refrigerator Bracket
23W11578915 Whirlpool Condenser Motor
24WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25Orifice, Fan
26WP8533993 Whirlpool Refrigerator Screw
27BRACKET, VIBRATION (CONDENSER)
28ARM, VIBRATION (CONDENSER)
292307566 Whirlpool Refrigerator Tube
30W10528578 Whirlpool Refrigerator Tube
31W11624204 Whirlpool Screw
32Cover, Condenser
332310196 Whirlpool Refrigerator Power Cord
34W10185556 Whirlpool Refrigerator Bracket
35549193 Whirlpool Refrigerator Power Clamp
36WP2266802 Whirlpool Refrigerator Switch
37WP489128 Whirlpool Refrigerator Screw
38W10178860 Whirlpool Refrigerator Wire Harness
392309432 Whirlpool Seal Strip
40WP2259350 Whirlpool Refrigerator Electronic Control Board
