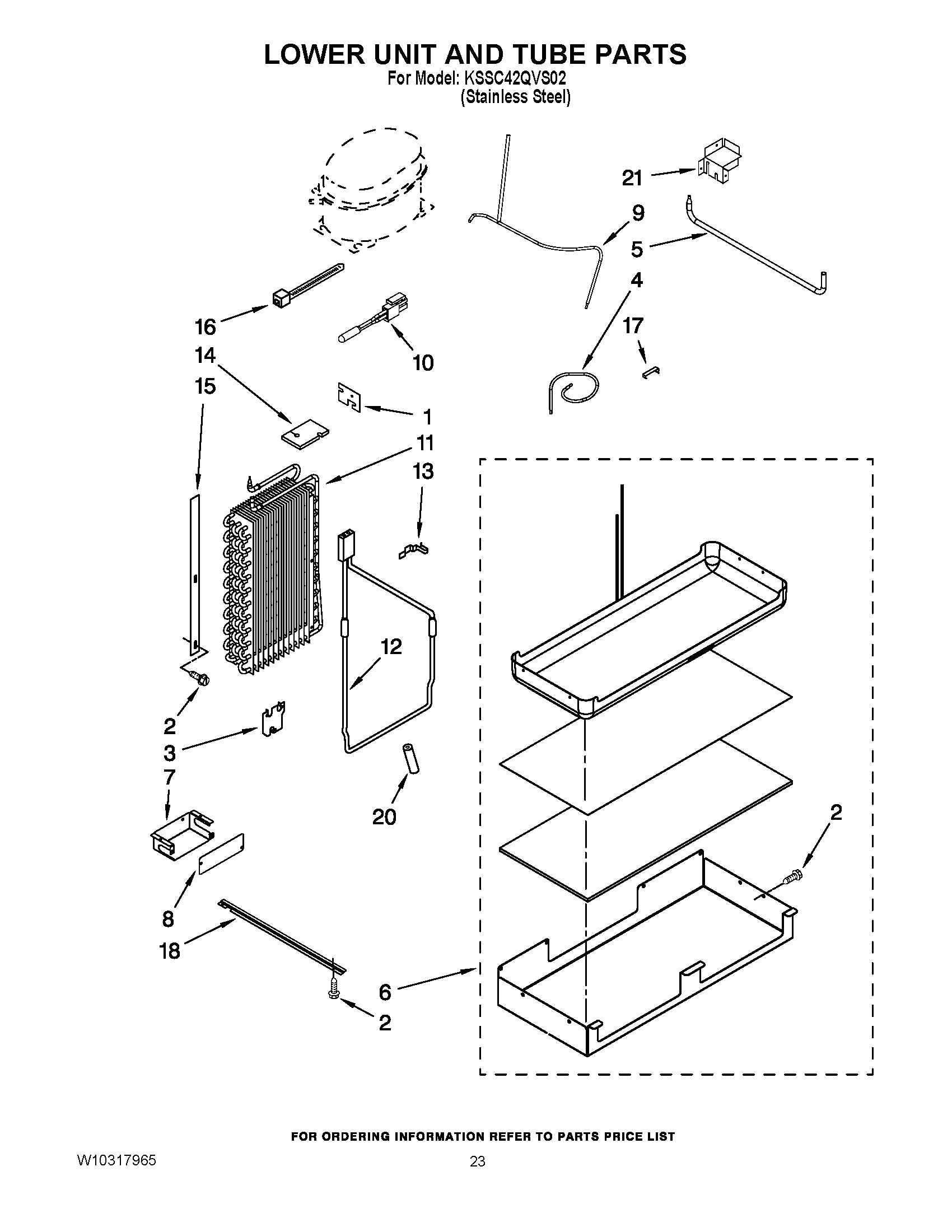

KSSC42QVS02 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W10139908 Whirlpool Seal
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4Tube, Suction
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7Cover, Wiring
8Cover, Wiring
9W10412488 Whirlpool Refrigerator Tube
10WP2188820 Whirlpool Refrigerator Thermistor
11WPW10205101 Whirlpool Refrigerator Evaporator
12W10140161 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14Seal, Return Air
15Gasket, Evaporator
16Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
202215648 Whirlpool Refrigerator Dampener
21Bracket Assembly, Return Air
