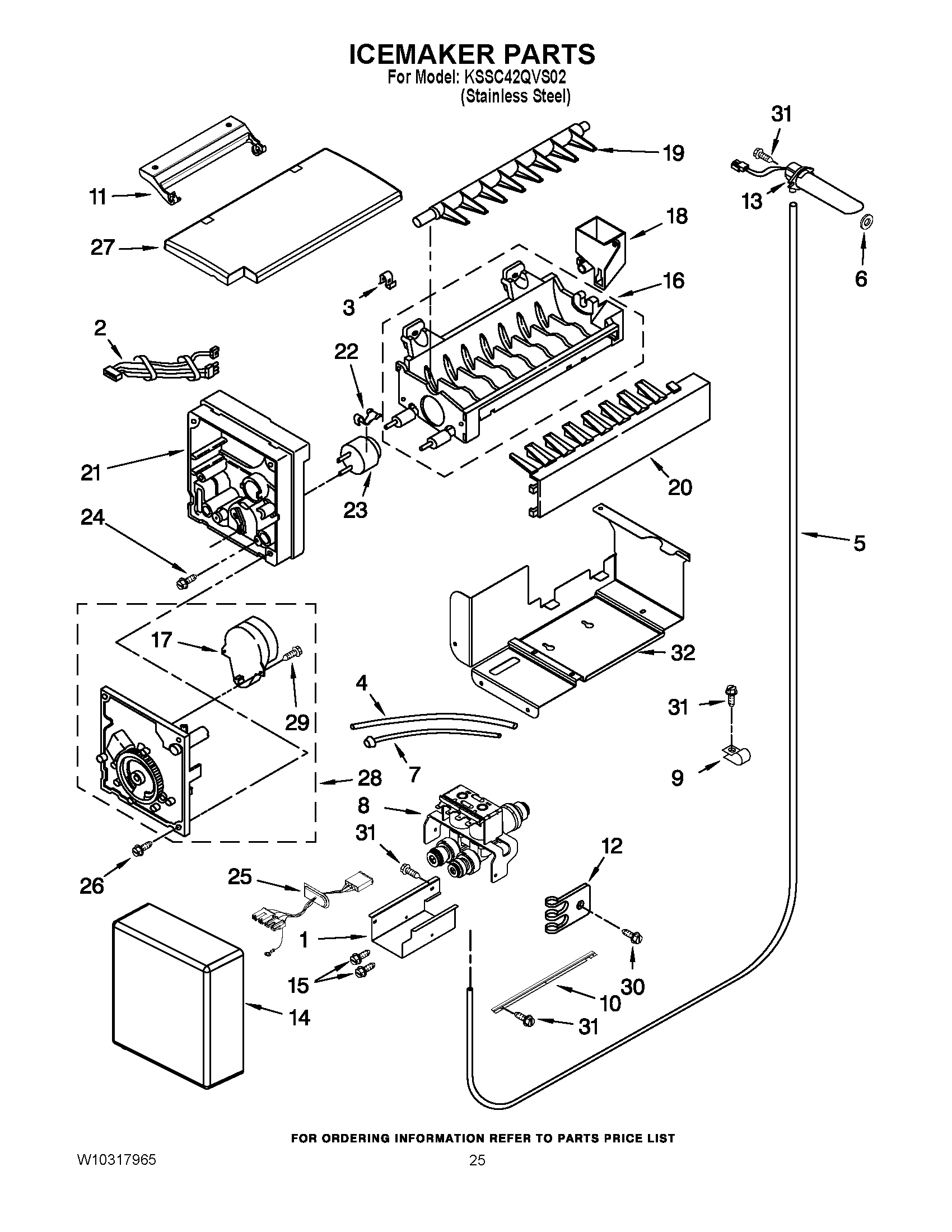

KSSC42QVS02 15 – ICEMAKER PARTS

Products

Position	Product
NI	Cleaner, Stainless Steel
NI	WPW10395657 Whirlpool Refrigerator Ice Container
NI	W10129081 Whirlpool Refrigerator Handle
1	2320601 Whirlpool Refrigerator Shield
2	Wire Assembly, Icemaker
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
5	Water Tube
6	Seal Gasket
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159842 Whirlpool Refrigerator Inlet Valve
9	W10833902 Whirlpool Refrigerator Clamp
10	Support, Valve
11	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
12	WP488366 Whirlpool Refrigerator Clamp
13	W10460127 Whirlpool Refrigerator Inlet Tube
14	Cover
15	WP489128 Whirlpool Refrigerator Screw
16	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
17	CABINET (NOT A SERVICEABLE PART)
18	WP628356 Whirlpool Refrigerator Fill Cup
19	WP627843 Whirlpool Refrigerator Ejector Arm
20	W10297244 Whirlpool Refrigerator Arm Strip
21	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	WP2315522 Whirlpool Refrigerator Clip
23	WP627985 Whirlpool Icemaker Cycling Thermostat
24	8533917 Whirlpool Refrigerator Screw
25	W10139199 Whirlpool Refrigerator Wire Harness
26	WP681249 Whirlpool Screw Assembly
27	WPW10504753 Whirlpool Refrigerator Ice Door
28	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
29	489136 Whirlpool Refrigerator Screw
30	WP489464 Whirlpool Refrigerator Screw
31	W11624204 Whirlpool Screw
32	2252228 Whirlpool Refrigerator Bracket
100	WPW10277448 Whirlpool Icemaker Assembly
