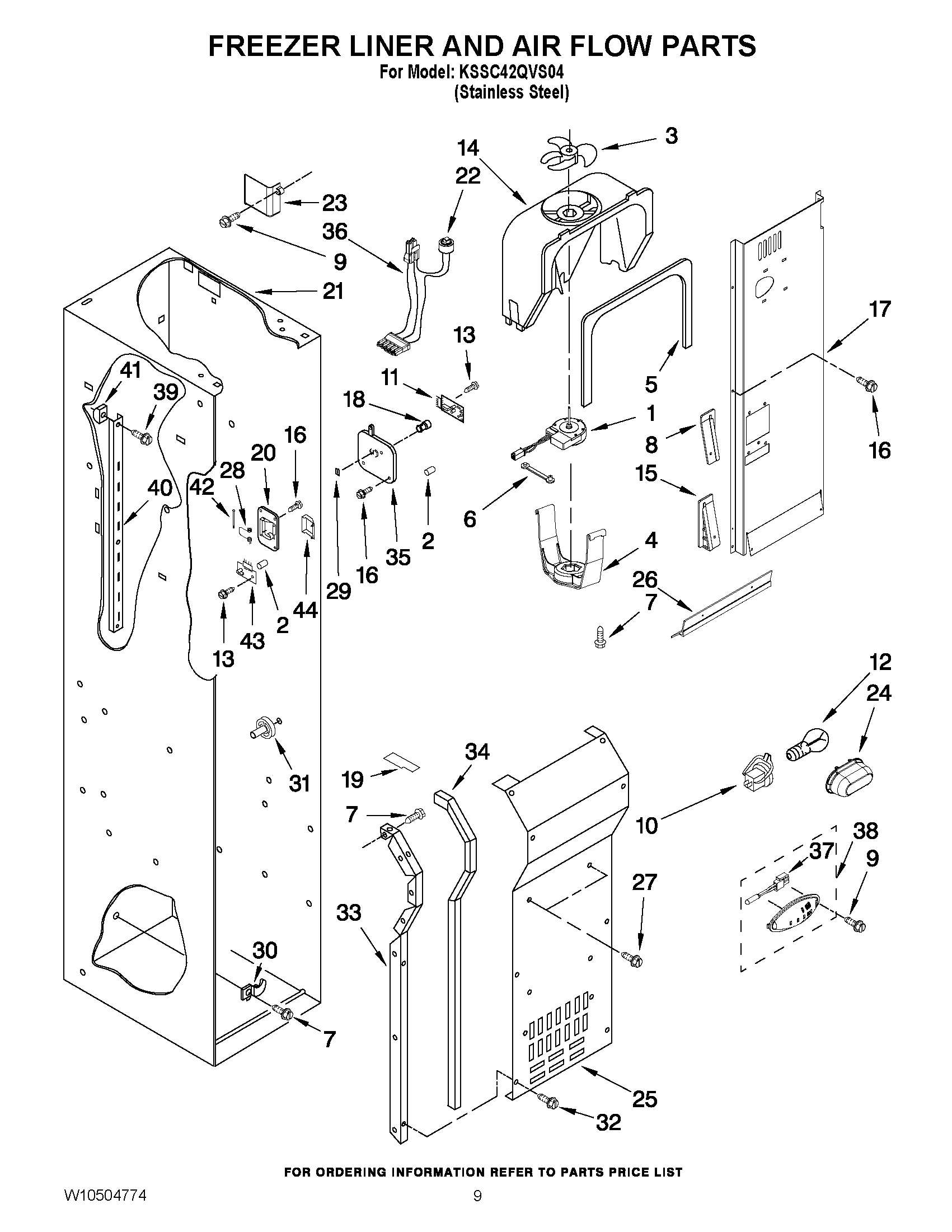

KSSC42QVS04 07 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	W11671461 Whirlpool Evaporator Motor
2	Tube, P.C. Board
3	WP2169142 Whirlpool Fan Blade
4	W11671527 Whirlpool Retainer Assembly
5	WP2302817 Whirlpool Refrigerator Gasket
6	GROMMET, MOTOR
7	W11624204 Whirlpool Screw
8	2259464 Whirlpool Refrigerator Wedge
9	WP488729 Whirlpool Refrigerator Door Screw
10	WPW10191429 Whirlpool Refrigerator Socket
12	WPA3073101 Whirlpool Light Bulb
13	2006254 Whirlpool Refrigerator Screw
14	WP2182120 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
16	WPW10142283 Whirlpool Refrigerator Screw
17	2307774 Whirlpool HVAC Air Duct
18	WP2198643 Whirlpool Refrigerator Lens
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
20	WP2215650 Whirlpool Refrigerator Cover
21	CABINET (NOT A SERVICEABLE PART)
22	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	W10428000 Whirlpool Evaporator Cover
26	2302850 Whirlpool Refrigerator Support
27	Screw 8-15 x 1/2 (White)
28	WP2198635 Whirlpool Refrigerator Spring
29	2255563 Whirlpool Refrigerator Slide
30	1112260 Whirlpool EV Support
31	W11527119 Whirlpool Refrigerator Shelf Stud
32	WP8281163 Whirlpool Refrigerator Screw
33	Evaporator, Cover Rail (Left Side)
33	2259355 Whirlpool Refrigerator Evaporator Rail
34	2220904 Whirlpool Refrigerator Gasket
35	2259493 Whirlpool Refrigerator Cover
36	W10139189 Whirlpool Refrigerator Wire Harness
37	WP2306010 Whirlpool Refrigerator Thermistor
38	WP2317844 Whirlpool Refrigerator Cover
39	2006475 Whirlpool Refrigerator Screw
40	WP2259032 Whirlpool Ladder
41	2259445 Whirlpool Support Assembly
42	WP2198634 Whirlpool Door Pin
43	W10757851-includeCORE Whirlpool Electronic Control+Core
44	WP2198633 Whirlpool Refrigerator Flipper
