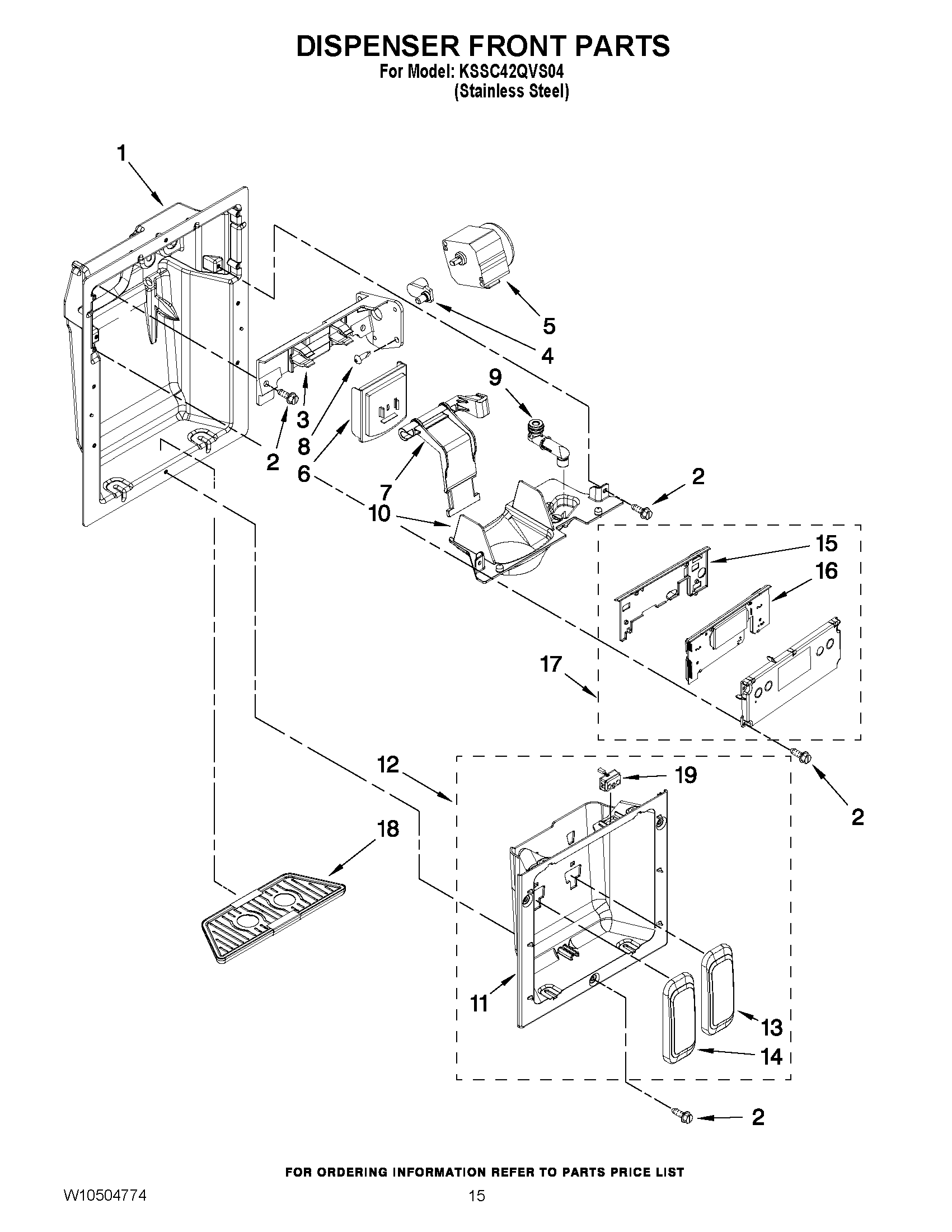

KSSC42QVS04 10 – DISPENSER FRONT PARTS

KSSC42QVS04 10 – DISPENSER FRONT PARTS

Written by

in

KSSC42QVS04 10 – DISPENSER FRONT PARTS

Products

PositionProduct
2WP8281163 Whirlpool Refrigerator Screw
4WP2305242 Whirlpool Refrigerator Connector
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6WPW10504458 Whirlpool Refrigerator Door Chute
7WPW10546285 Whirlpool Refrigerator Motor
8WP4449745 Whirlpool Screw
9WP2305235 Whirlpool Refrigerator Spigot
102318017 Whirlpool Refrigerator Separator
11CABINET (NOT A SERVICEABLE PART)
12WPW10260622 Whirlpool Refrigerator Front Cover
14W10133603 Whirlpool Dispenser Actuator Pad Set
152305219 Whirlpool Refrigerator Cover
16WP2321746 Whirlpool Refrigerator Electronic Control Board
17WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
18W11177738 Whirlpool Refrigerator Drip Tray
19W10222215 Whirlpool Refrigerator Light Indicator
