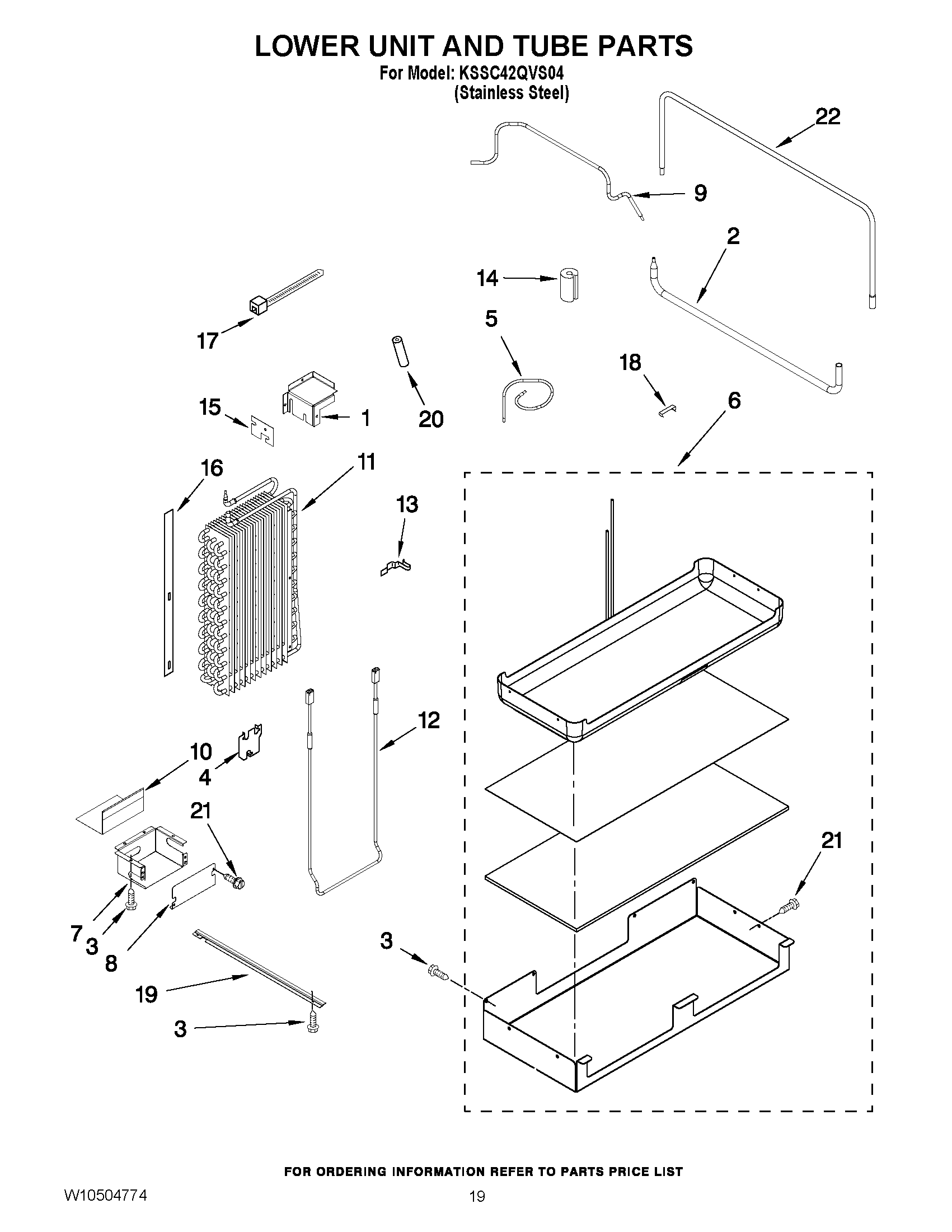

KSSC42QVS04 12 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	Bracket Assembly, Return Air
2	W10388653 Whirlpool Refrigerator Tube
3	W11624204 Whirlpool Screw
4	W10157752 Whirlpool Bracket
5	TUBE, SUCTION
6	WPW10281063 Whirlpool Refrigerator Heater Pan
7	WPW10309012 Whirlpool Wire Cover
8	WIRE BOX COVER
9	W10412488 Whirlpool Refrigerator Tube
10	W10321050 Whirlpool Refrigerator Shield
11	WPW10427992 Whirlpool Refrigerator Evaporator
12	W10140161 Whirlpool Refrigerator Heater
13	1113048 Whirlpool Refrigerator Clamp
14	W11715935 Whirlpool Dampener
15	W10139908 Whirlpool Seal
16	W10432308 Whirlpool Gasket
17	WPW10339879 Whirlpool Wire Tie
18	W10169509 Whirlpool Refrigerator Clip
19	2320554 Whirlpool Bracket
20	2215648 Whirlpool Refrigerator Dampener
21	WP489069 Whirlpool Compactor Screw
22	W10234131 Whirlpool Refrigerator Tube
