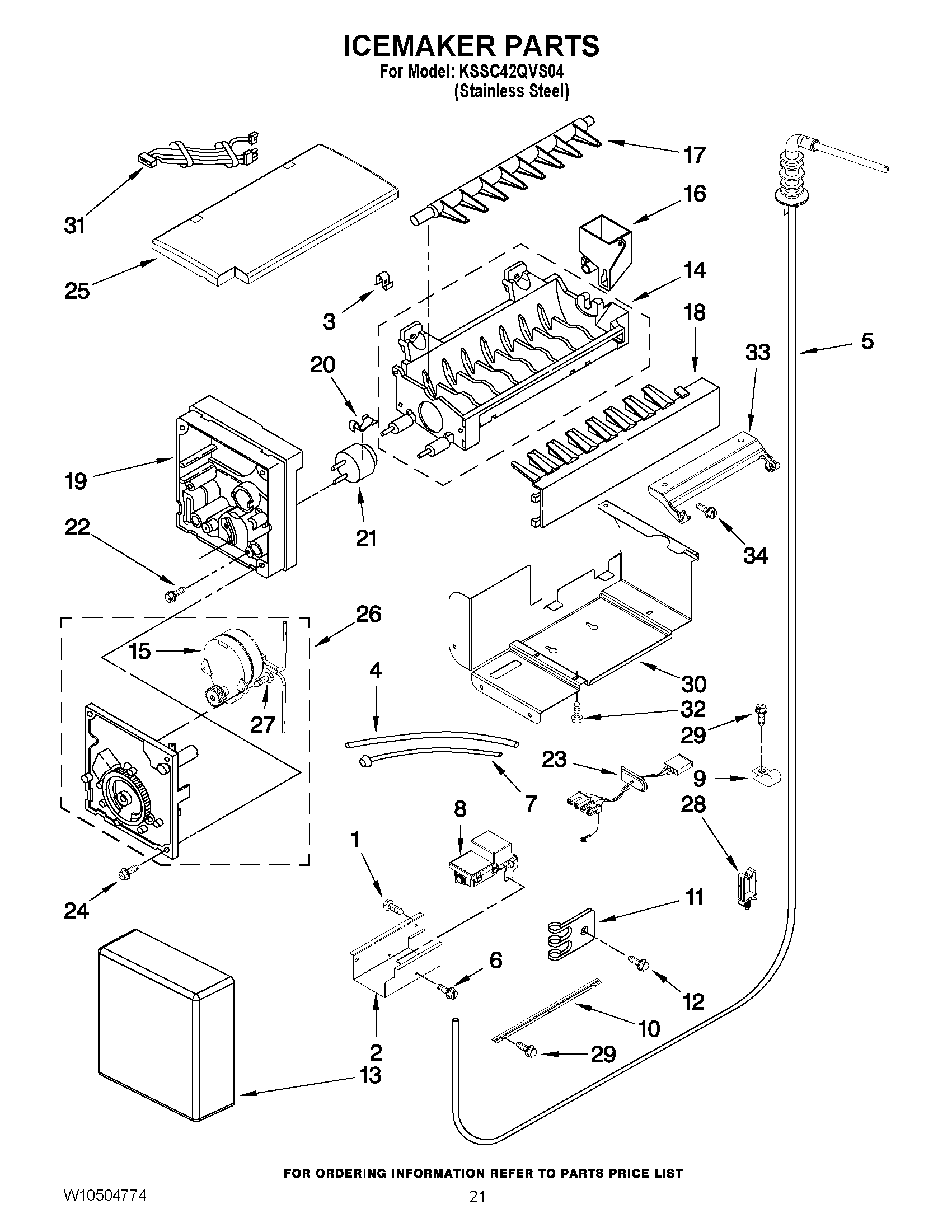

KSSC42QVS04 13 – ICEMAKER PARTS

Products

Position	Product
NI	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
NI	ACCESSORIES, KITCHEN & APPLIANCE CLEANER
NI	ACCESSORIES, SS CLEANER
1	WP489069 Whirlpool Compactor Screw
2	2320601 Whirlpool Refrigerator Shield
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
5	W11212166 Whirlpool Refrigerator Inlet Tube
6	WP489128 Whirlpool Refrigerator Screw
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159842 Whirlpool Refrigerator Inlet Valve
9	W10833902 Whirlpool Refrigerator Clamp
10	Support, Valve
11	WP488366 Whirlpool Refrigerator Clamp
12	SCREW
13	WPW10289690 Whirlpool Ice Maker Cover
14	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
15	CABINET (NOT A SERVICEABLE PART)
16	WPW10272168 Whirlpool Refrigerator Water Fill Cup
17	WP627843 Whirlpool Refrigerator Ejector Arm
18	WPW10272161 Whirlpool Refrigerator Stripper Arm
19	WP2195914 Whirlpool Refrigerator Ice Maker Housing
20	WP2315522 Whirlpool Refrigerator Clip
21	WP627985 Whirlpool Icemaker Cycling Thermostat
22	W10001280 Whirlpool Refrigerator Screw
23	W10279391 Whirlpool Refrigerator Wire Harness
24	WP681249 Whirlpool Screw Assembly
25	WPW10504753 Whirlpool Refrigerator Ice Door
26	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
27	489136 Whirlpool Refrigerator Screw
28	CLIP, TUBE
29	W11624204 Whirlpool Screw
30	2252228 Whirlpool Refrigerator Bracket
31	Wire Assembly, Icemaker
32	WP489464 Whirlpool Refrigerator Screw
33	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
34	WP488729 Whirlpool Refrigerator Door Screw
100	WPW10277448 Whirlpool Icemaker Assembly
