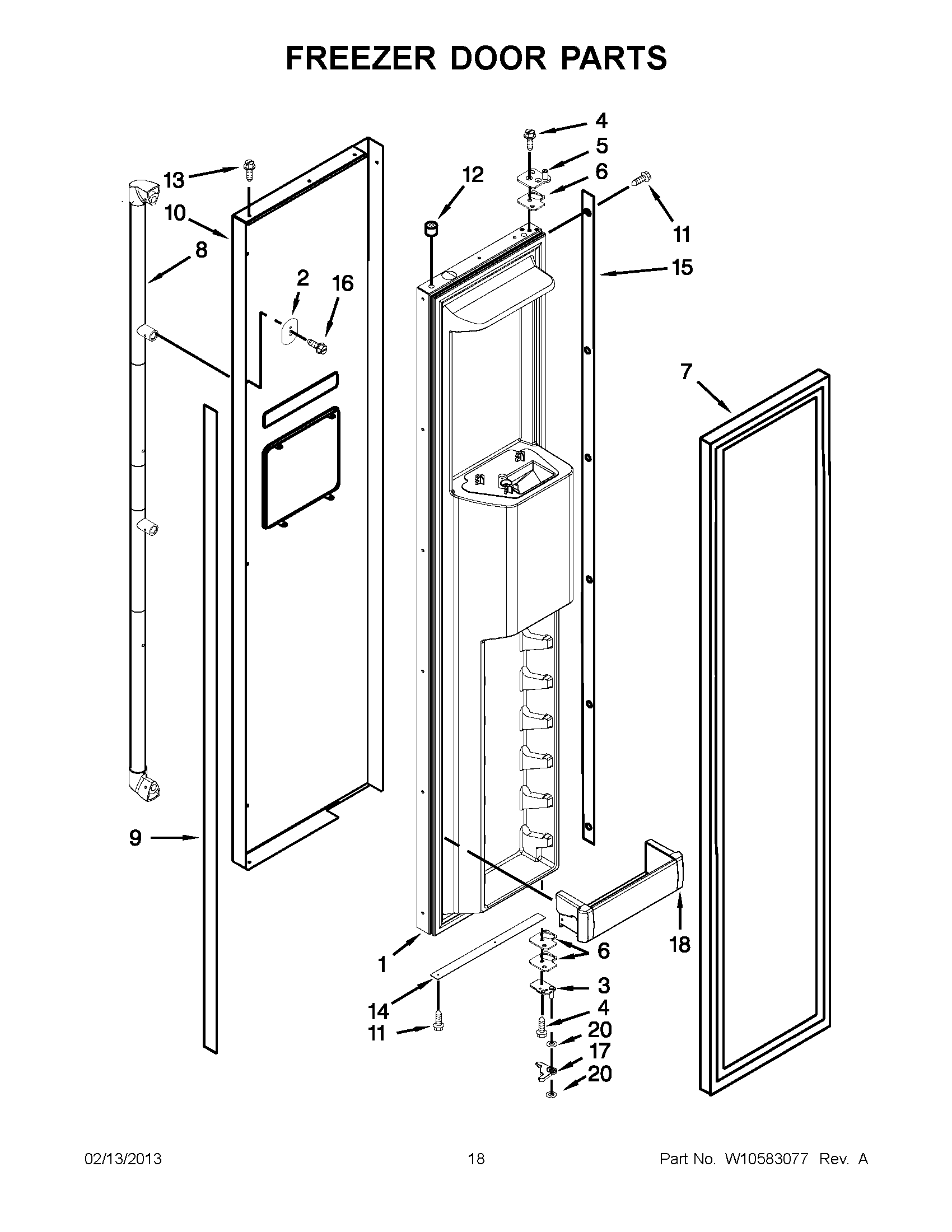

KSSC42QVS05 09 – FREEZER DOOR PARTS

KSSC42QVS05 09 – FREEZER DOOR PARTS

Written by

in

KSSC42QVS05 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.13) (UNIVERSAL SILVER)
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door (Handle Side)
10SKIN, DOOR (STAINLESS)
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
142257385 Whirlpool Refrigerator Spacer
15SPACER, DOOR-SKIN (HINGE SIDE)
16WP308544 Whirlpool Screw
17W11700297 Whirlpool Refrigerator Gap Hinge
18W10323602 Whirlpool Refrigerator Cantilever Bin
20WP2006346 Whirlpool Refrigerator Washer
