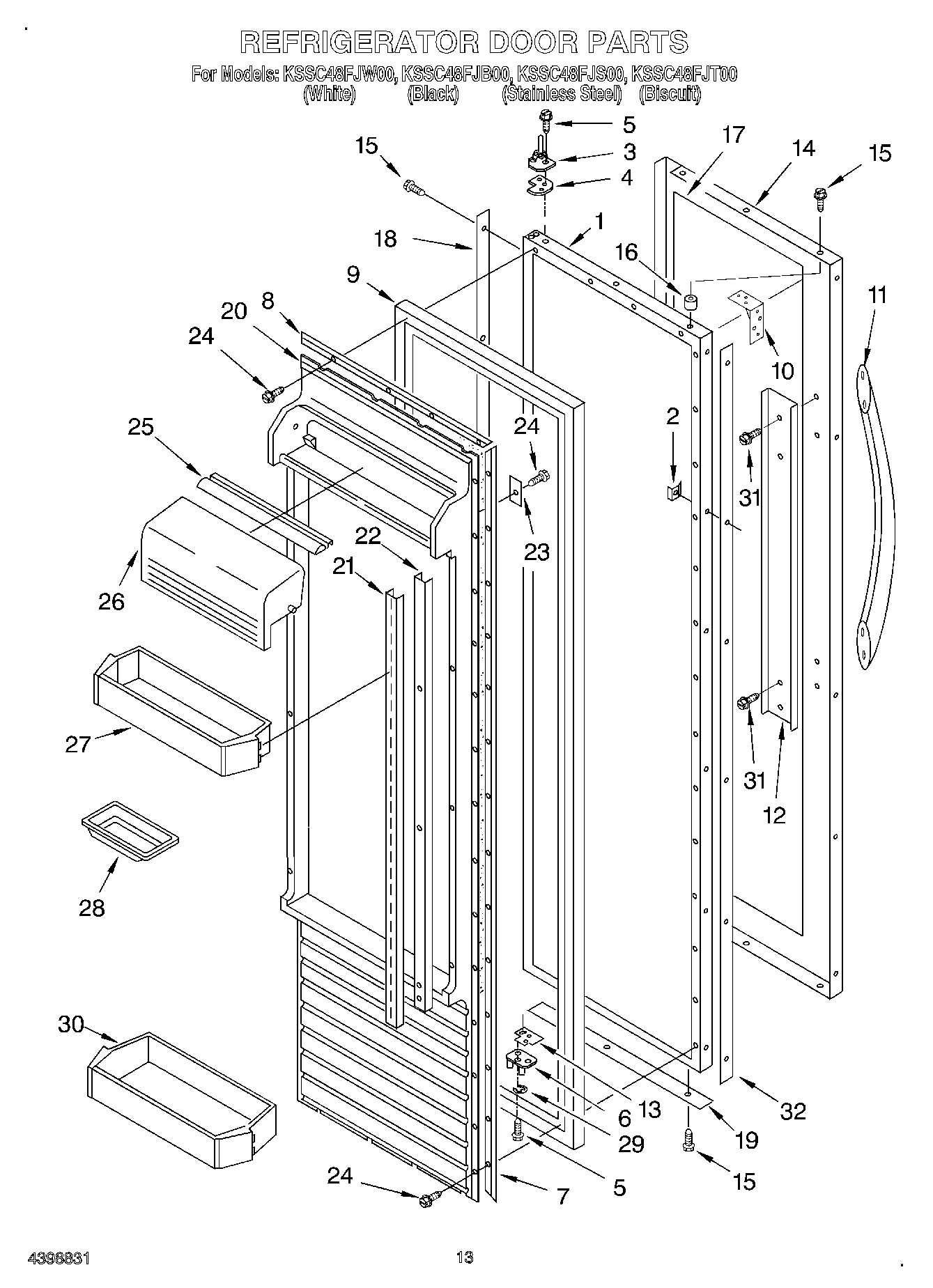

KSSC48FJB00 10 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
2	WP939101 Whirlpool Refrigerator Plate
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	WP2004523 Whirlpool Refrigerator Door Hinge
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188321A Whirlpool Refrigerator Door Gasket
10	Door Brace, Corner
11	Handle, Door (Black)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
11	Handle, Door (Stainless Steel)
12	Plate, Handle
13	Door, Spacer
14	Door Skin (Black)
14	Skin, Door (Biscuit)
14	Skin, Door (White)
14	Door Skin
15	Screw
15	WP488729 Whirlpool Refrigerator Door Screw
15	Screw (White)
15	Screw (Biscuit)
16	2005433 Whirlpool Refrigerator Spacer
17	Filler, Door
18	Spacer, Hinge Side
19	WP2257343 Whirlpool Spacer Assembly
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Gasket Utility Door
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
29	Retaining Ring, Door-Closure
30	Shelf, Gallon Door
31	WP308544 Whirlpool Screw
32	Spacer, Handle Side
