KSSC48FJB00 11 – FREEZER DOOR
Written by
in

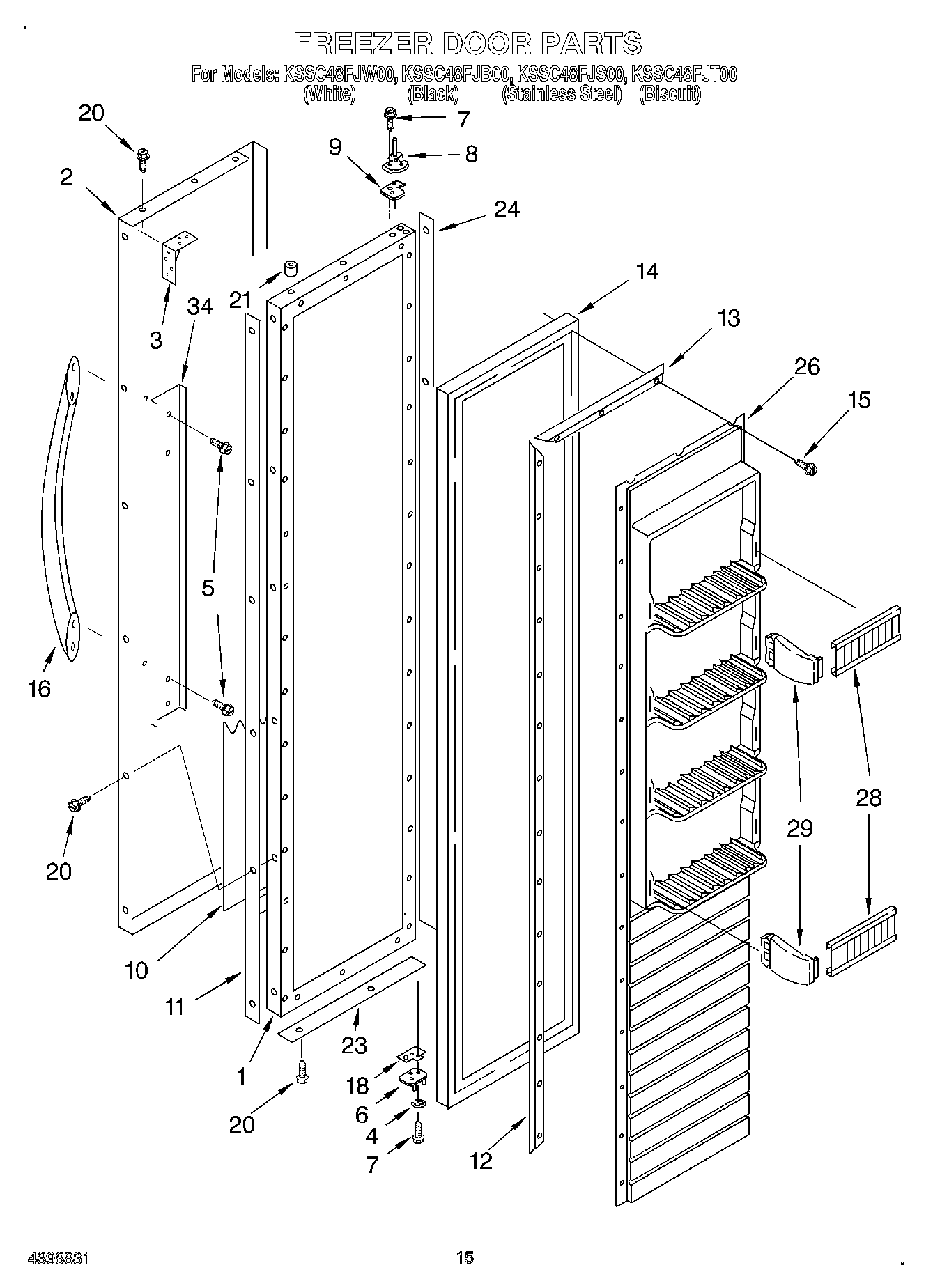

KSSC48FJB00 11 – FREEZER DOOR
Products
Position
Product
1
Freezer Door Panel (Includes Insulation)
2
Skin, Door (White)
2
Skin, Door (Biscuit)
2
Skin, Door (Black)
2
Skin, Door (Stainless Steel)
3
Door Brace, Corner
4
Retaining Ring, Door-Closure
5
WP308544 Whirlpool Screw
6
Hinge, Bottom
7
W11474472 Whirlpool Screw
8
Hinge, Top
9
Spacer-Hinge, Top
10
Filler, Door
11
Spacer, Handle Side
12
Gasket Retainer, Side (2)
13
Gasket Retainer, Top & Bottom
14
2188319A Whirlpool Refrigerator Door Gasket
15
W11624204 Whirlpool Screw
16
Handle, Door (Black)
16
Handle, Door (Stainless Steel)
16
Handle, Door (White)
16
Handle, Door (Biscuit)
18
Door, Spacer
20
Screw (Biscuit)
20
Screw (White)
20
Screw
20
WP488729 Whirlpool Refrigerator Door Screw
21
2005433 Whirlpool Refrigerator Spacer
23
WP2257333 Whirlpool Spacer
24
Spacer, Hinge Side
26
Panel, Interior Door
28
Trim, Door Shelf
29
Trim, End Cap (Right Side)
29
Trim, Endcap (Left Side)
34
Plate, Handle
←
