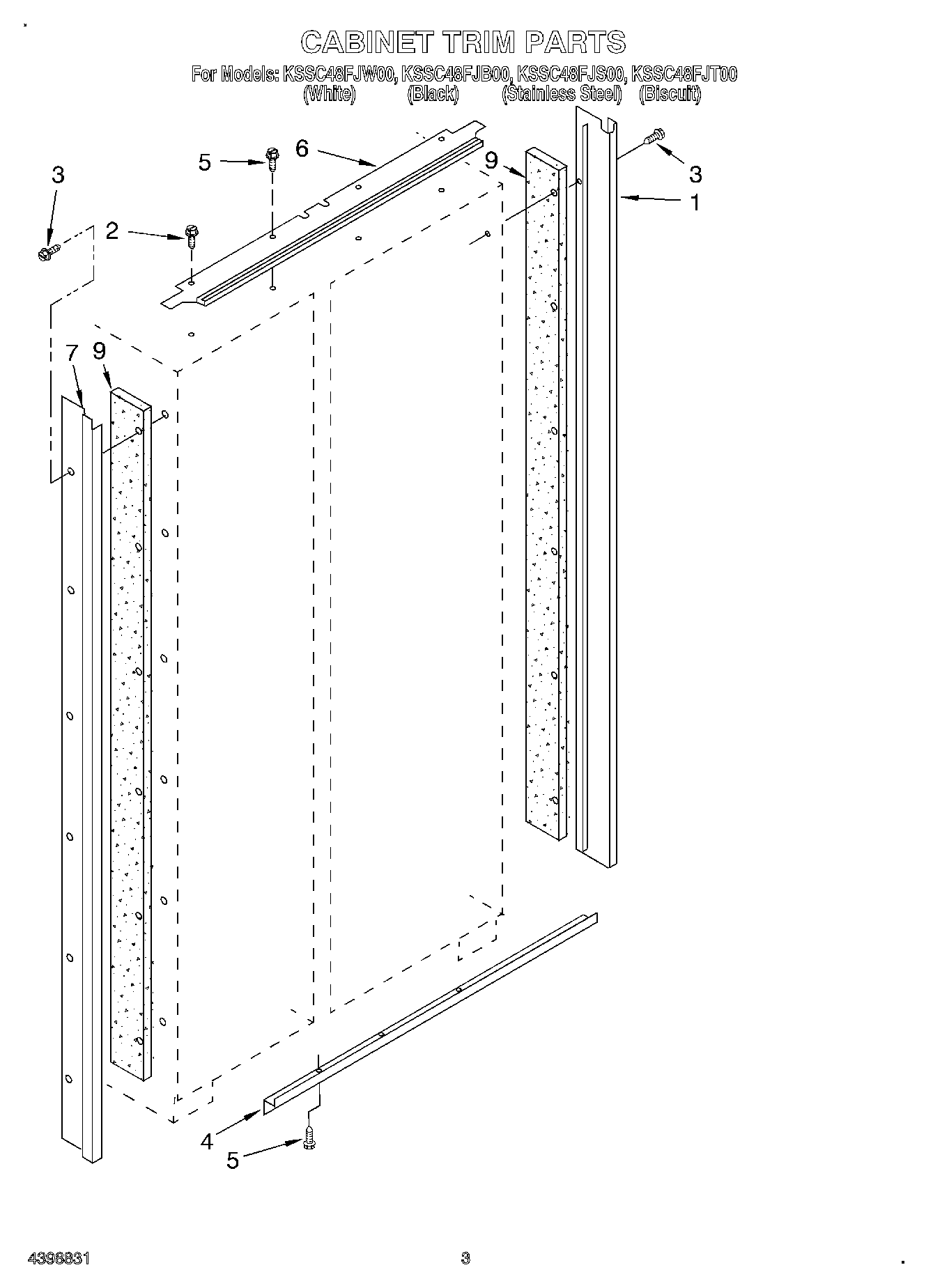

KSSC48FJS00 02 – CABINET TRIM

KSSC48FJS00 02 – CABINET TRIM

Written by

in

KSSC48FJS00 02 – CABINET TRIM

Products

PositionProduct
1Cabinet, Trim Right Side (Black)
1Cabinet, Trim Right Side (Biscuit)
1Cabinet, Trim Right Side (White)
1Trim, Cabinet Right Side (Stainless Steel)
2Screw
3WP1163283 Whirlpool Air Conditioner Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Cabinet, Trim Left Side (Biscuit)
7Cabinet, Trim Left Side (White)
7Trim, Cabinet Left Side (Stainless Steel)
7Cabinet, Trim Left Side (Black)
9Seal, Side Trim
