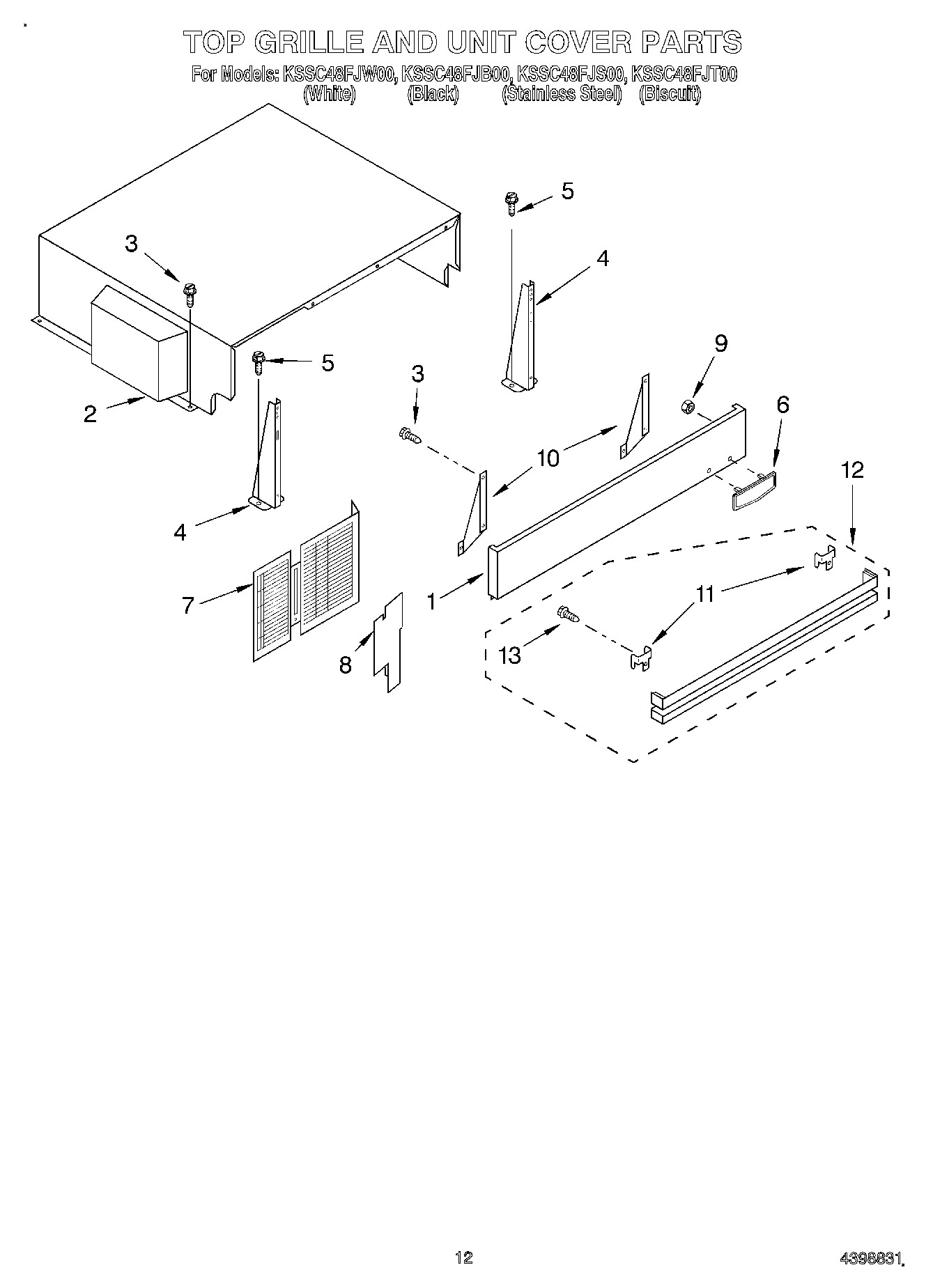

KSSC48FJW00 09 – TOP GRILLE AND UNIT COVERadmin2025-04-26T12:31:36+00:00KSSC48FJW00 09 – TOP GRILLE AND UNIT COVER
Products
| Position | Product |
|---|
| 1 | Top Grille Assembly (White) |
| 1 | Top Grille Assembly (Biscuit) |
| 1 | Top Grille Assembly (Black) |
| 1 | Top Grille Assembly (Stainless Steel) |
| 2 | Cover, Unit |
| 3 | W11624204 Whirlpool Screw |
| 4 | Grille, Bracket |
| 5 | WP8204624 Whirlpool Bolt |
| 6 | Nameplate (White) |
| 6 | Nameplate (Black) |
| 6 | Nameplate (Biscuit) |
| 7 | Guard, Compressor Wiring |
| 8 | Baffle-Air, Condenser |
| 9 | WP2004333 Whirlpool Refrigerator Nut |
| 10 | Bracket, Trim Panel |
| 11 | Louver, Bracket |
| 12 | Vent, Louver (Biscuit) |
| 12 | Vent, Louver (White) |
| 12 | Vent, Louver |
| 12 | Vent, Louver (Black) |
| 13 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
