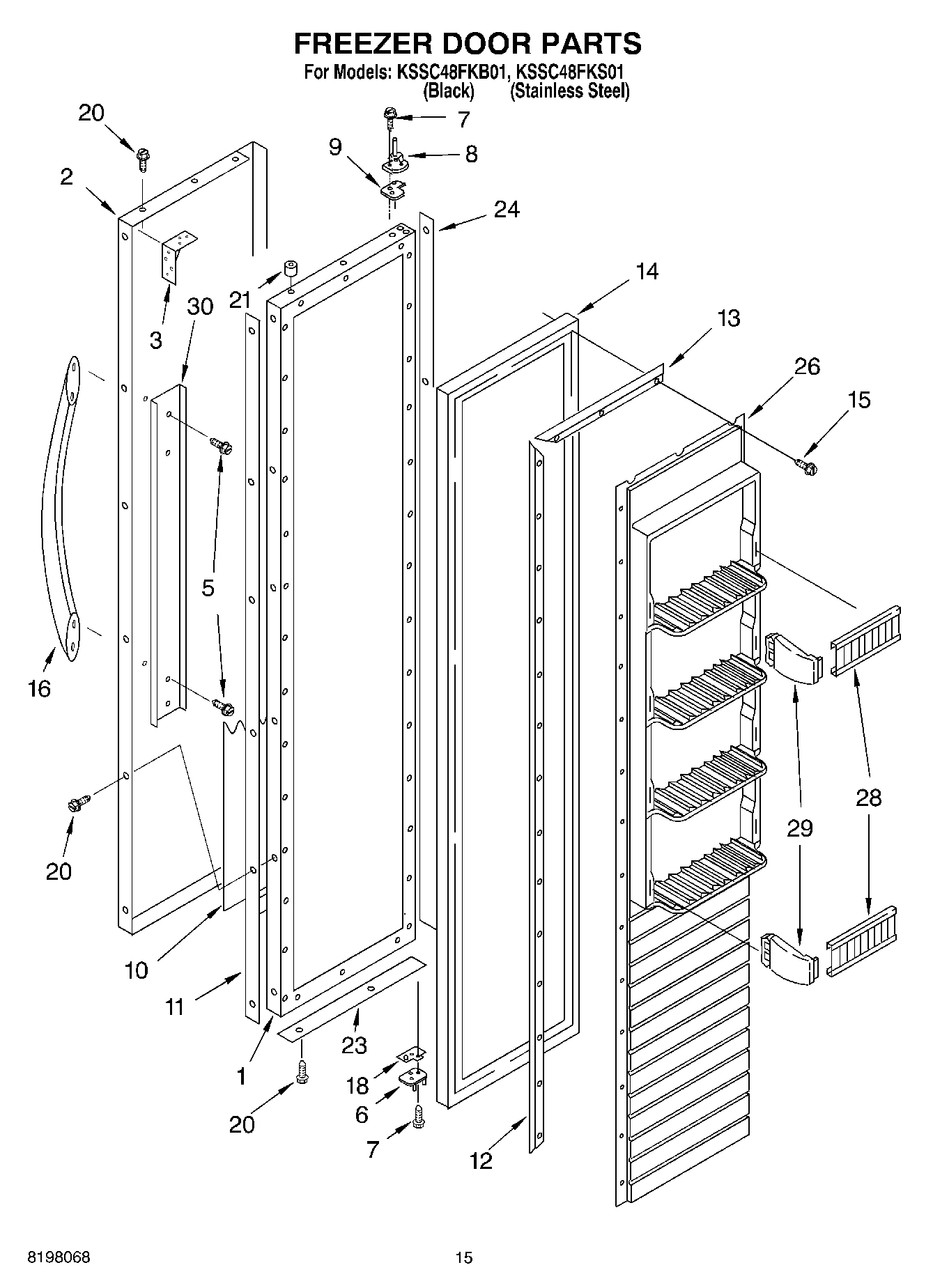

KSSC48FKB01 10 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel
2	Skin, Door (Black)
2	Skin, Door (Stainless Steel)
3	Door Brace, Corner
5	WP308544 Whirlpool Screw
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
10	Filler, Door
11	Spacer, Handle Side
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (Black)
16	Handle, Door (Stainless Steel)
18	Door, Spacer
20	W10851443 Whirlpool Refrigerator Screw
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
23	WP2257333 Whirlpool Spacer
24	Spacer, Hinge Side
26	Panel, Interior Door
28	Trim, Door Shelf
29	Trim, End Cap (Right Side)
29	Trim, Endcap (Left Side)
30	Plate, Handle
