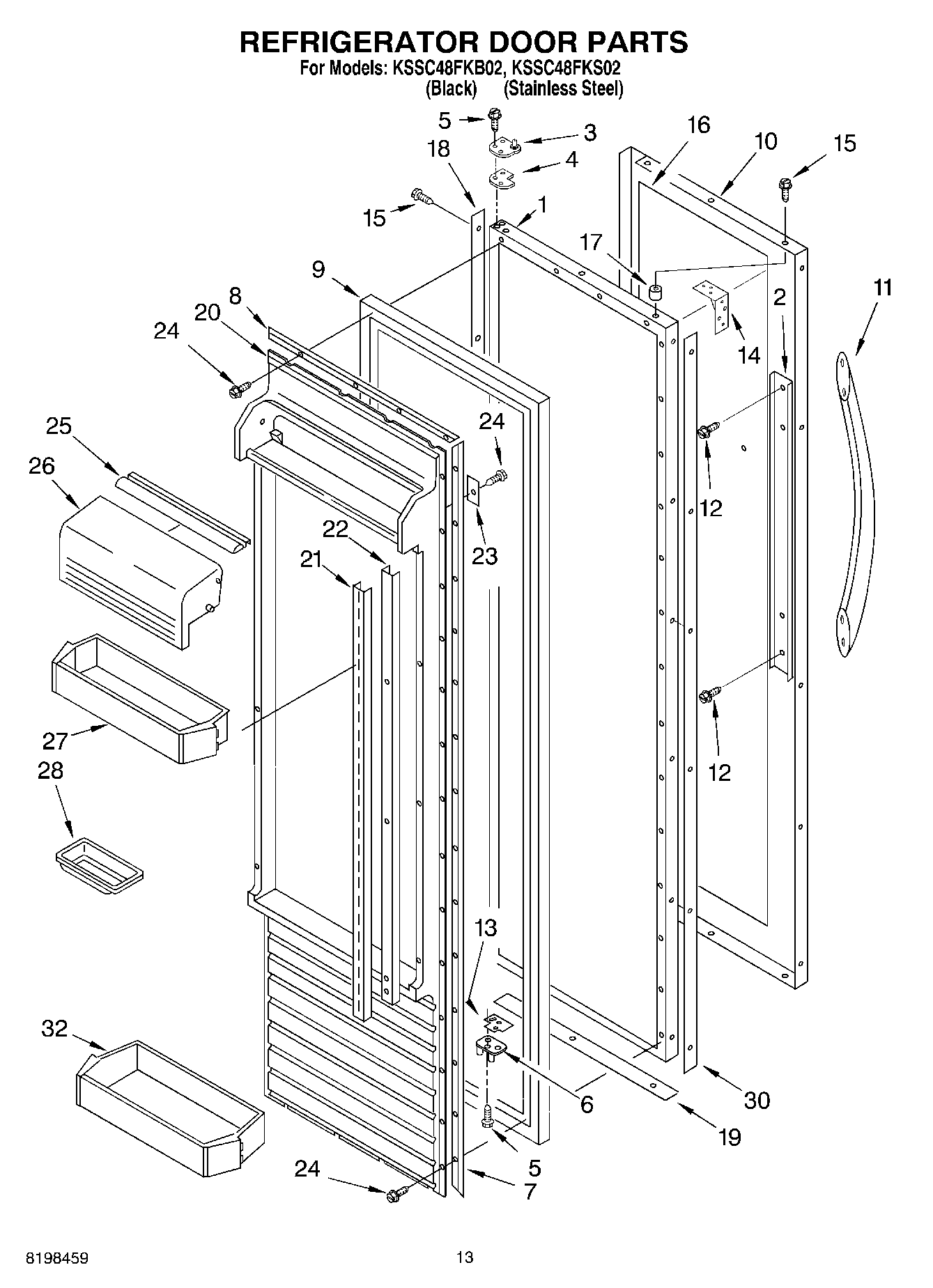

KSSC48FKB02 09 – REFRIGERATOR DOOR PARTS

KSSC48FKB02 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC48FKB02 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation)
2Plate, Handle
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
9Door Gasket, Magnetic
10Door Skin
10Door Skin (Black)
11Handle, Door (Black)
11Handle, Door (Stainless Steel)
12WP308544 Whirlpool Screw
13Door Spacer, Bottom
14BRACE, DOOR CORNER
15WP8281250 Whirlpool Refrigerator Screw
15W10851443 Whirlpool Refrigerator Screw
16Filler, Door
172005433 Whirlpool Refrigerator Spacer
18Spacer, Hinge Side
19WP2257343 Whirlpool Spacer Assembly
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
25Gasket Utility Door
26Door, Utility Bin
27Door Shelf (3)
28Butter Tray
30Spacer, Handle Side
32Shelf, Gallon Door
