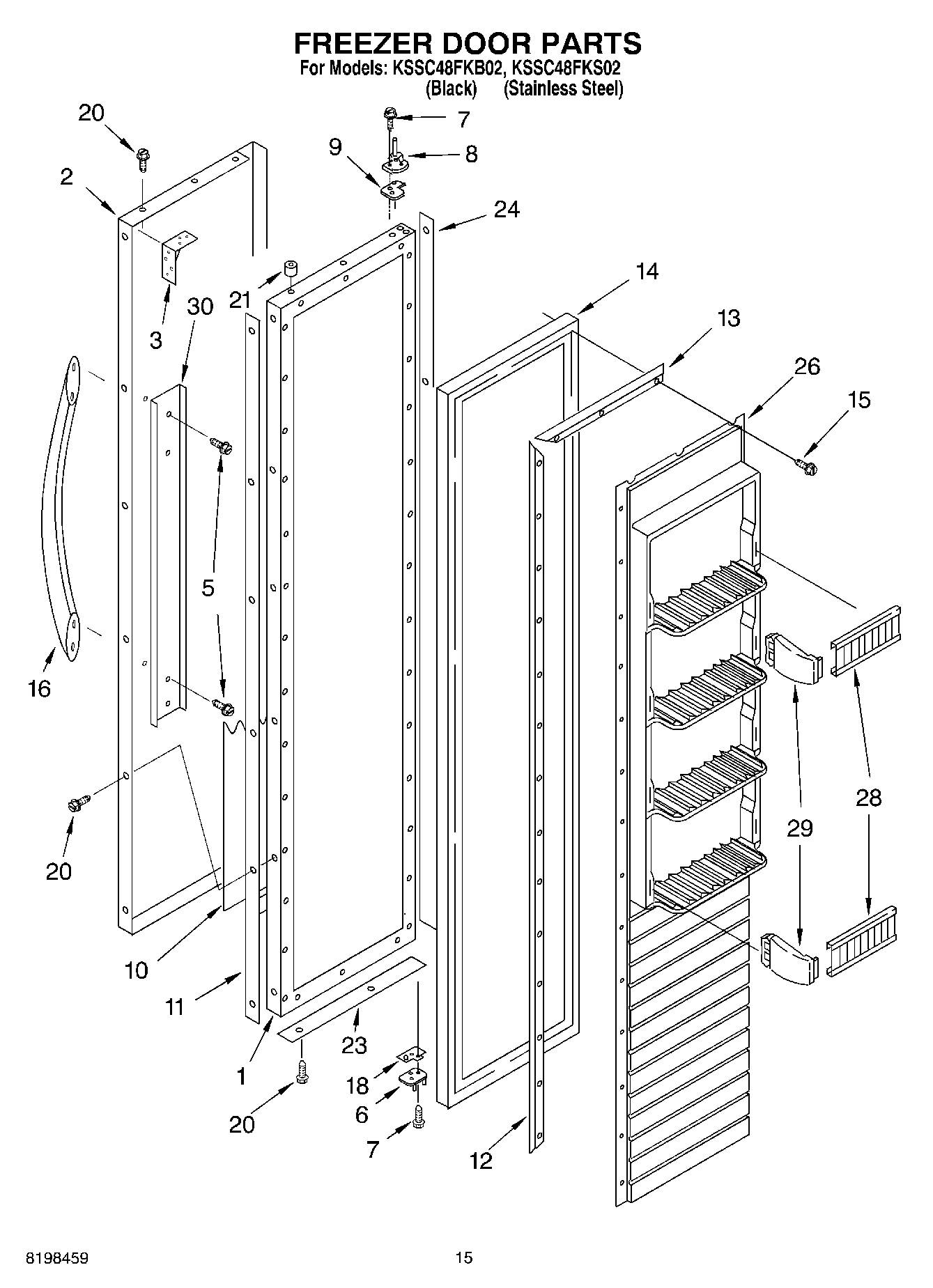

KSSC48FKB02 10 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Skin, Door (Black)
2Skin, Door (Stainless Steel)
3BRACE, DOOR CORNER
5WP308544 Whirlpool Screw
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
10Filler, Door
11Spacer, Handle Side
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15W11624204 Whirlpool Screw
16Handle, Door (Stainless Steel)
16Handle, Door (Black)
18Door Spacer, Bottom
20W10851443 Whirlpool Refrigerator Screw
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
23WP2257333 Whirlpool Spacer
24Spacer, Hinge Side
26Panel, Interior Door
28Trim, Door Shelf
29Trim, End Cap (Right Side)
29Trim, Endcap (Left Side)
30Plate, Handle
