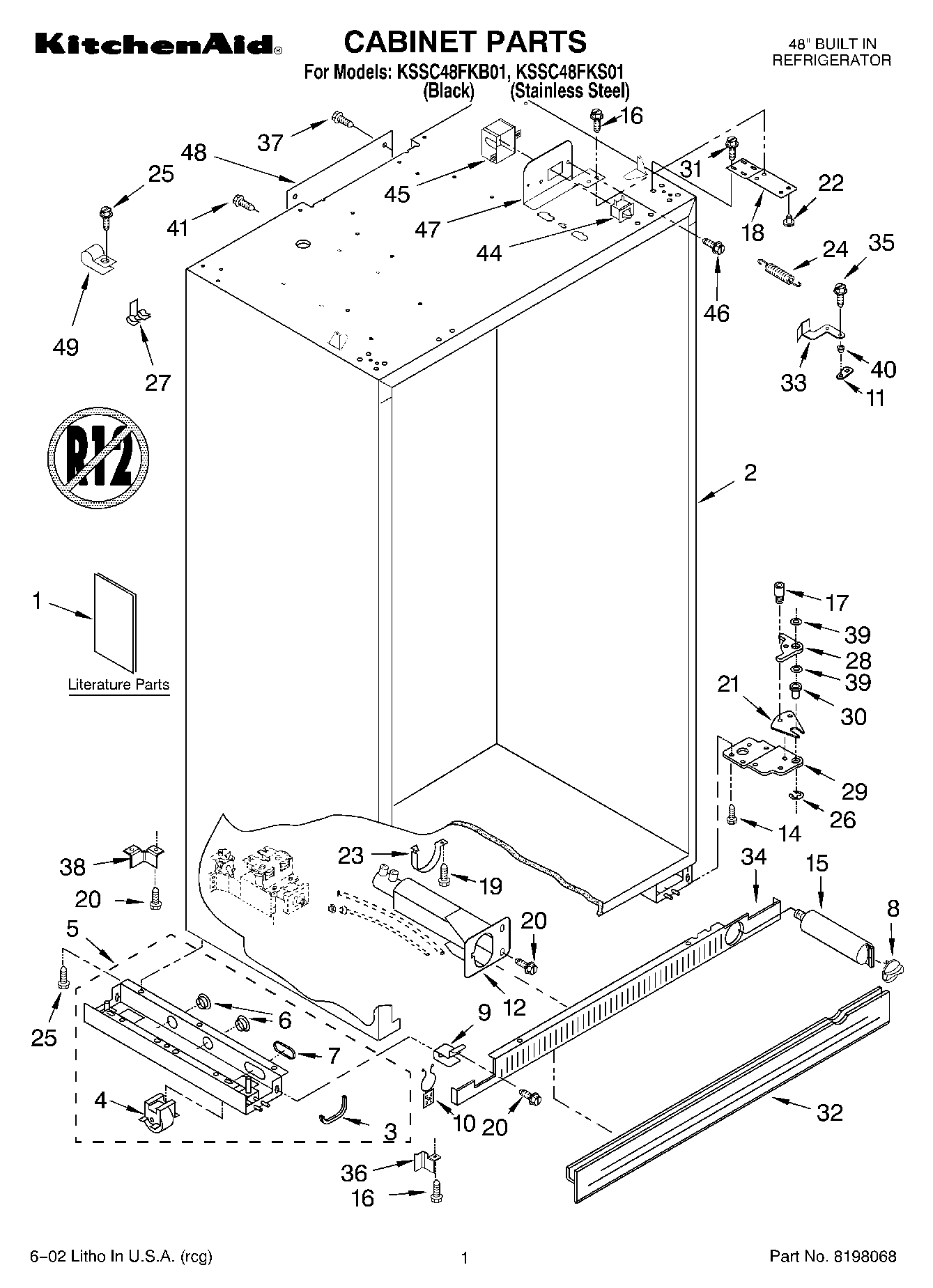

KSSC48FKS01 01 – CABINET, LITERATUREadmin2025-04-26T12:33:02+00:00KSSC48FKS01 01 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Energy Label) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Modular Icemaker Service Sheet |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Service & Wiring Sheet) |
| 2 | Cabinet (Not A Serviceable Part) |
| 3 | Grommet, Crossover Tube |
| 4 | WPW10138054 Whirlpool Refrigerator Cabinet Roller |
| 5 | W10860229 Whirlpool Refrigerator Support |
| 5 | W10860448 Whirlpool Refrigerator Support |
| 6 | Grommet, Wiring |
| 7 | Grommet, Flexible |
| 8 | WP2186494B Whirlpool Refrigerator Filter Cap |
| 9 | Mounting Bracket, Grill |
| 10 | Clip, Wire |
| 11 | Cam-Closer, Door |
| 12 | WP2209022 Whirlpool Refrigerator Housing |
| 14 | Screw |
| 15 | EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink) |
| 16 | WP489399 Whirlpool Refrigerator Screw |
| 17 | WP2005378 Whirlpool Refrigerator Screw |
| 18 | 2257644 Whirlpool Refrigerator Door Hinge |
| 19 | WP489478 Whirlpool Refrigerator Screw |
| 20 | WP489464 Whirlpool Refrigerator Screw |
| 21 | WP2004994 Whirlpool Refrigerator Hinge Bushing |
| 22 | Bushing |
| 23 | Clamp, Filter Housing |
| 24 | WP2004517 Whirlpool Refrigerator Spring |
| 25 | W11624204 Whirlpool Screw |
| 26 | WP489236 Whirlpool Refrigerator Ring |
| 27 | Fastener (3) |
| 28 | Gap, Cover Assembly (Bottom) |
| 29 | W10527053 Whirlpool Refrigerator Door Hinge |
| 29 | WP2006780 Whirlpool Refrigerator Door Hinge |
| 30 | WP2302876 Whirlpool Refrigerator Hinge Bushing |
| 31 | WP8204624 Whirlpool Bolt |
| 32 | Skirt-Grille, Bottom |
| 33 | WPW10121046 Whirlpool Refrigerator Extension |
| 33 | WP2307857 Whirlpool Refrigerator Extension |
| 34 | Grille Bottom, Front |
| 35 | Screw |
| 36 | 2006616 Whirlpool Refrigerator Bracket |
| 36 | 2006556 Whirlpool Refrigerator Bracket |
| 37 | WP489069 Whirlpool Compactor Screw |
| 38 | 2006617 Whirlpool Refrigerator Bracket |
| 39 | WP2006346 Whirlpool Refrigerator Washer |
| 40 | WP2316859 Whirlpool Refrigerator Bushing |
| 41 | WP1163283 Whirlpool Air Conditioner Screw |
| 44 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 44 | W11384469 Whirlpool Door Switch |
| 45 | 2215938 Whirlpool Refrigerator Switch Cover |
| 46 | WP965173 Whirlpool Dishwasher Screw |
| 47 | 2221096 Whirlpool Refrigerator Bracket |
| 47 | 2221097 Whirlpool Refrigerator Bracket |
| 48 | WPL 2209449 |
| 49 | W10833902 Whirlpool Refrigerator Clamp |
