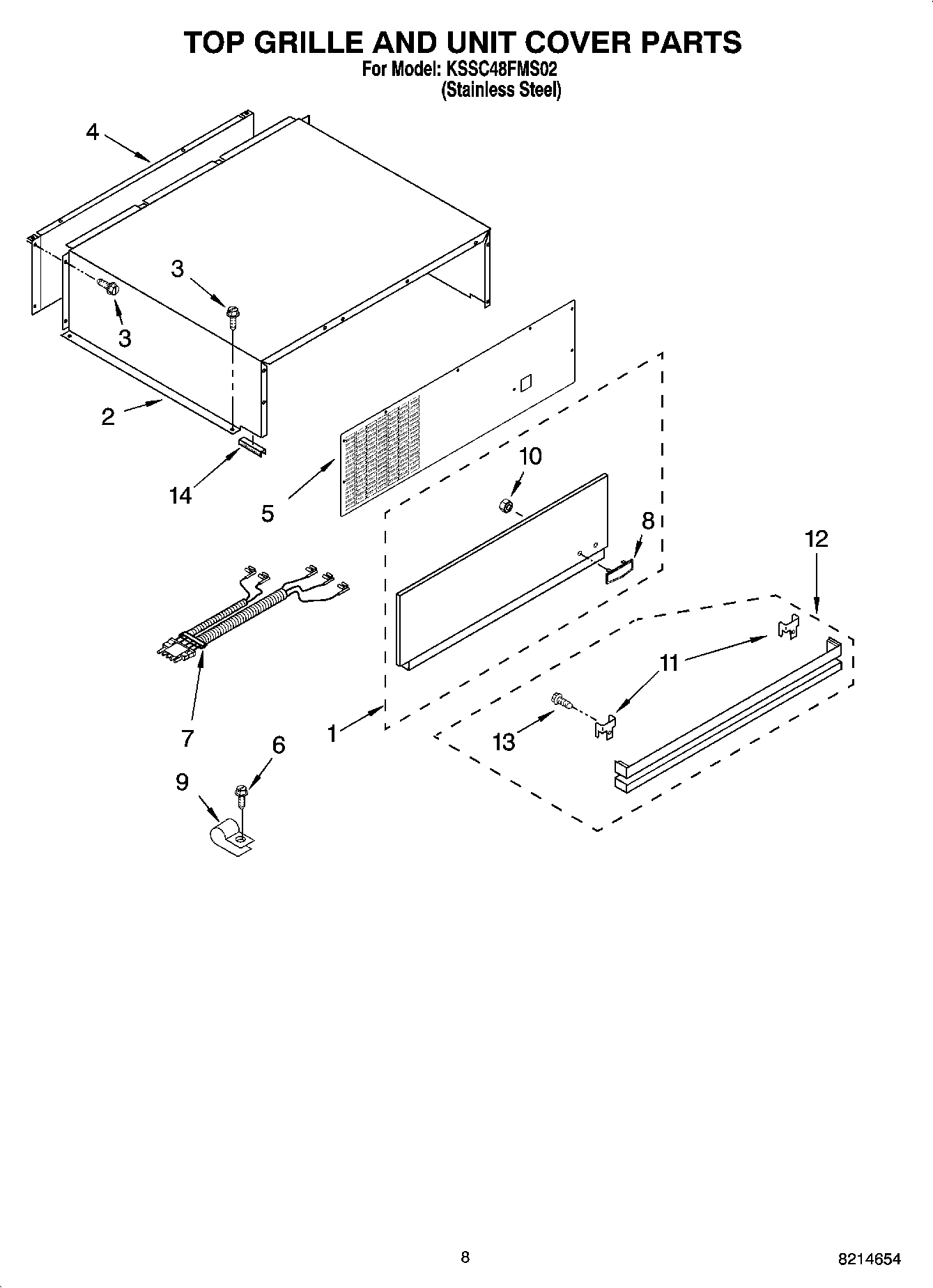

KSSC48FMS02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorator
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
8Nameplate (Black)
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
11Bracket, Louver
12Grille, Louver
13303776 Whirlpool Dishwasher Screw
142215910 Whirlpool Refrigerator Grommet
