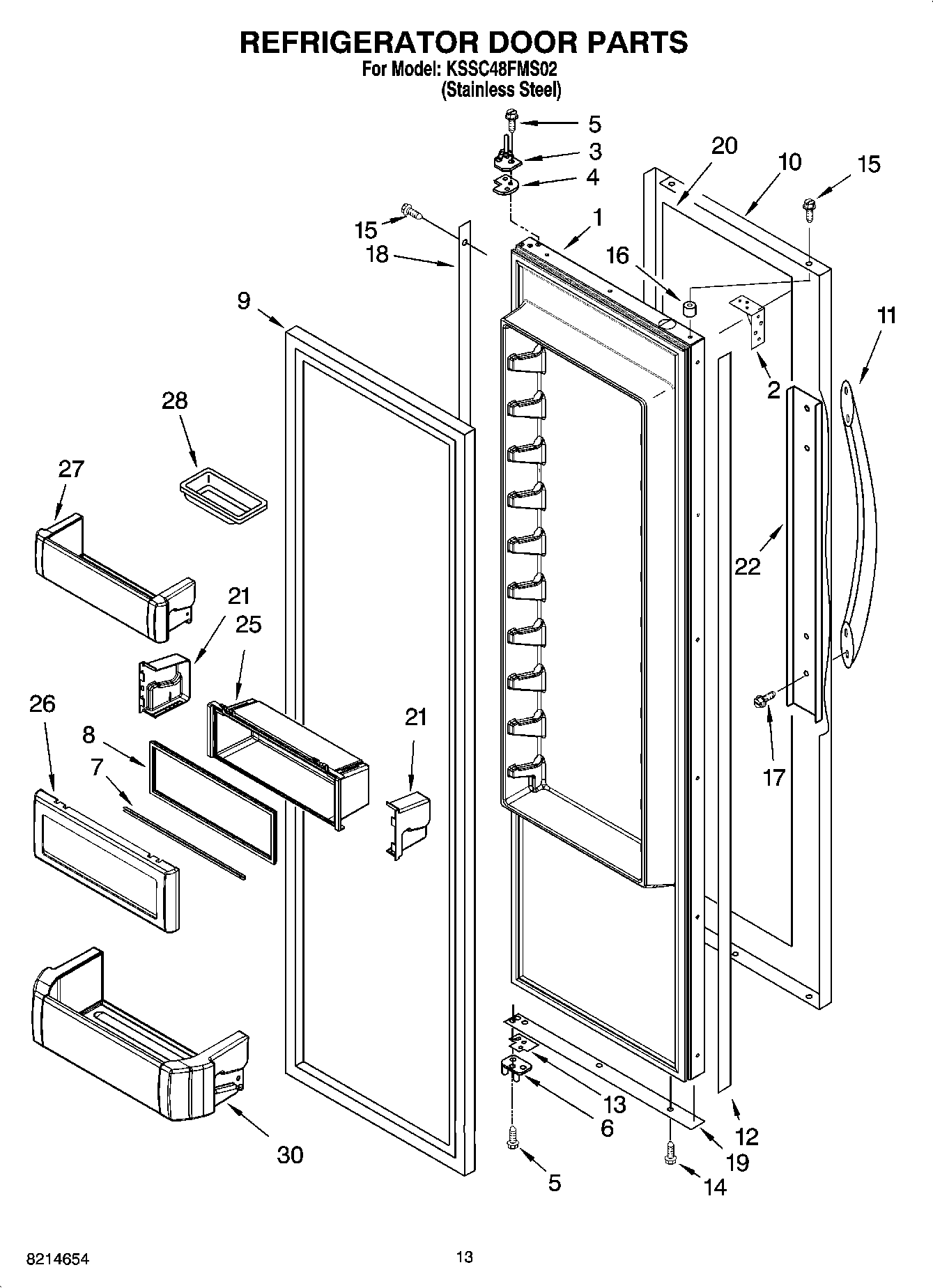

KSSC48FMS02 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	BRACE, DOOR CORNER
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	Skin, Door
11	Handle, Door (Stainless Steel)
12	Spacer, Door (Handle Side)
13	Door Spacer, Bottom
14	W10759522 Whirlpool Screw
15	WP8281250 Whirlpool Refrigerator Screw
16	2005433 Whirlpool Refrigerator Spacer
17	WP308544 Whirlpool Screw
18	Spacer, Hinge Side
19	WP2257343 Whirlpool Spacer Assembly
20	Filler, Door
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
22	Plate, Handle
27	BIN-CNTLVR
28	Butter Tray
30	W10323748 Whirlpool Refrigerator Cantilever Bin
