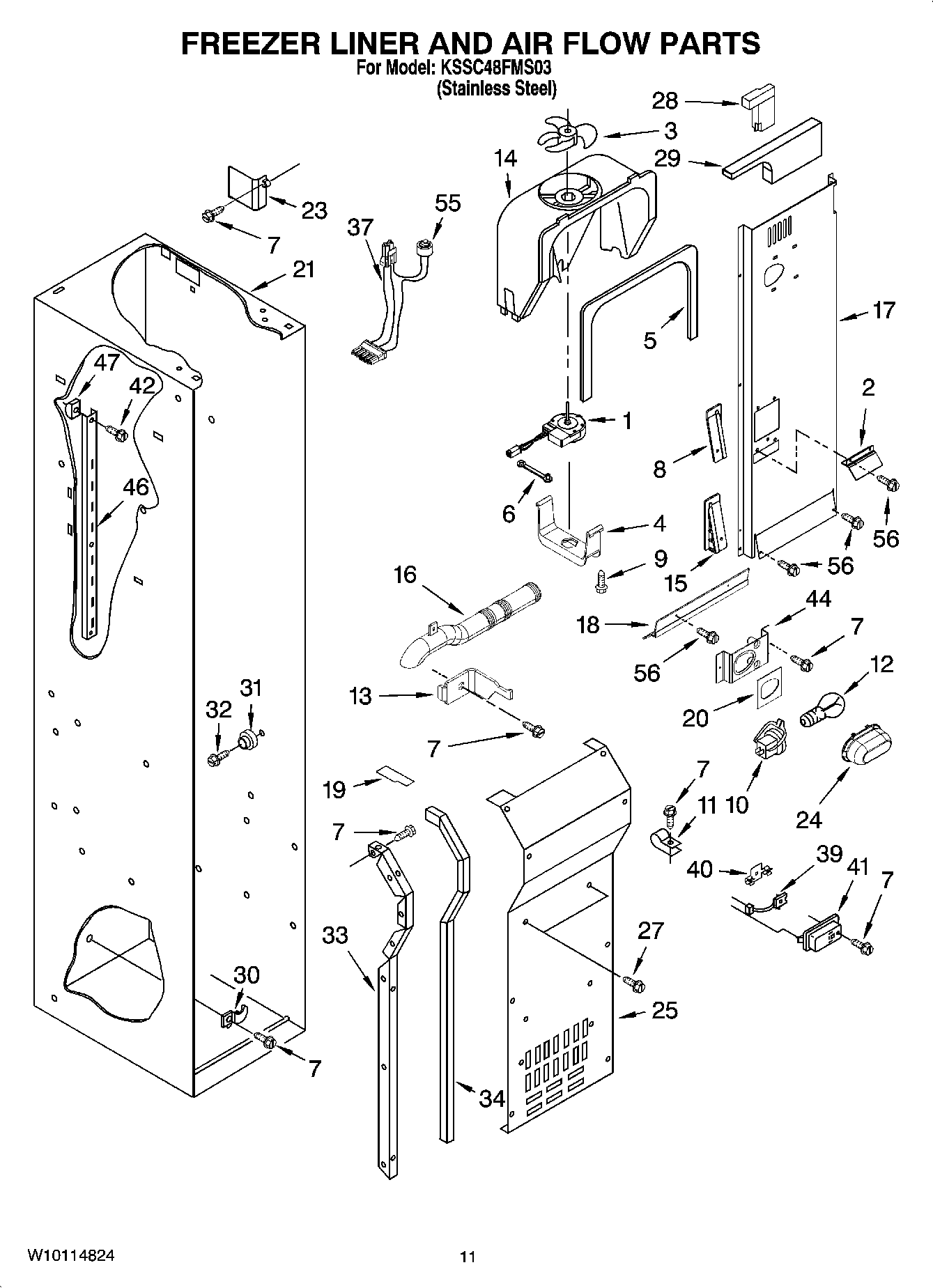

KSSC48FMS03 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
22266801 Whirlpool Refrigerator Deflector
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12RANGE ONLY 40W 120V APPL BULB
13Bracket, Vent Tube
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
16Tube, Vent
17Air Duct
182302851 Whirlpool Support
198201798 Whirlpool Refrigerator Fan Block
192209066 Whirlpool Refrigerator Fan Block
20Seal-Light, Socket
21Liner (Not A Serviceable Part)
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25Cover, Evaporator
27WP8281163 Whirlpool Refrigerator Screw
29Deflector, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
37Harness, Evap Fan (Includes Item 55)
39WP2188820 Whirlpool Refrigerator Thermistor
40Clip, Thermistor
411116793 Whirlpool Refrigerator Cover
422006475 Whirlpool Refrigerator Screw
44Bracket, Light
46WP2259032 Whirlpool Ladder
472259445 Whirlpool Support Assembly
55WPW10225581 Whirlpool Refrigerator Defrost Thermostat
56WPW10142283 Whirlpool Refrigerator Screw
