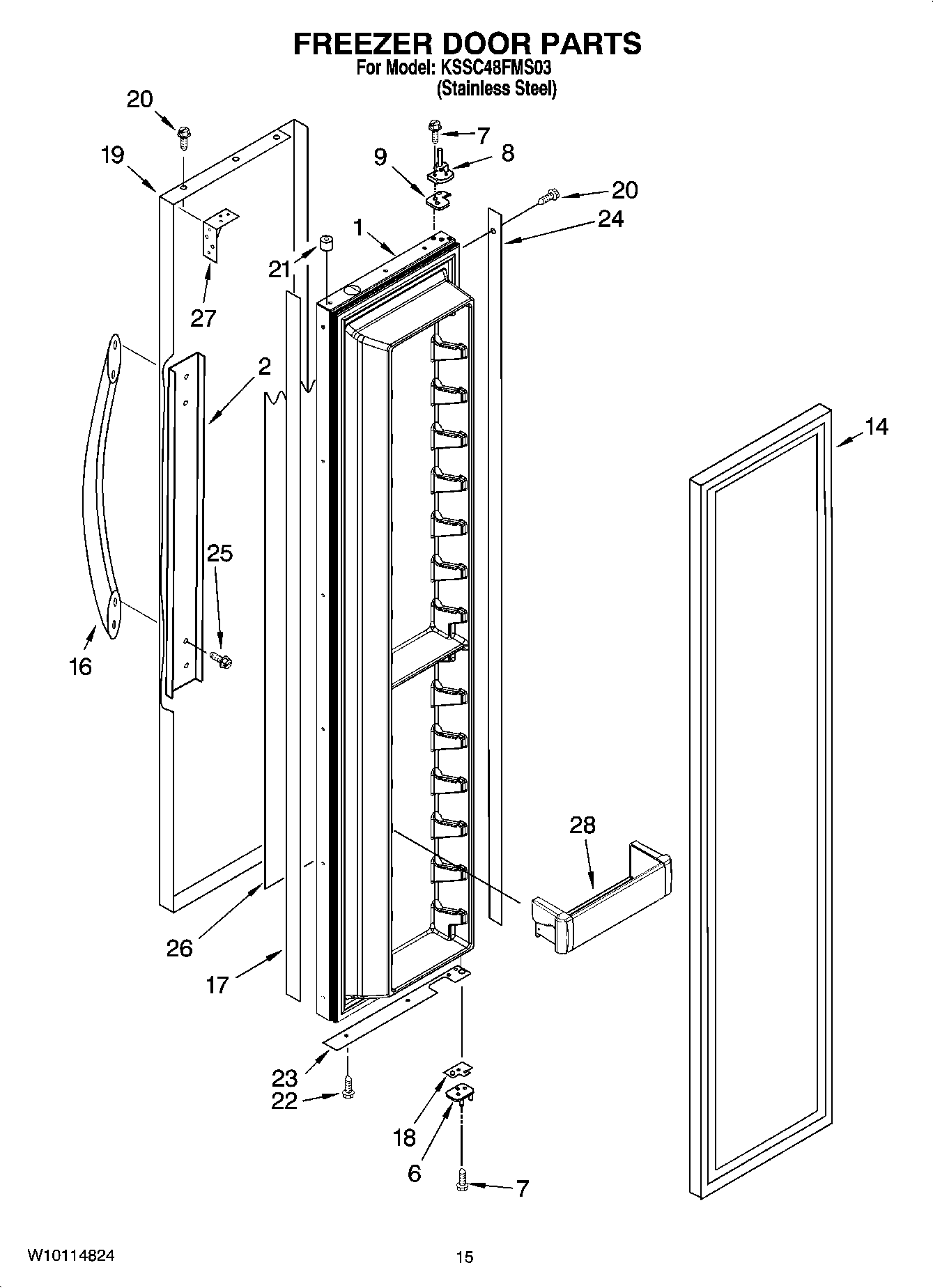

KSSC48FMS03 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 11)
2	Plate, Handle
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	WP2266901 Whirlpool Door Gasket
16	Handle, Door (Stainless Steel)
17	Spacer, Door (Handle Side)
18	Door Spacer, Bottom
19	Skin, Door
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
22	W10759522 Whirlpool Screw
23	WP2257333 Whirlpool Spacer
24	Spacer, Hinge Side
25	WP308544 Whirlpool Screw
26	Filler, Door
27	BRACE, DOOR CORNER
28	W11590561 Whirlpool Refrigerator Cantilever Bin
