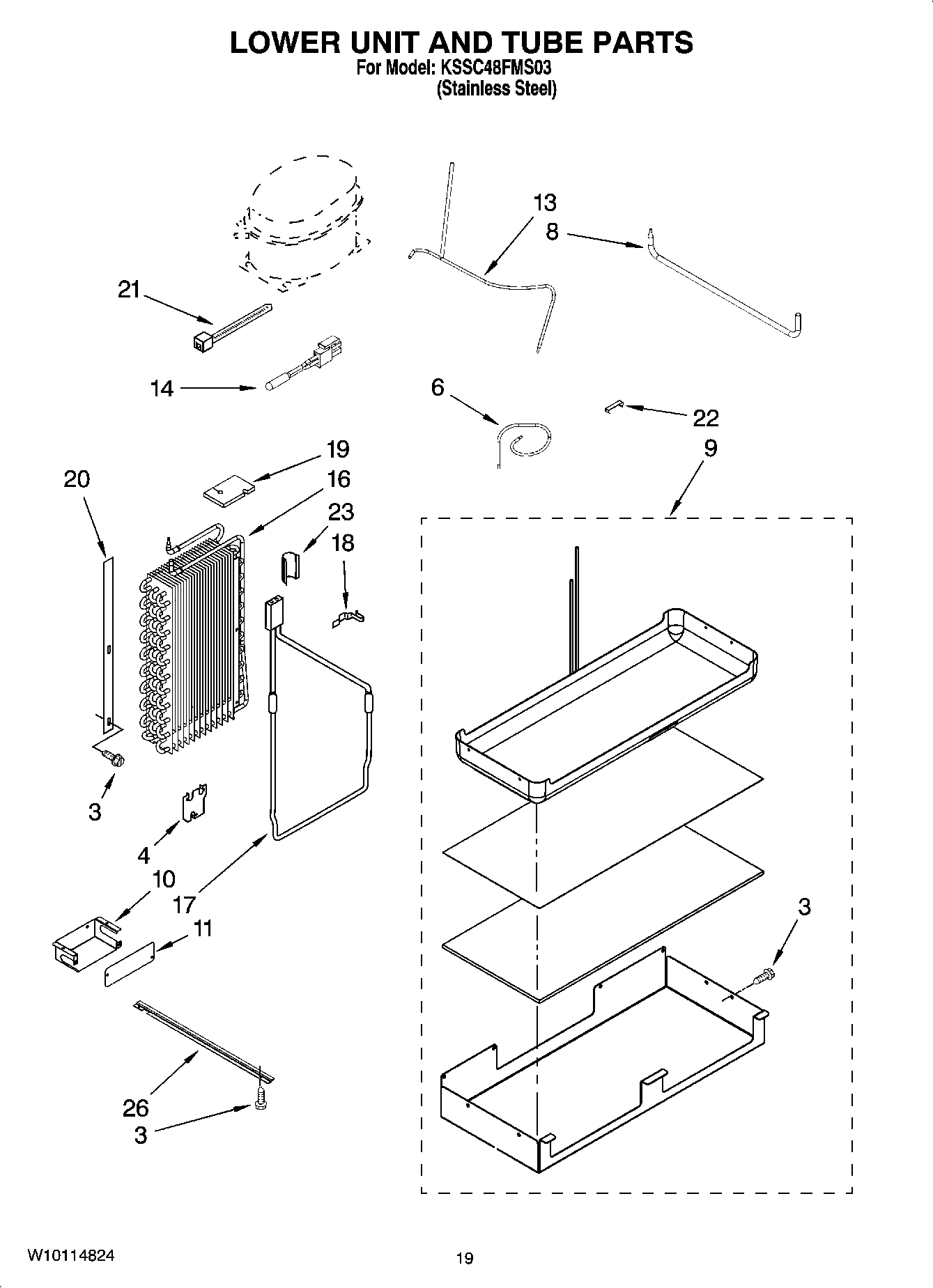

KSSC48FMS03 12 – LOWER UNIT AND TUBE PARTS

KSSC48FMS03 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC48FMS03 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
3W11624204 Whirlpool Screw
4Bracket
6Suction Tube
8Tube, Transition (Drier/Restrictor)
9WPW10281063 Whirlpool Refrigerator Heater Pan
10Cover, Wiring
11Cover, Box
13Tube, Discharge
14WP2188820 Whirlpool Refrigerator Thermistor
16WP2306094 Whirlpool Evaporator
17WP2306389 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
198201798 Whirlpool Refrigerator Fan Block
20Gasket, Evaporator
21Wire Tie
22W10169509 Whirlpool Refrigerator Clip
239791833 Whirlpool Refrigerator Clip
262320554 Whirlpool Bracket
