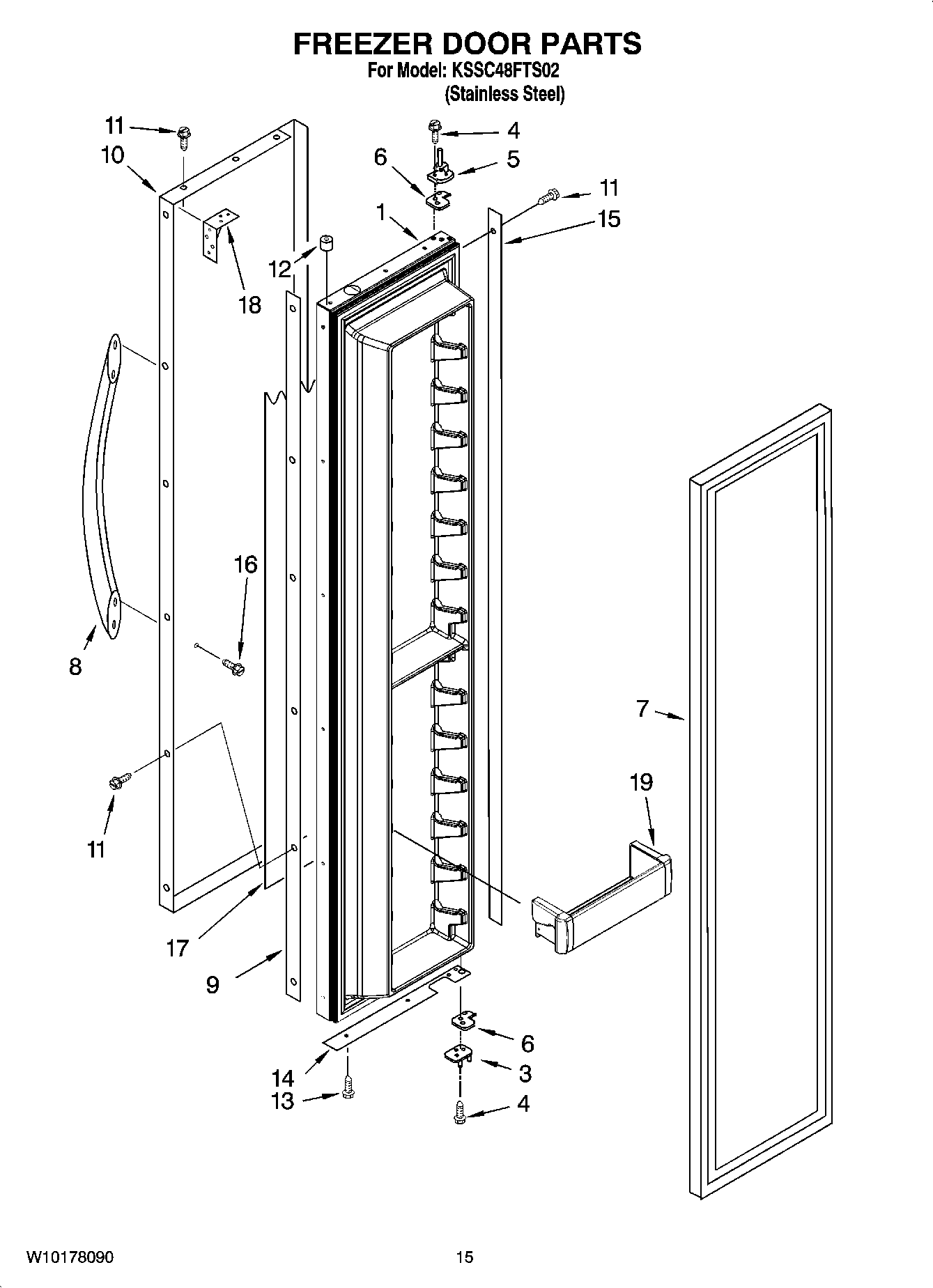

KSSC48FTS02 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 11)
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
6	W11673500 Whirlpool Door Hinge
7	WP2266901 Whirlpool Door Gasket
8	WP2316868 Whirlpool Refrigerator Handle
9	Spacer, Door-Skin (Handle Side)
10	Skin, Door
11	WP8281250 Whirlpool Refrigerator Screw
12	2005433 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	WP2257333 Whirlpool Spacer
15	Spacer, Hinge Side
16	WP308544 Whirlpool Screw
17	Filler, Door
18	BRACE, DOOR CORNER
19	W11590561 Whirlpool Refrigerator Cantilever Bin
