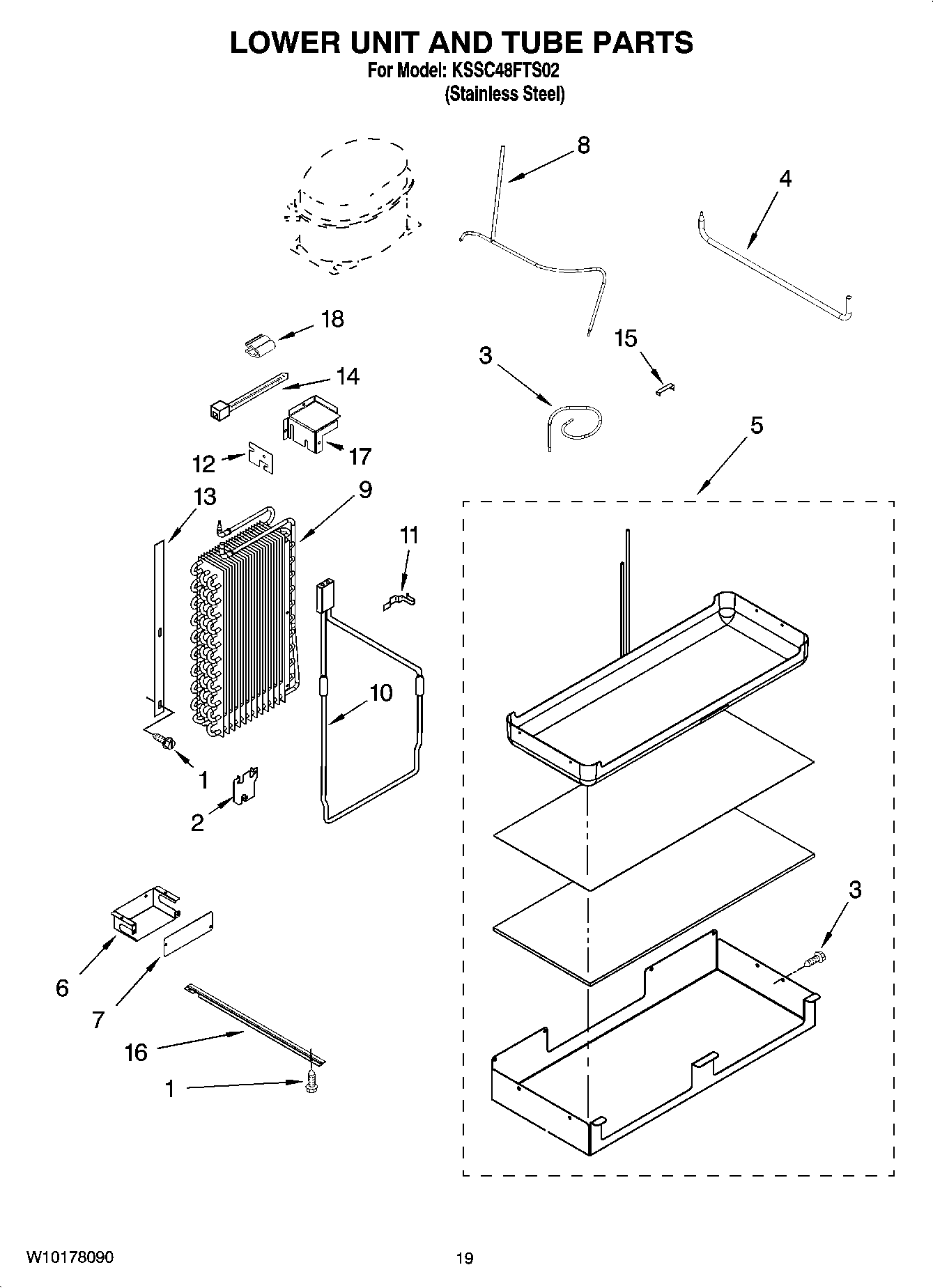

KSSC48FTS02 12 – LOWER UNIT AND TUBE PARTS

KSSC48FTS02 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC48FTS02 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2W10157752 Whirlpool Bracket
3Tube, Suction
4W10388653 Whirlpool Refrigerator Tube
5WPW10281063 Whirlpool Refrigerator Heater Pan
6Cover, Wiring
7Cover, Wiring
8Tube, Discharge
9WP2306094 Whirlpool Evaporator
10WPW10140162 Whirlpool Refrigerator Heater
111113048 Whirlpool Refrigerator Clamp
12W10139908 Whirlpool Seal
13Gasket, Evaporator
14Wire Tie
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
17Bracket Assembly, Return Air
189791833 Whirlpool Refrigerator Clip
