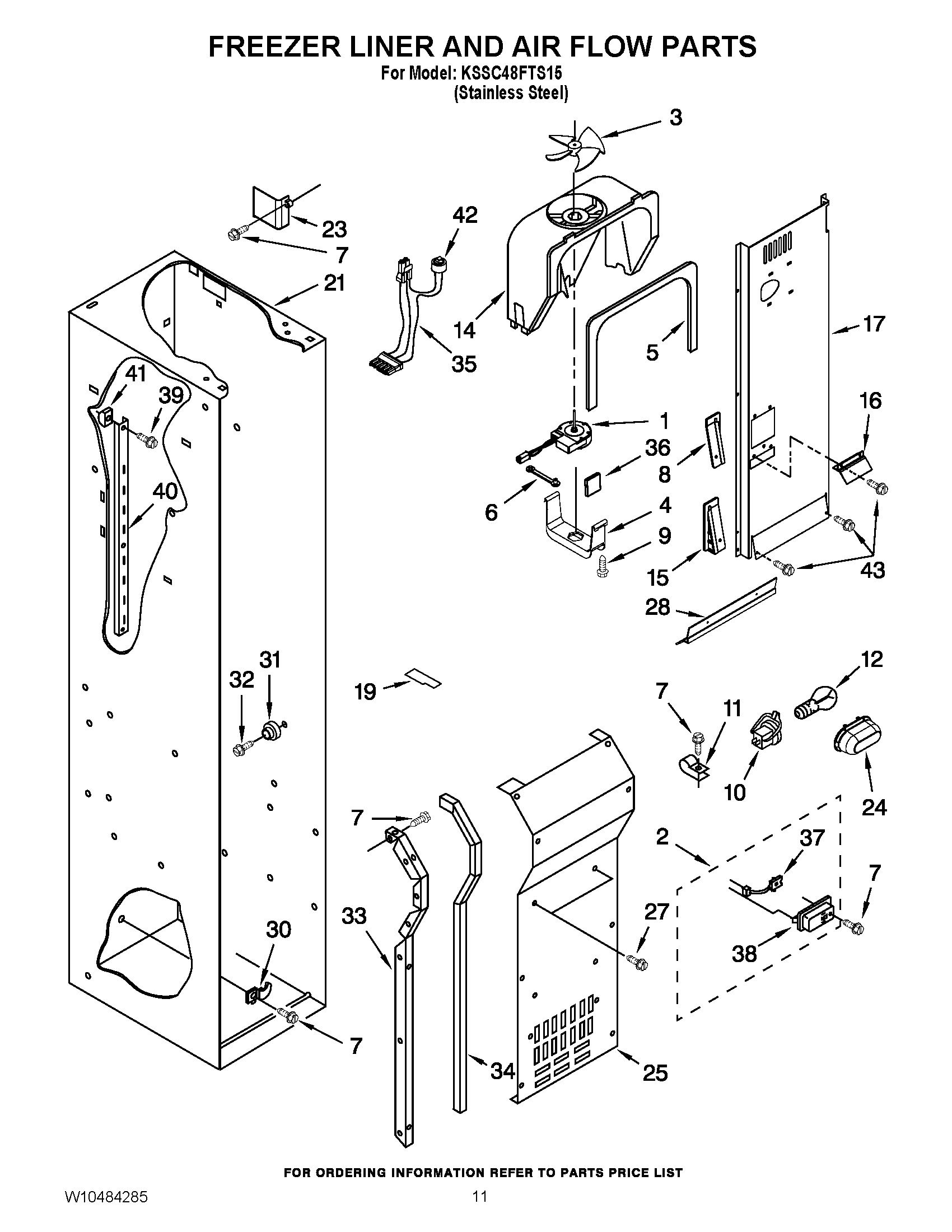

KSSC48FTS15 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WPW10141604 Whirlpool Screw
10WPW10191429 Whirlpool Refrigerator Socket
11W10833902 Whirlpool Refrigerator Clamp
12WPA3073101 Whirlpool Light Bulb
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
162266801 Whirlpool Refrigerator Deflector
17Air Duct
198201798 Whirlpool Refrigerator Fan Block
192209066 Whirlpool Refrigerator Fan Block
21CABINET (NOT A SERVICEABLE PART)
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25COVER, EVAPORATOR
27WP8281163 Whirlpool Refrigerator Screw
282302851 Whirlpool Support
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WPW10191952 Whirlpool Refrigerator Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
35W10139189 Whirlpool Refrigerator Wire Harness
36INSULATION
37WP2188820 Whirlpool Refrigerator Thermistor
38WP2317844 Whirlpool Refrigerator Cover
392006475 Whirlpool Refrigerator Screw
40WP2259032 Whirlpool Ladder
412259445 Whirlpool Support Assembly
42WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
43WPW10142283 Whirlpool Refrigerator Screw
