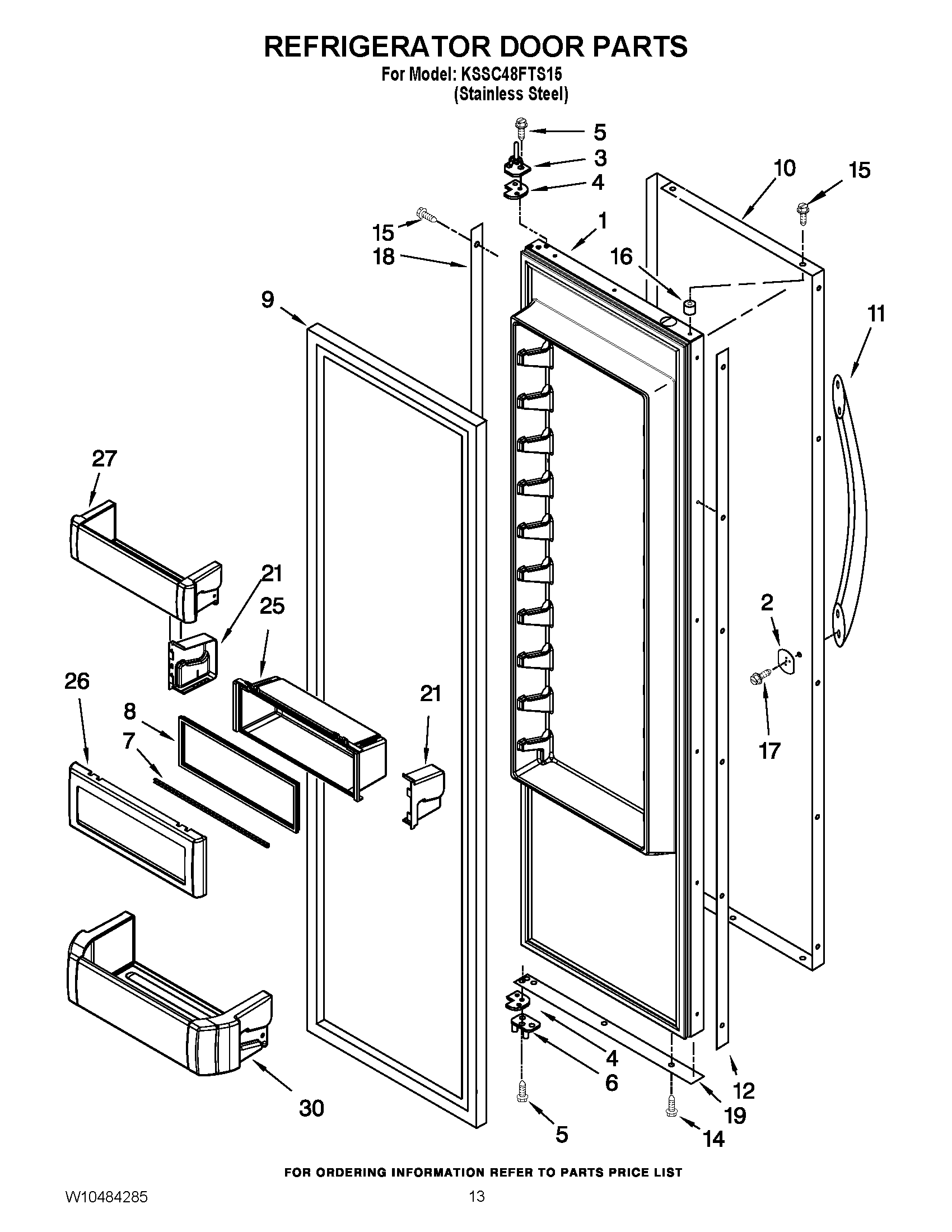

KSSC48FTS15 09 – REFRIGERATOR DOOR PARTS

KSSC48FTS15 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC48FTS15 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
2W10127710 Whirlpool Refrigerator Plate
3W11724512 Whirlpool Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
9WP2266903 Whirlpool Refrigerator Door Gasket
10Skin, Door
11WP2316868 Whirlpool Refrigerator Handle
12Spacer, Door (Handle Side)
14W10759522 Whirlpool Screw
15WP8281250 Whirlpool Refrigerator Screw
162005433 Whirlpool Refrigerator Spacer
17WP308544 Whirlpool Screw
18SPACER, DOOR-SKIN (HINGE SIDE)
19WP2257343 Whirlpool Spacer Assembly
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
27BIN-CNTLVR
30W10323748 Whirlpool Refrigerator Cantilever Bin
