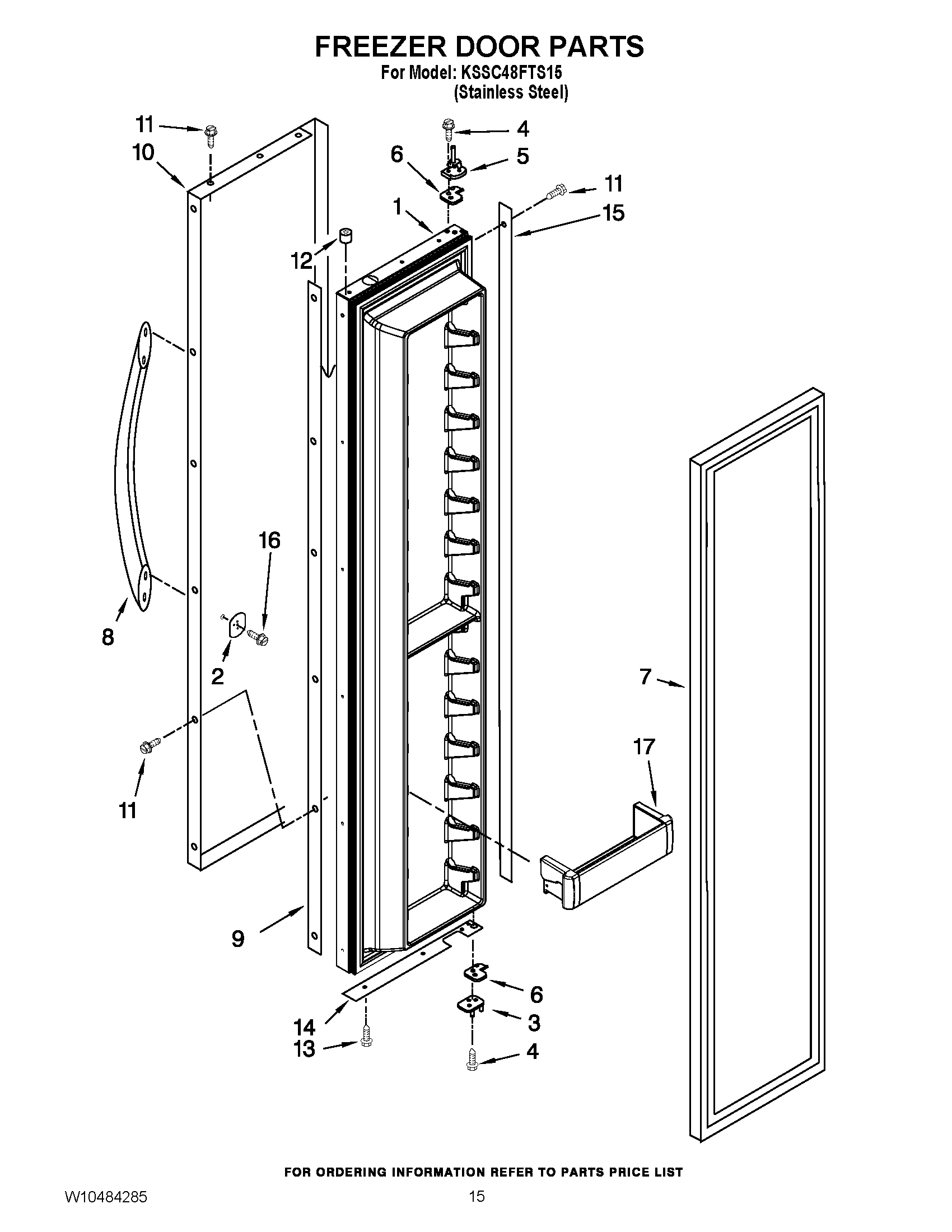

KSSC48FTS15 10 – FREEZER DOOR PARTS

KSSC48FTS15 10 – FREEZER DOOR PARTS

Written by

in

KSSC48FTS15 10 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.7)
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266901 Whirlpool Door Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door-Skin (Handle Side)
10Skin, Door
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14WP2257333 Whirlpool Spacer
15SPACER, DOOR-SKIN (HINGE SIDE)
16WP308544 Whirlpool Screw
17W11590561 Whirlpool Refrigerator Cantilever Bin
