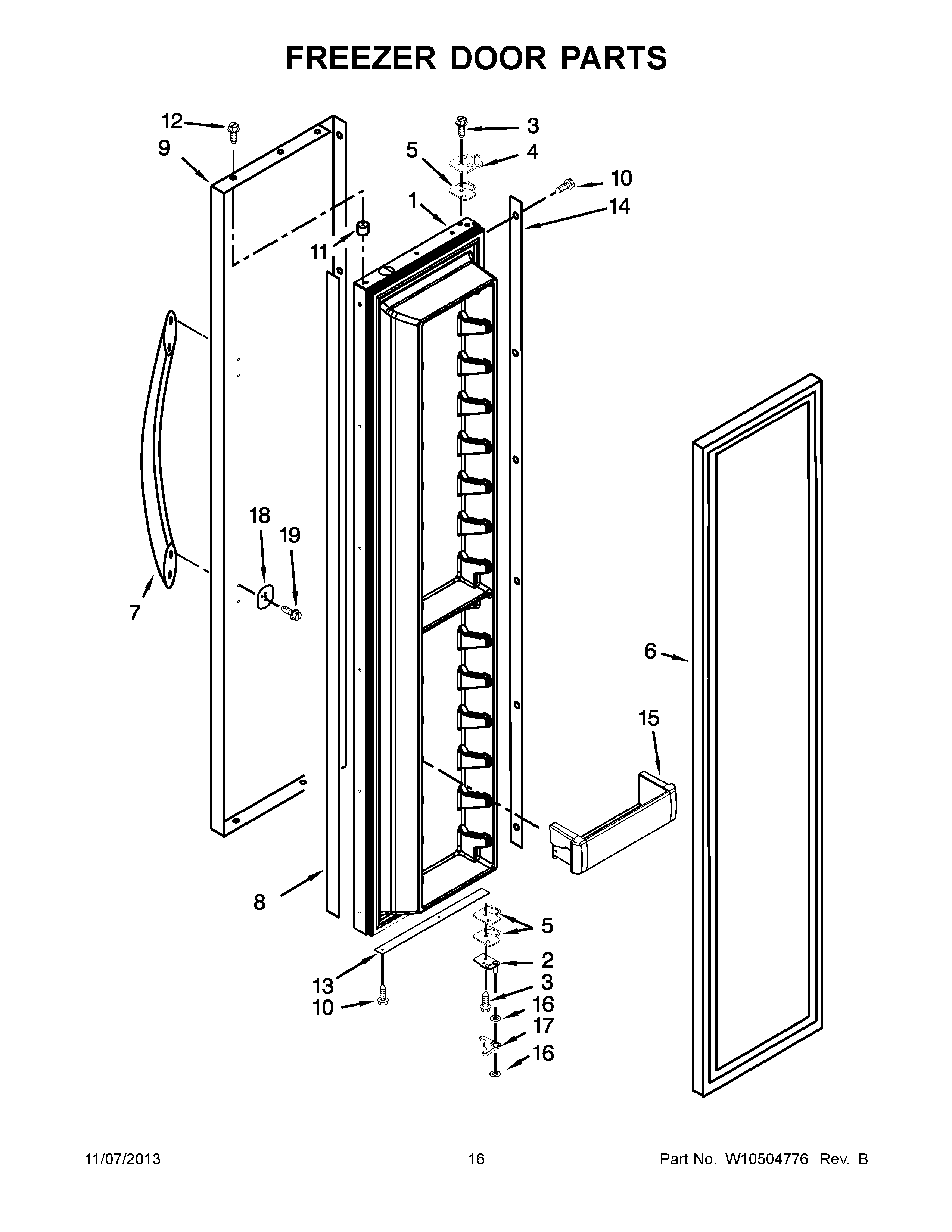

KSSC48FTS16 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7)
2	HINGE-DOOR
3	W11474472 Whirlpool Screw
4	W11724512 Whirlpool Door Hinge
5	W11673500 Whirlpool Door Hinge
6	WP2266901 Whirlpool Door Gasket
7	WP2316868 Whirlpool Refrigerator Handle
8	Spacer, Door (Handle Side)
9	Skin, Door
10	WP8281250 Whirlpool Refrigerator Screw
11	2005433 Whirlpool Refrigerator Spacer
12	W10759522 Whirlpool Screw
13	WP2257333 Whirlpool Spacer
14	SPACER, DOOR-SKIN (HINGE SIDE)
15	W11590561 Whirlpool Refrigerator Cantilever Bin
16	WP2006346 Whirlpool Refrigerator Washer
17	Gap, Cover Assembly (Bottom)
18	W10127710 Whirlpool Refrigerator Plate
19	WP308544 Whirlpool Screw
