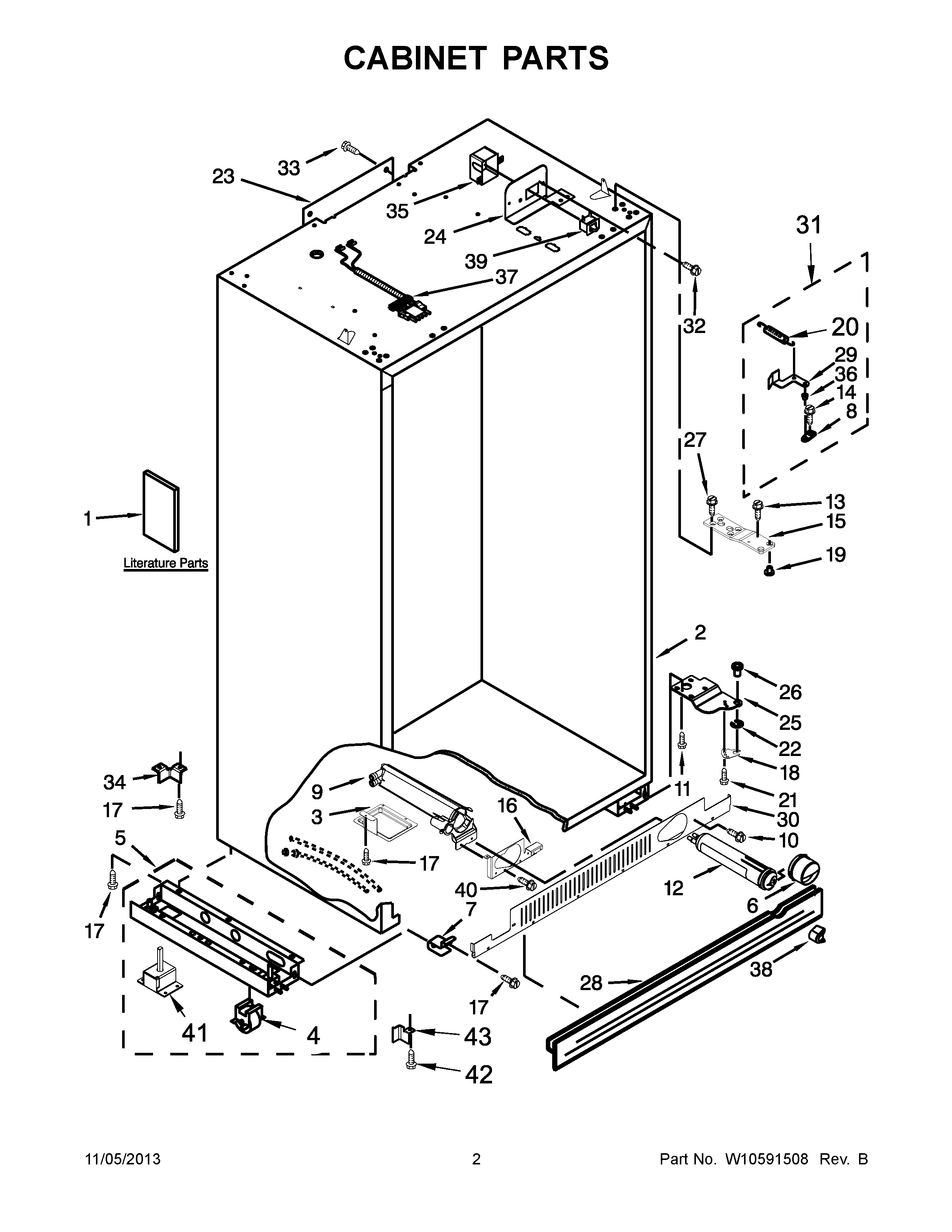

KSSC48FTS17 02 – CABINET PARTS

Products

Position	Product
1	MAIN CONTROL SERVICE SHEET
1	Icemaker and Ingredient Care Center Service Sheet
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	WP2320509 Whirlpool Refrigerator Door Cam
9	WPW10121140 Whirlpool Refrigerator Housing
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP8281164 Whirlpool Refrigerator Screw
14	W11177574 Whirlpool Refrigerator Screw
15	2257644 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	W11500952 Whirlpool Refrigerator Hinge Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	SCREW
22	WP489236 Whirlpool Refrigerator Ring
23	2215612 Whirlpool Refrigerator Duct Cover
24	2221096 Whirlpool Refrigerator Bracket
24	2221097 Whirlpool Refrigerator Bracket
25	W10527053 Whirlpool Refrigerator Door Hinge
25	WP2006780 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11189635 Whirlpool Refrigerator Screw
28	Skirt-Grille, Bottom
29	W11298172 Whirlpool Refrigerator Extension
29	W10847927 Whirlpool Refrigerator Extension
30	Grille Bottom, Front (Black)
31	WP2307857 Whirlpool Refrigerator Extension
31	WPW10121046 Whirlpool Refrigerator Extension
32	WP965173 Whirlpool Dishwasher Screw
33	W11624204 Whirlpool Screw
34	2006617 Whirlpool Refrigerator Bracket
35	2215938 Whirlpool Refrigerator Switch Cover
36	WP2316859 Whirlpool Refrigerator Bushing
37	W10167456 Whirlpool Harness Switch
38	WP2260503B Whirlpool Refrigerator Button
39	W11384469 Whirlpool Door Switch
39	W11457217 Whirlpool Refrigerator Rocker Switch Combination
40	WP8281163 Whirlpool Refrigerator Screw
41	2005032 Whirlpool Refrigerator Leveler
42	WPW10141604 Whirlpool Screw
43	2006556 Whirlpool Refrigerator Bracket
43	2006616 Whirlpool Refrigerator Bracket
