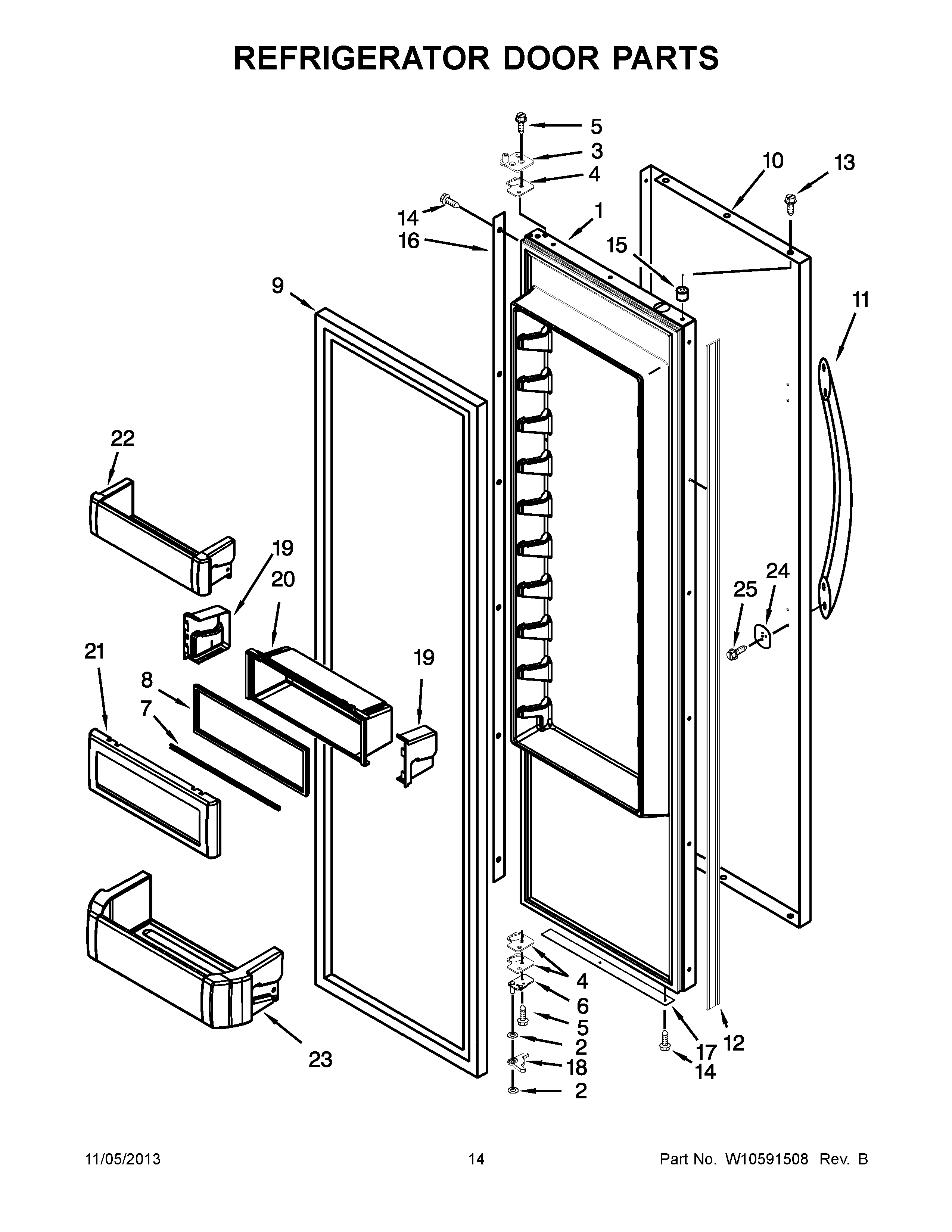

KSSC48FTS17 08 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	WP2006346 Whirlpool Refrigerator Washer
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	SKIN, DOOR (STAINLESS)
11	WP2316868 Whirlpool Refrigerator Handle
12	Spacer, Door (Handle Side)
13	W10759522 Whirlpool Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	2005433 Whirlpool Refrigerator Spacer
16	SPACER, DOOR-SKIN (HINGE SIDE)
17	WP2257343 Whirlpool Spacer Assembly
18	W11700297 Whirlpool Refrigerator Gap Hinge
19	WPW10323173 Whirlpool Refrigerator Retainer End Cap
19	WPW10323172 Whirlpool Refrigerator Retainer End Cap
22	BIN-CNTLVR
23	W10323748 Whirlpool Refrigerator Cantilever Bin
24	W10127710 Whirlpool Refrigerator Plate
25	WP308544 Whirlpool Screw
