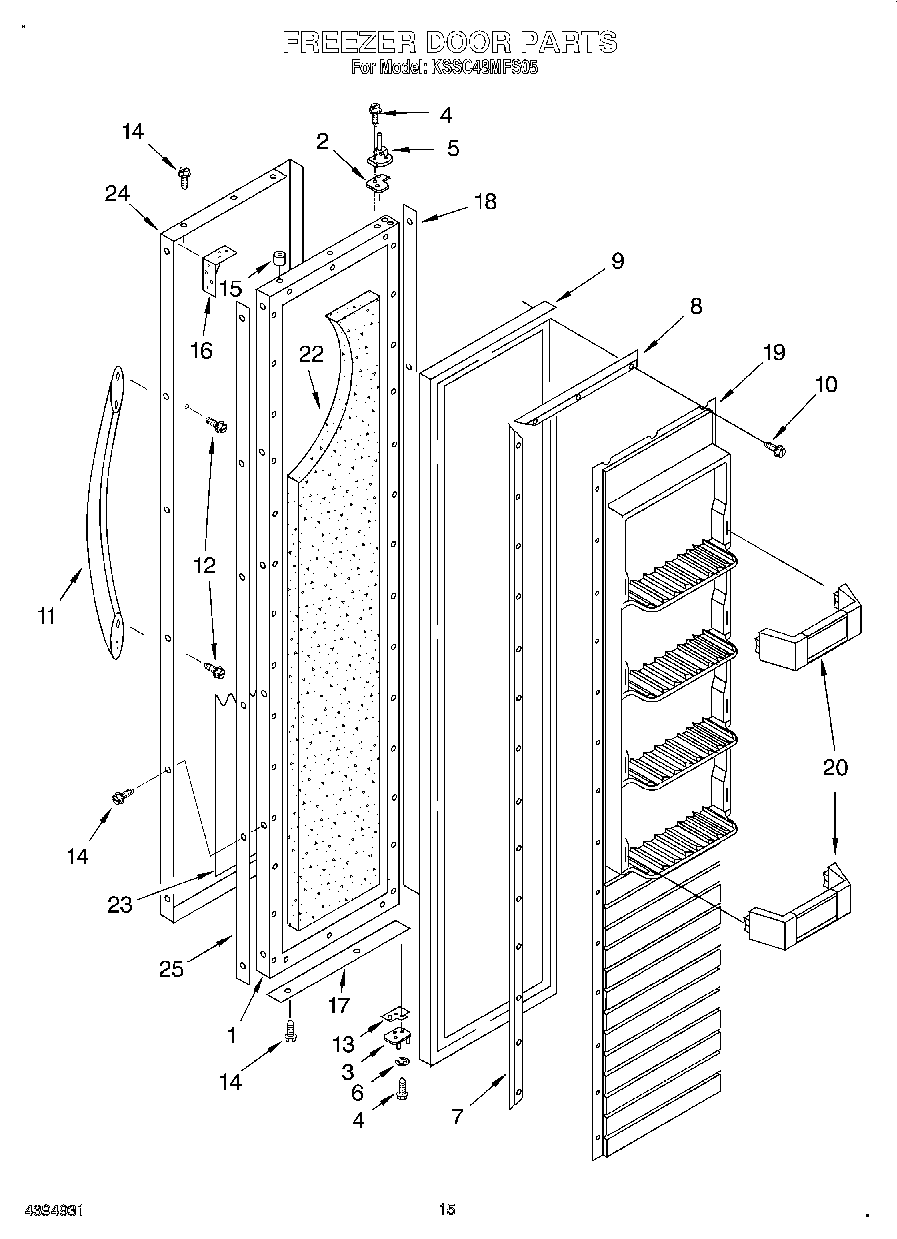

KSSC48MFS05 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
6	Retaining Ring, Door-Closure
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188319A Whirlpool Refrigerator Door Gasket
10	W11624204 Whirlpool Screw
11	Handle, Door (Stainless Steel)
12	WP3351614 Whirlpool Screw
13	Door, Spacer
14	WP488729 Whirlpool Refrigerator Door Screw
15	2005433 Whirlpool Refrigerator Spacer
16	Door Brace, Corner
17	WP2257333 Whirlpool Spacer
18	Spacer, Hinge Side
19	Panel, Interior Door
20	Shelf Bin (4)
22	Insulation, Encapsulated
23	Filler, Door
24	Door Skin
25	Spacer, Handle Side
