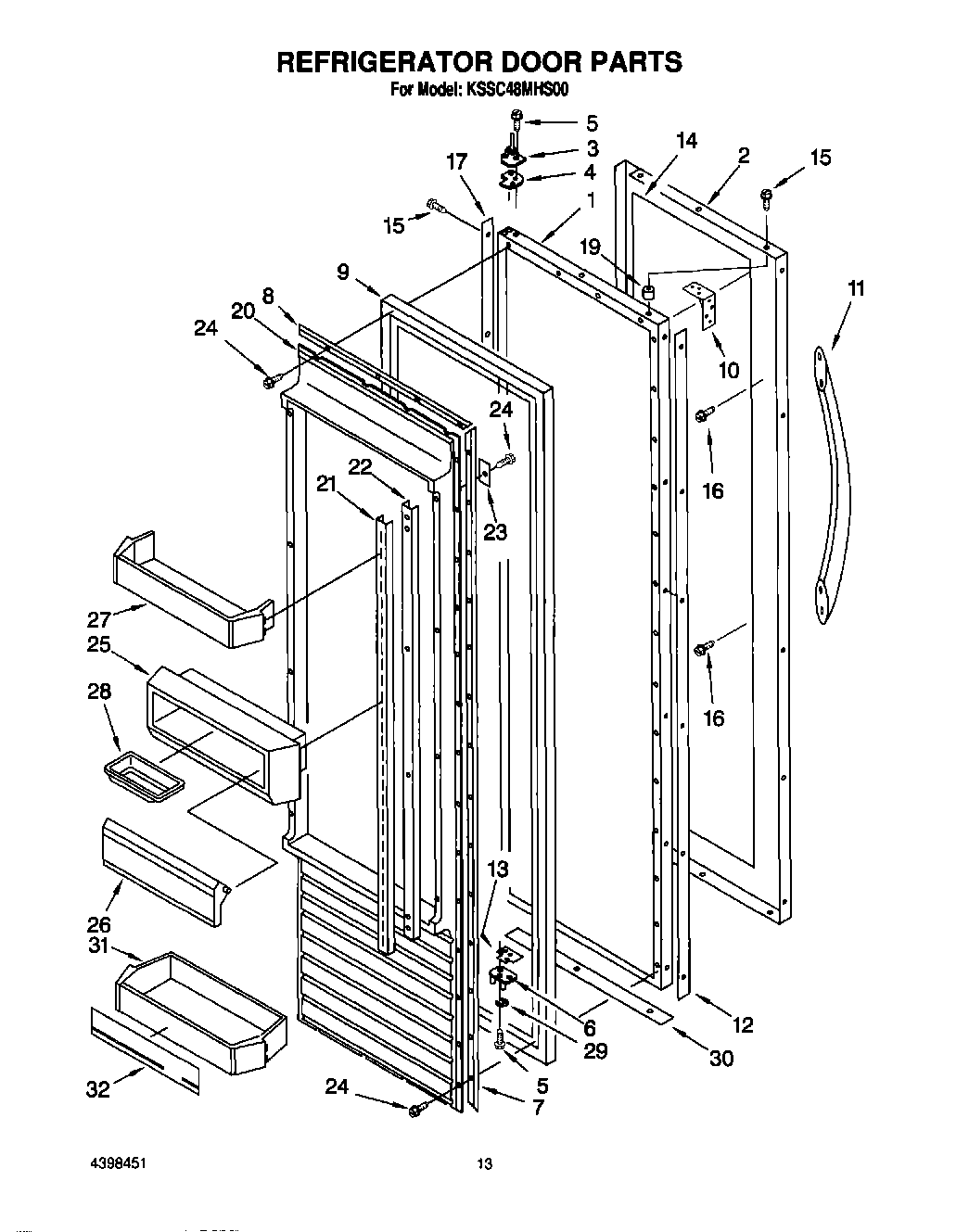

KSSC48MHS00 10 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation)
2Door Skin
3Hinge, Top
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
6WP2004523 Whirlpool Refrigerator Door Hinge
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188321A Whirlpool Refrigerator Door Gasket
10Door Brace, Corner
11Handle, Door (Stainless Steel)
12Spacer, Handle Side
13Door, Spacer
14Filler, Door
15WP488729 Whirlpool Refrigerator Door Screw
16WP308544 Whirlpool Screw
17Spacer, Hinge Side
192005433 Whirlpool Refrigerator Spacer
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
25Gasket Utility Door
26Door, Utility Bin
27Door Shelf (4)
28Butter Tray
29Retaining Ring, Door-Closure
30WP2257343 Whirlpool Spacer Assembly
31Shelf, Gallon Door
32Overlay
