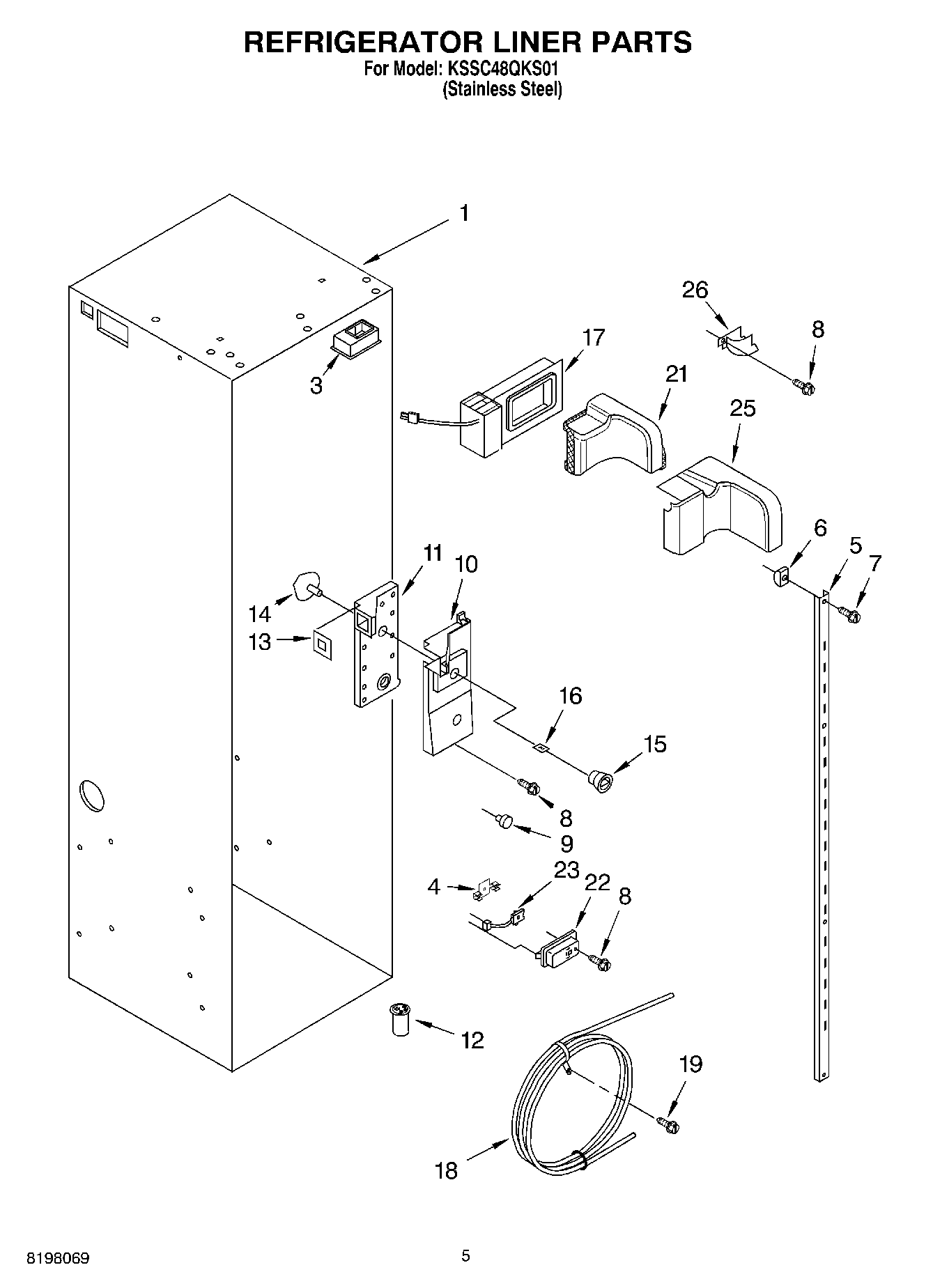

KSSC48QKS01 04 – REFRIGERATOR LINER
Written by
in
KSSC48QKS01 04 – REFRIGERATOR LINER
Products
Position
Product
1
Liner (Not A Serviceable Part)
3
2208970 Whirlpool Refrigerator Air Duct
4
Clip, Thermistor
5
Ladder, Shelf (2)
6
520965 Whirlpool Refrigerator Support
7
2006475 Whirlpool Refrigerator Screw
8
W11624204 Whirlpool Screw
9
Hole Plug
10
Meat Pan, Air Duct Cover
11
Meat Pan, Air Duct
12
Release Valve
13
Seal, Air Duct
14
Damper Control, Meat Pan
15
Control Knob, Meat Pan
16
Retainer, Knob
17
WP2221296 Whirlpool Air Baffle
18
WP2256126 Whirlpool Refrigerator Reservoir
19
Screw (2)
21
Diffuser Assembly
22
1116793 Whirlpool Refrigerator Cover
23
WP2188820 Whirlpool Refrigerator Thermistor
25
2309087 Whirlpool Refrigerator Cover
26
2003577 Whirlpool Refrigerator Guard
←
