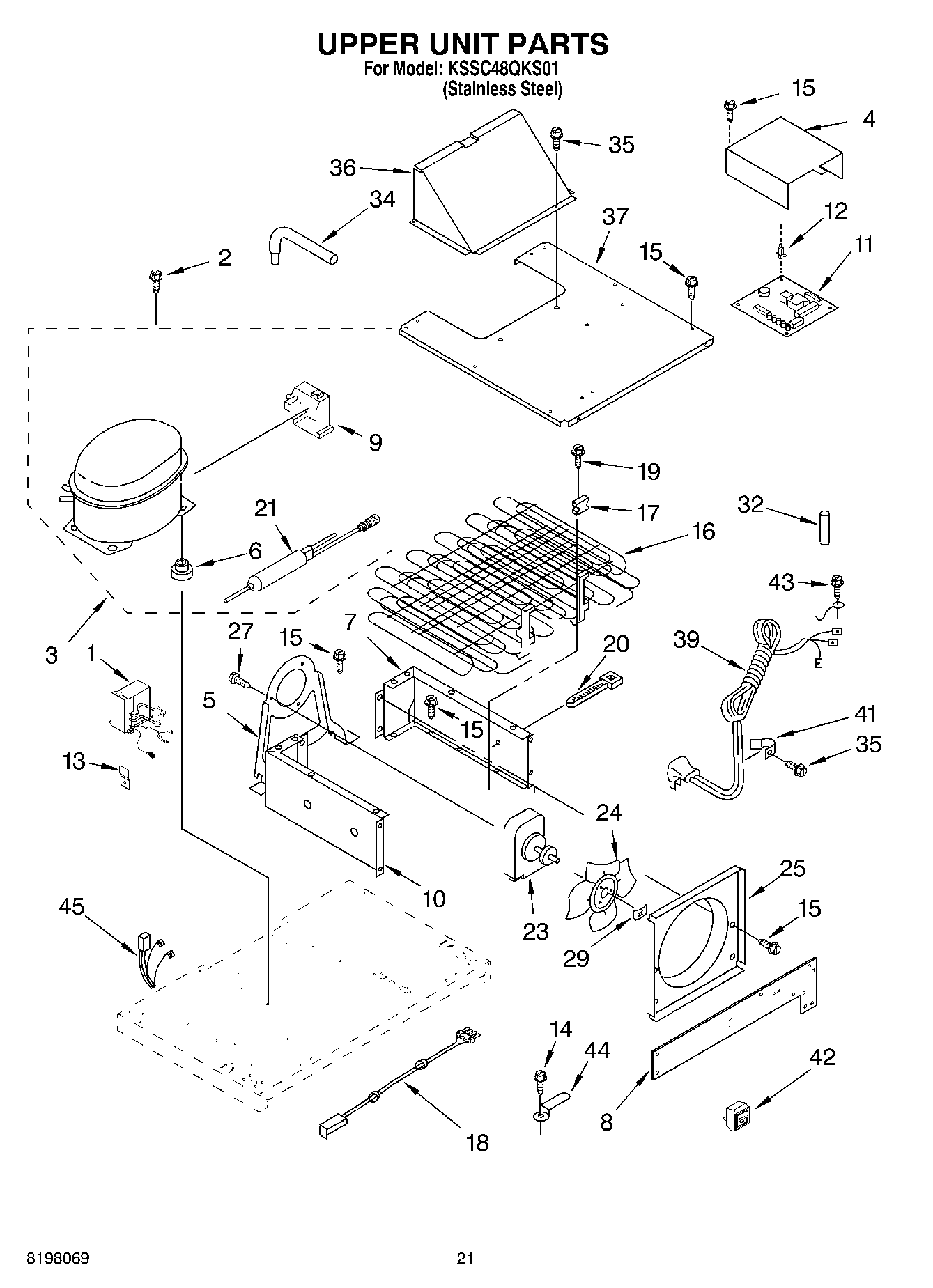

KSSC48QKS01 13 – UPPER UNITadmin2025-04-26T12:33:27+00:00KSSC48QKS01 13 – UPPER UNIT
Products
| Position | Product |
|---|
| 1 | W10629033 Whirlpool Refrigerator Inverter Control Box |
| 3 | W10841139 Whirlpool Refrigerator Compressor |
| 3 | 876765 Whirlpool Primary Mounting Kit Refrigerator |
| 4 | Housing, Control Board |
| 5 | Bracket, Fan Motor |
| 6 | 876811 Whirlpool Grommet |
| 7 | Shroud, Condenser (Right) |
| 8 | Panel, Condenser Front |
| 9 | 2215676 Whirlpool Refrigerator Terminal Cover |
| 10 | Shroud, Condenser (Left) |
| 11 | W10823805-includeCORE Whirlpool W10823805 Refrigerator Control Board + Core |
| 12 | WP2203075 Whirlpool Refrigerator Spacer |
| 13 | 2256328 Whirlpool Bracket Assembly |
| 14 | Screw |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 16 | Condenser |
| 17 | Grommet (4) |
| 18 | Wire, Jumper |
| 19 | Screw |
| 20 | WPW10339879 Whirlpool Wire Tie |
| 21 | W10843121 Whirlpool Refrigerator Tube |
| 23 | MOTOR-COND/INCL BLADE&BRKT |
| 24 | Blade, Fan |
| 25 | Orifice, Fan |
| 27 | 8281160 Whirlpool Screw |
| 29 | WP486692 Whirlpool Refrigerator Nut |
| 32 | Sleeve, Condenser |
| 34 | W10528578 Whirlpool Refrigerator Tube |
| 35 | W11624204 Whirlpool Screw |
| 36 | Cover, Fan |
| 37 | Cover, Condenser |
| 39 | Service Cord |
| 41 | 549193 Whirlpool Refrigerator Power Clamp |
| 42 | WP2266802 Whirlpool Refrigerator Switch |
| 43 | 303776 Whirlpool Dishwasher Screw |
| 44 | Clip, Cord Plug |
| 45 | VALVE, ACCESS (5/8``) |
| 45 | WP978025 Whirlpool Refrigerator Valve |
| 45 | 876764 Whirlpool Refrigerator Primary Valve |
| 45 | 978026 Whirlpool Refrigerator Primary Valve |
| 45 | 978027 Whirlpool Refrigerator Primary Valve |
| 45 | 978030 Whirlpool Refrigerator Valve |
| 45 | VALVE, ACCESS (1/2``) |
| 45 | Wiring Harness, Unit Compartment |
