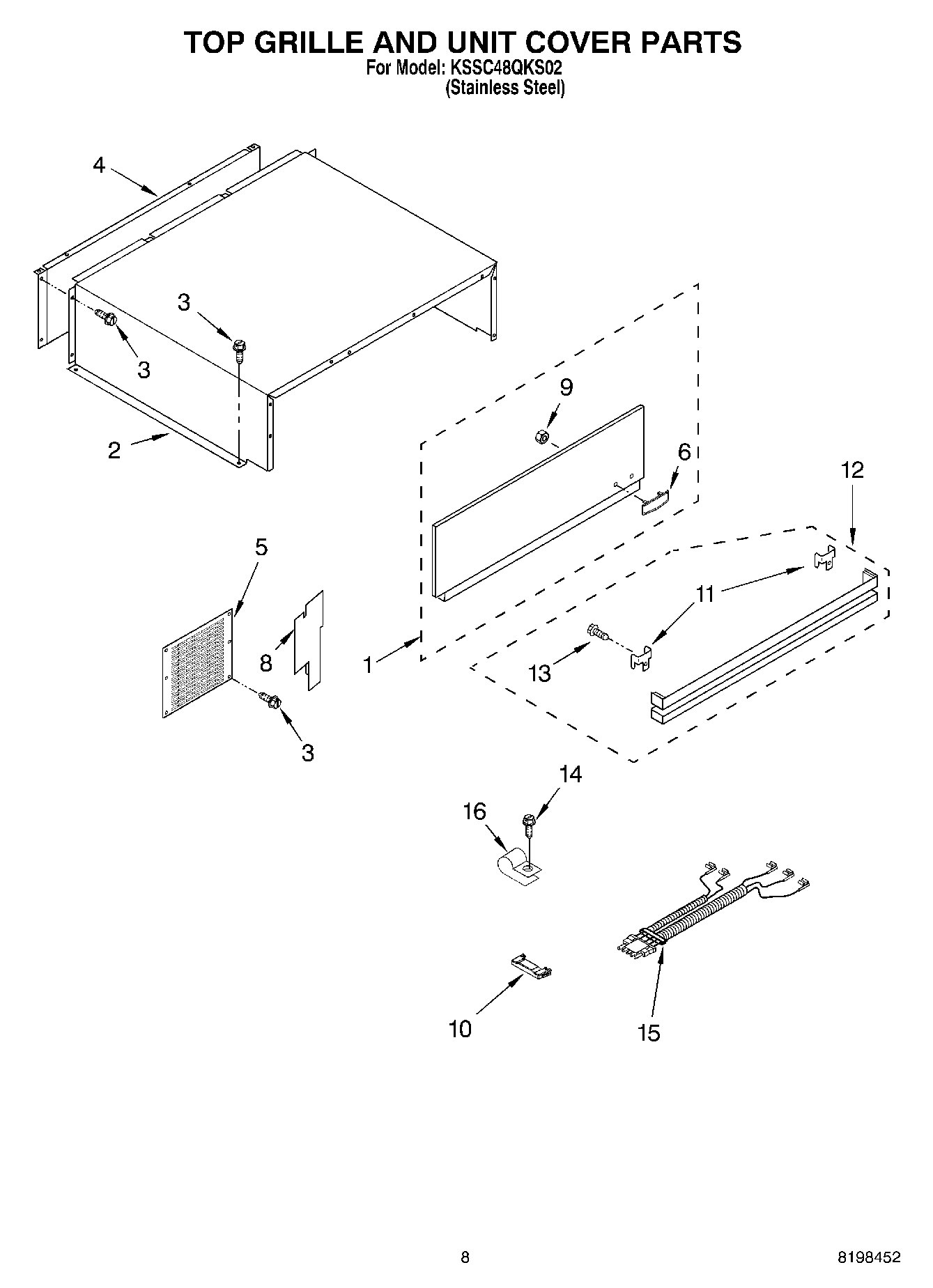

KSSC48QKS02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC48QKS02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC48QKS02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorator (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
10Enclosure, Connector
11Bracket, Louver
12Grille, Louver (Stainless steel)
13303776 Whirlpool Dishwasher Screw
14WP965173 Whirlpool Dishwasher Screw
15Wire Assembly RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
