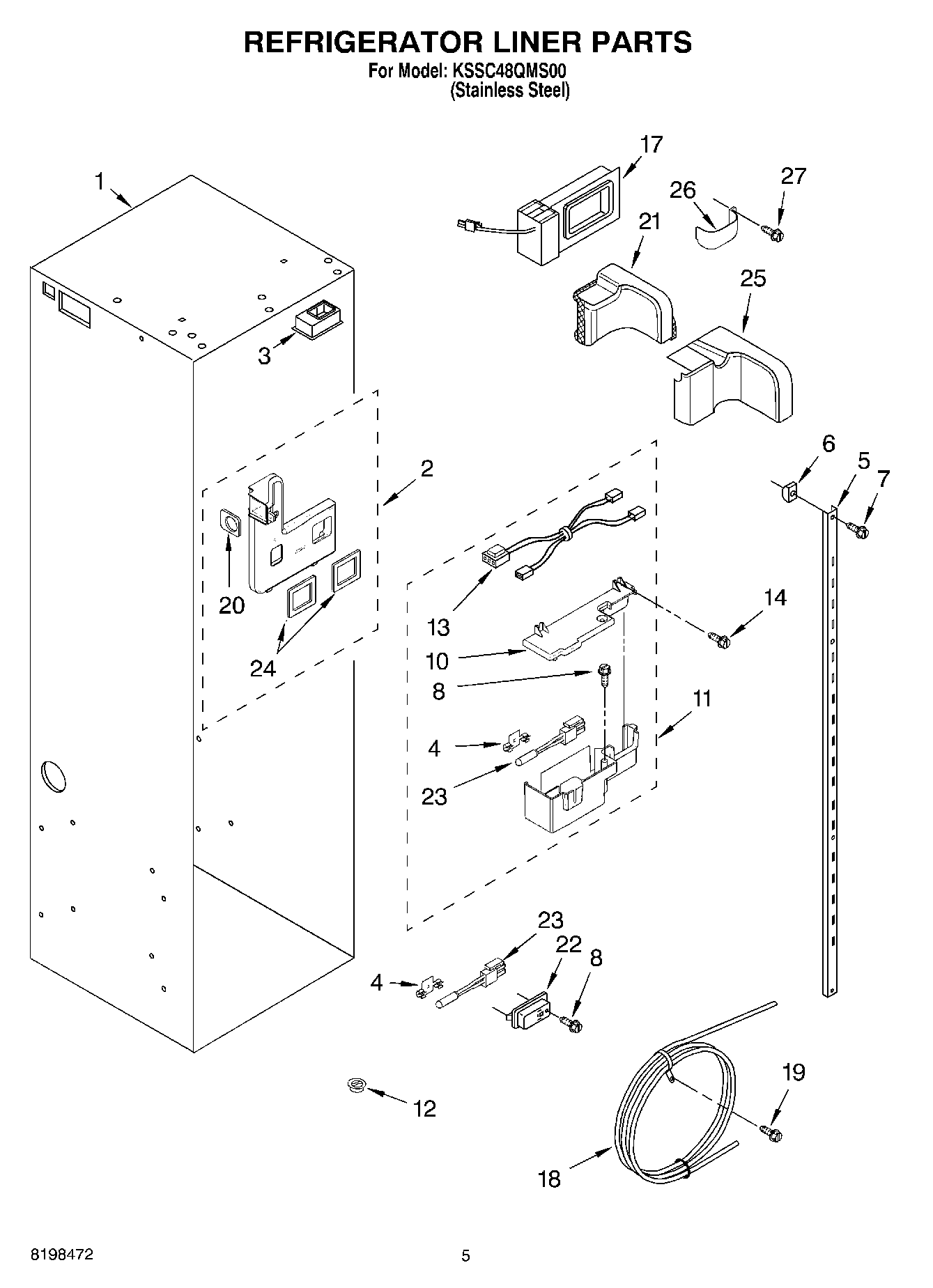

KSSC48QMS00 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer, Air Baffle
3	2208970 Whirlpool Refrigerator Air Duct
4	Clip, Thermistor
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	2006475 Whirlpool Refrigerator Screw
8	W11624204 Whirlpool Screw
10	Lid, Meat Pan Baffle
11	Baffle Control Assembly
12	2171846 Whirlpool Refrigerator Release Valve
13	Jumper, Air Baffle
14	Screw, 8 x 1-1/4 (3)
17	WP2221296 Whirlpool Air Baffle
18	WP2256126 Whirlpool Refrigerator Reservoir
19	Screw (2)
20	Seal, Air Duct (Round Hole)
21	Diffuser Assembly
22	1116793 Whirlpool Refrigerator Cover
23	WP2188820 Whirlpool Refrigerator Thermistor
24	2259398 Whirlpool Refrigerator Seal
25	2309087 Whirlpool Refrigerator Cover
26	Cover, Air Return
27	WP488729 Whirlpool Refrigerator Door Screw
