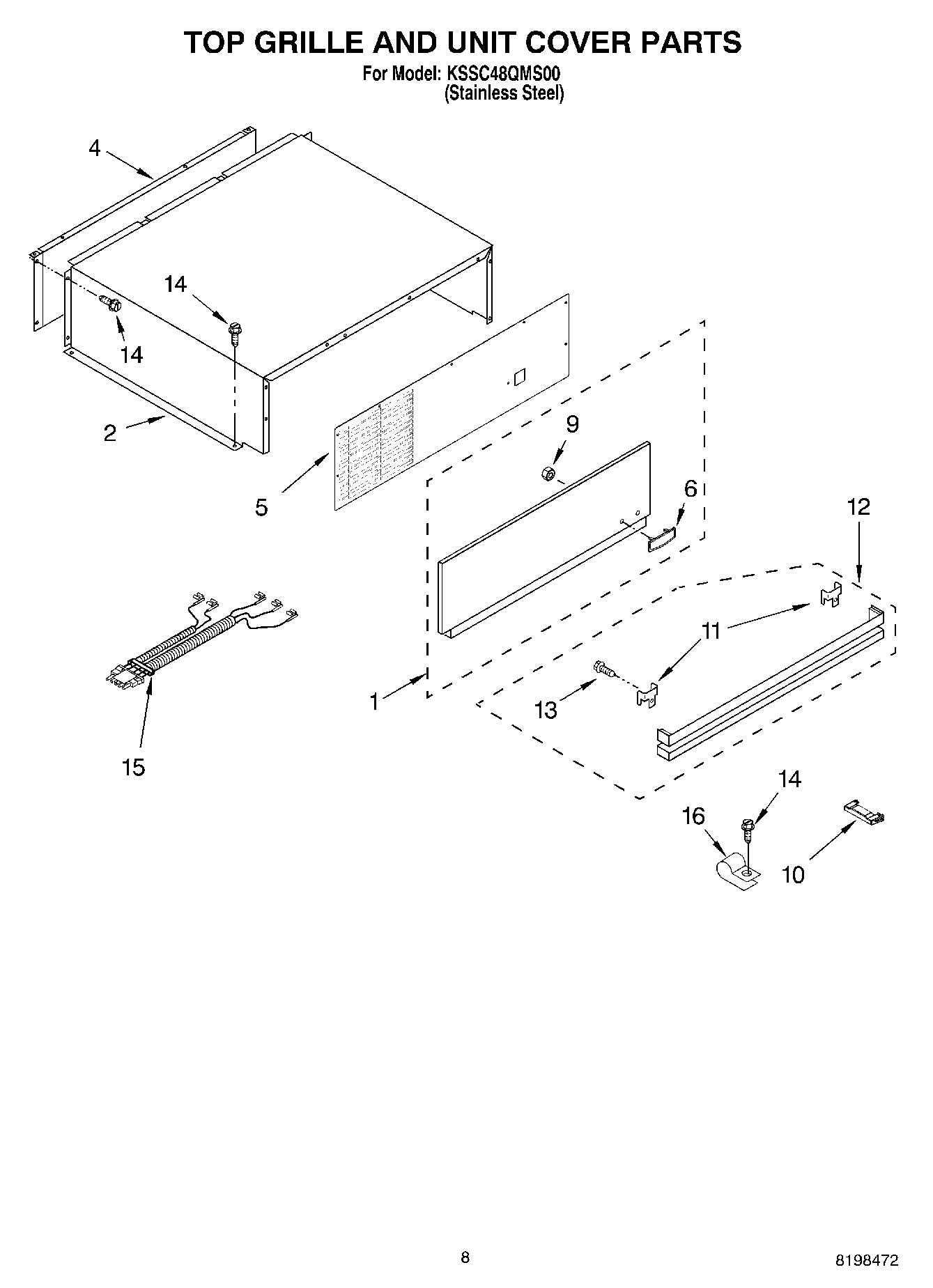

KSSC48QMS00 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC48QMS00 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC48QMS00 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Panel, Decorator
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6Nameplate (Black)
9WP2004333 Whirlpool Refrigerator Nut
10Enclosure, Connector
11Bracket, Louver
12Grille, Louver
13303776 Whirlpool Dishwasher Screw
14WP965173 Whirlpool Dishwasher Screw
15Wire Assembly RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
