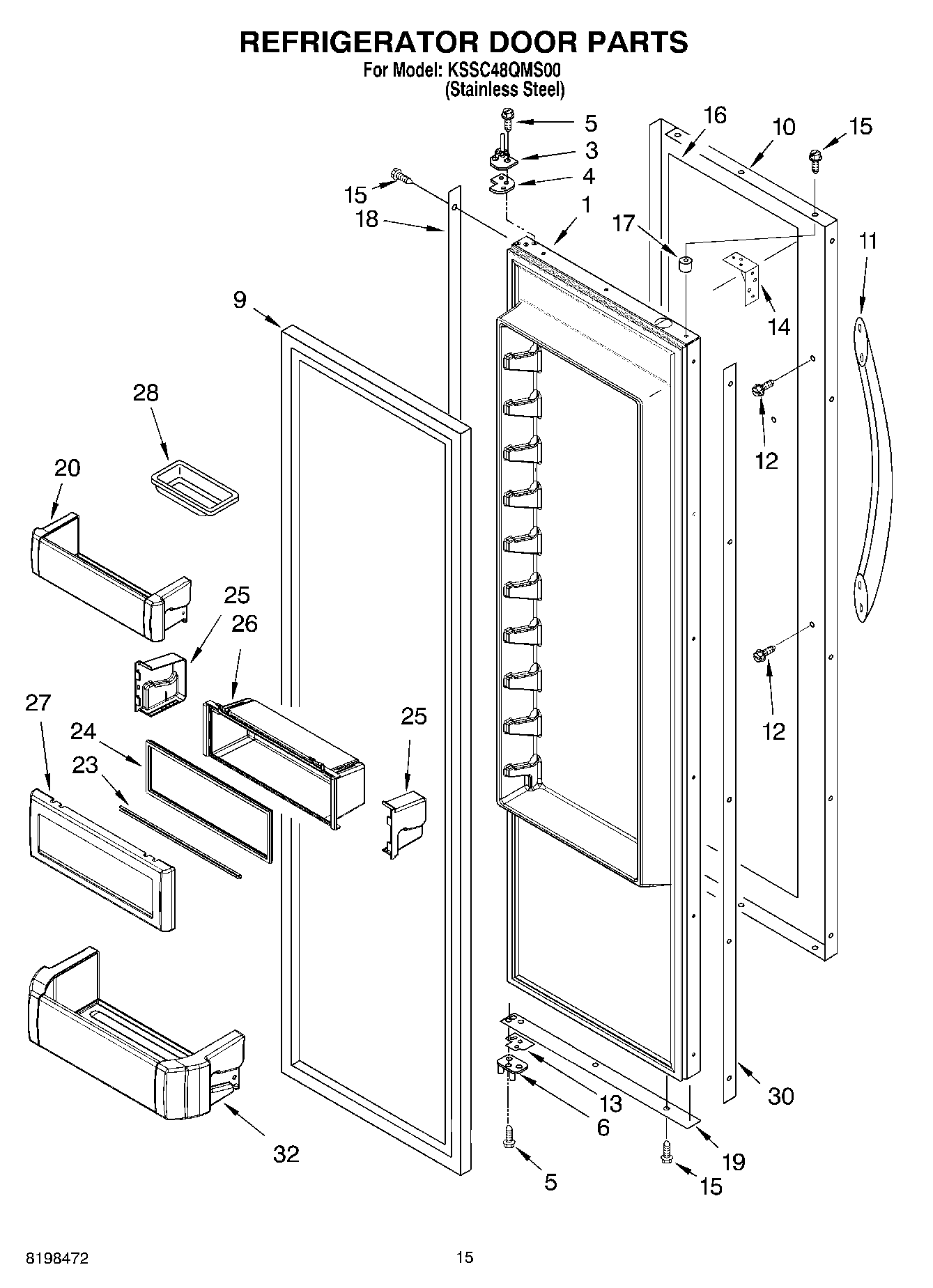

KSSC48QMS00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
9	WP2266903 Whirlpool Refrigerator Door Gasket
10	Door Skin
12	WP308544 Whirlpool Screw
13	Door Spacer, Bottom
14	BRACE, DOOR CORNER
15	WP8281250 Whirlpool Refrigerator Screw
16	Filler, Door
17	2005433 Whirlpool Refrigerator Spacer
18	Spacer, Hinge Side
19	WP2257343 Whirlpool Spacer Assembly
20	BIN-CNTLVR
23	W11348580 Whirlpool Refrigerator Bin
25	WPW10323173 Whirlpool Refrigerator Retainer End Cap
25	WPW10323172 Whirlpool Refrigerator Retainer End Cap
28	Butter Tray
30	Handle, Door (Stainless Steel)
32	W10323748 Whirlpool Refrigerator Cantilever Bin
