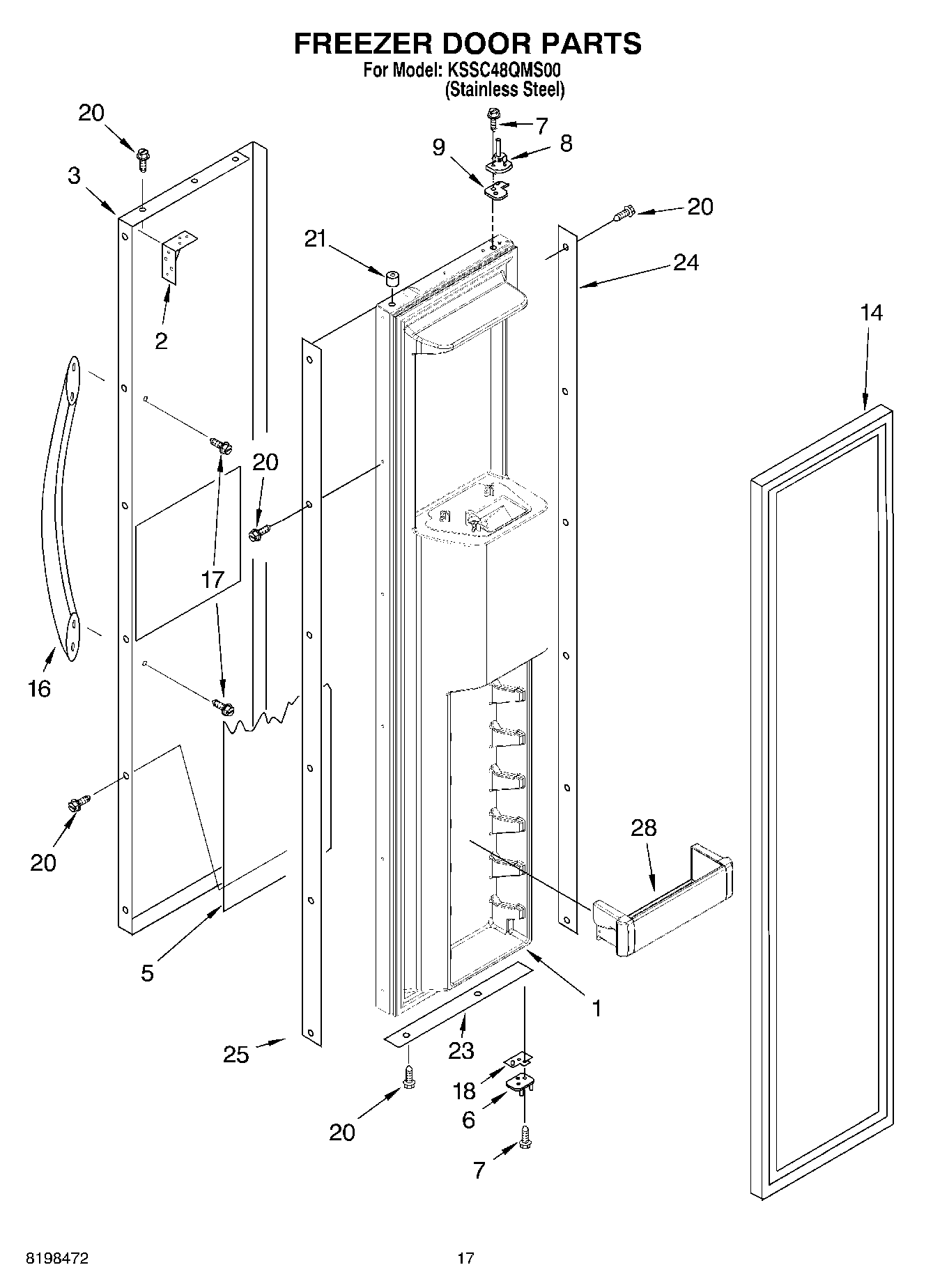

KSSC48QMS00 11 – FREEZER DOOR PARTS

KSSC48QMS00 11 – FREEZER DOOR PARTS

Written by

in

KSSC48QMS00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Black)
2BRACE, DOOR CORNER
3Door Skin
5Filler, Door
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
14WP2266901 Whirlpool Door Gasket
17WP308544 Whirlpool Screw
18Door Spacer, Bottom
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
23SPACER, DOOR SKIN BOTTOM
24Spacer, Hinge Side
25Handle, Door (Stainless Steel)
28W11590561 Whirlpool Refrigerator Cantilever Bin
