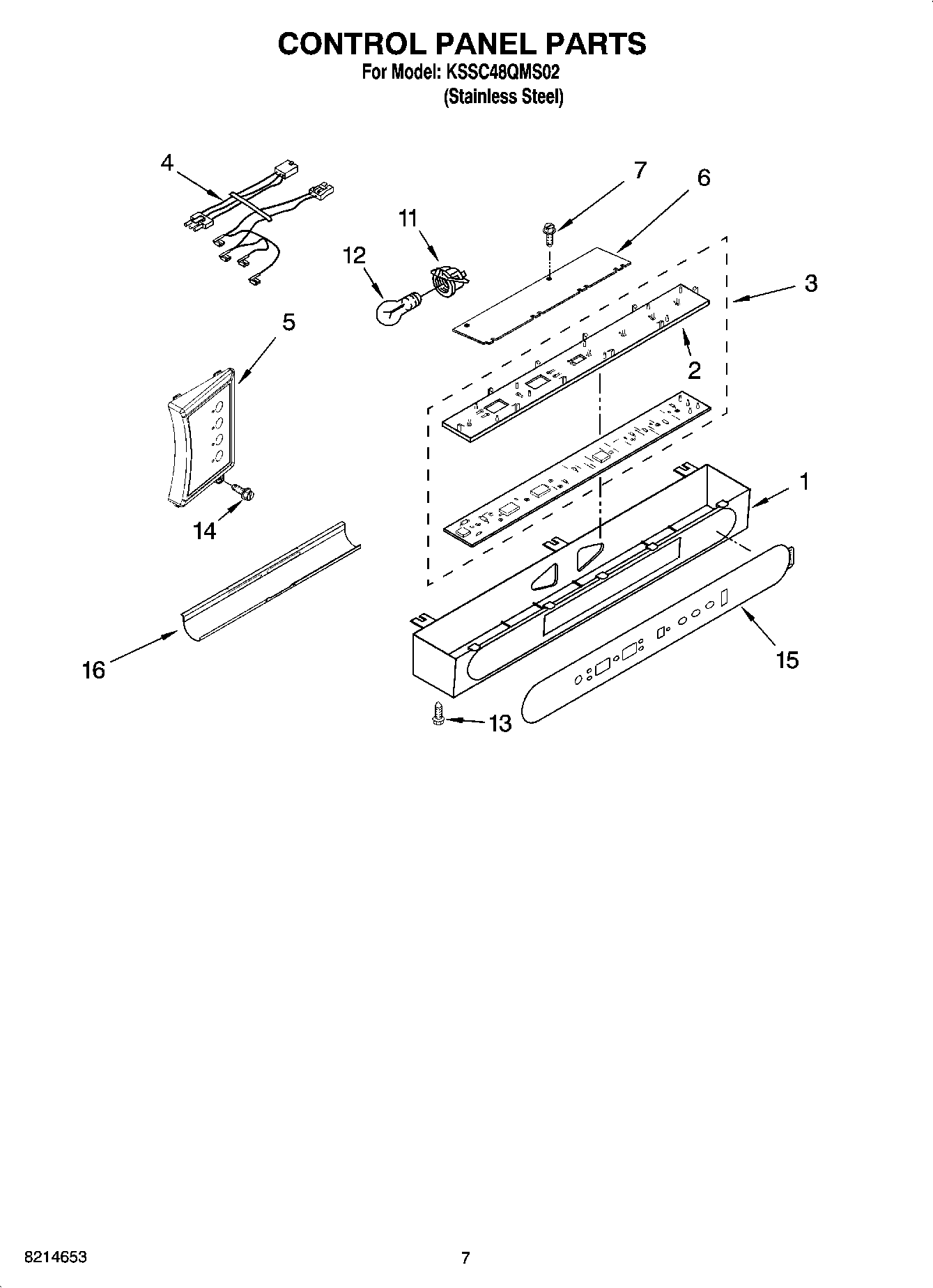

KSSC48QMS02 05 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Box
2	Insert, Control Box
3	Circuit Board (User Interface)
4	Harness, Control Box
5	WP2306086 Whirlpool Refrigerator Electronic Control Board
6	2221121 Whirlpool Refrigerator Support
7	WP488920 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	W11624204 Whirlpool Screw
14	WPW10142283 Whirlpool Refrigerator Screw
15	OVERLAY
16	Shield, Light
