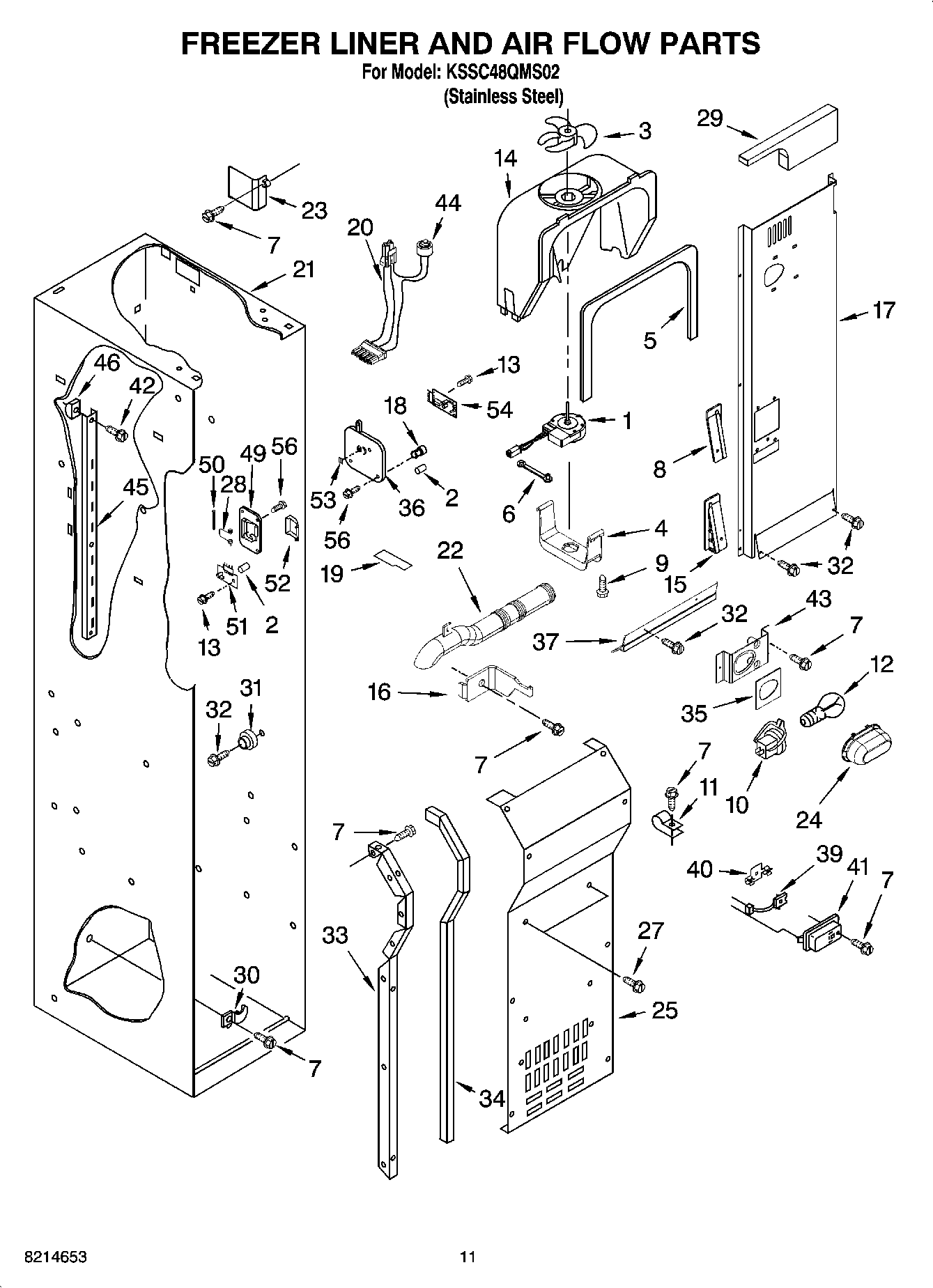

KSSC48QMS02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1Motor, Fan
2Tube, P.C. Board
3WP2169142 Whirlpool Fan Blade
48201663 Whirlpool Refrigerator Primary Fan Blade
5WP2302817 Whirlpool Refrigerator Gasket
6W11669856 Whirlpool Grommet
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
9WP489128 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11Clamp, Tube
12RANGE ONLY 40W 120V APPL BULB
132006254 Whirlpool Refrigerator Screw
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
16Bracket, Vent Tube
17Air Duct
18WP2198643 Whirlpool Refrigerator Lens
192209066 Whirlpool Refrigerator Fan Block
198201798 Whirlpool Refrigerator Fan Block
20Harness, Evap Fan (Includes Item 55)
21Liner (Not A Serviceable Part)
22Tube, Vent
232259025 Whirlpool Refrigerator Air Cover
24Light Shield
25Cover, Evaporator
27WP488729 Whirlpool Refrigerator Door Screw
28WP2198635 Whirlpool Refrigerator Spring
29Deflector, Air Duct
301112260 Whirlpool EV Support
31WP2196483 Whirlpool Refrigerator Shelf Stud
32WP3400806 Whirlpool Screw
332259355 Whirlpool Refrigerator Evaporator Rail
33Evaporator, Cover Rail (Left Side)
342220904 Whirlpool Refrigerator Gasket
35Seal-Light, Socket
362259493 Whirlpool Refrigerator Cover
372302851 Whirlpool Support
39WP2188820 Whirlpool Refrigerator Thermistor
40Clip, Thermistor
411116793 Whirlpool Refrigerator Cover
422006475 Whirlpool Refrigerator Screw
43Bracket, Light
44WP2306462 Whirlpool Refrigerator Bimetallic Defrost
45WP2259032 Whirlpool Ladder
462259445 Whirlpool Support Assembly
49WP2215650 Whirlpool Refrigerator Cover
50WP2198634 Whirlpool Door Pin
51W10757851-includeCORE Whirlpool Electronic Control+Core
52WP2198633 Whirlpool Refrigerator Flipper
532255563 Whirlpool Refrigerator Slide
56WPW10142283 Whirlpool Refrigerator Screw
