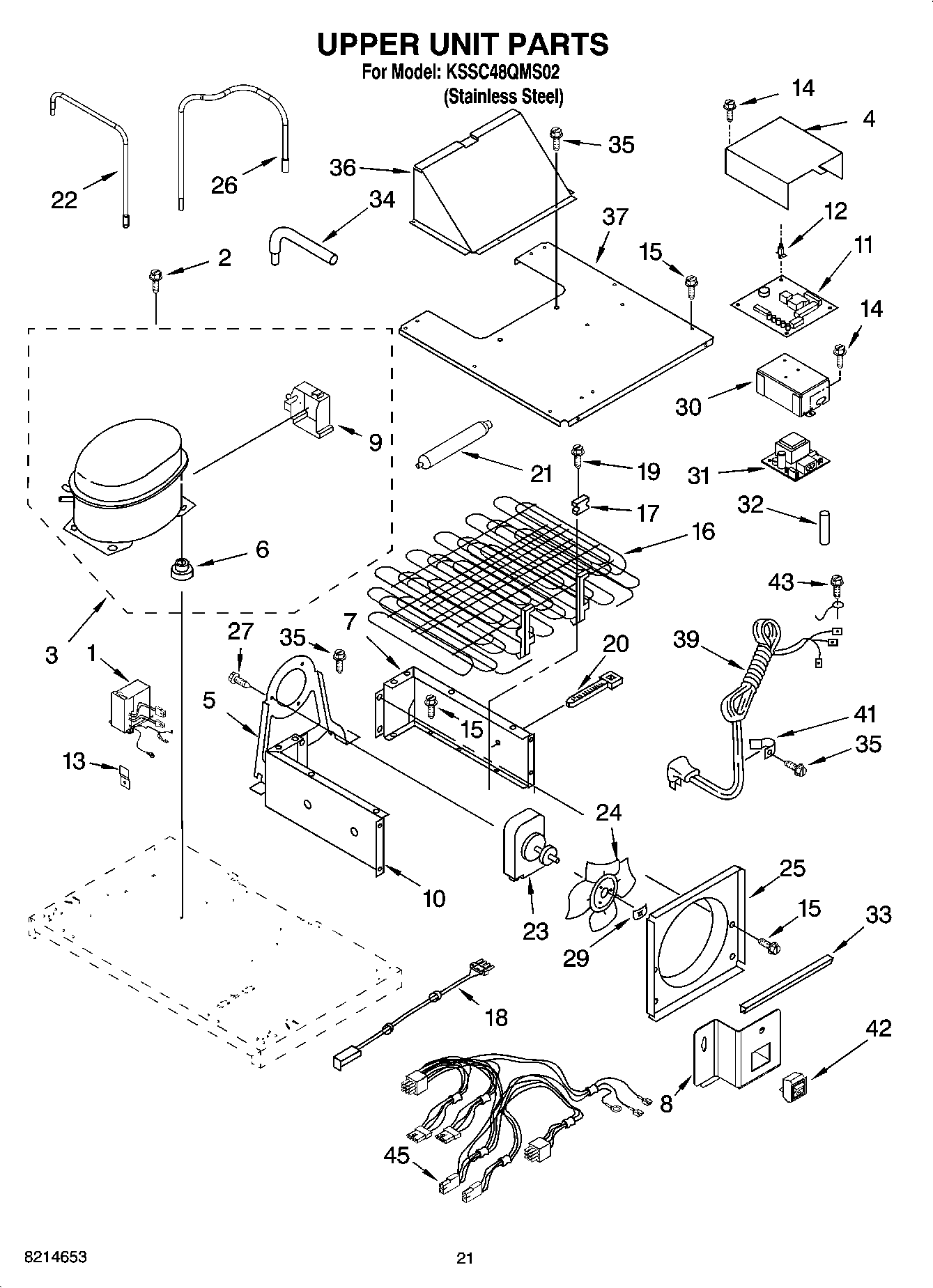

KSSC48QMS02 13 – UPPER UNIT PARTS

KSSC48QMS02 13 – UPPER UNIT PARTS

Written by

in

KSSC48QMS02 13 – UPPER UNIT PARTS

Products

Position	Product
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	W10841139 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
7	Shroud, Condenser (Right)
8	Bracket, Switch
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Shroud, Condenser (Left)
11	W10219463 Whirlpool Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	WP489128 Whirlpool Refrigerator Screw
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	Grommet (4)
18	WP2187629 Whirlpool Refrigerator Wire Jumper
19	Screw
20	WPW10339879 Whirlpool Wire Tie
21	W10843121 Whirlpool Refrigerator Tube
22	Tube, Transition (Condenser/Drier)
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	Tube, Heat Loop Transition
27	8281160 Whirlpool Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Housing, Power Supply
31	WP2259350 Whirlpool Refrigerator Electronic Control Board
32	Sleeve, Condenser
33	Grommet, Edge
34	W10528578 Whirlpool Refrigerator Tube
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
39	Service Cord
41	549193 Whirlpool Refrigerator Power Clamp
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
45	VALVE, ACCESS (5/8“)
45	Wiring Harness, Unit Compartment
45	and Optional Parts Not Included
45	FOLLOWING PARTS NOT ILLUSTRATED
45	978027 Whirlpool Refrigerator Primary Valve
45	VALVE, ACCESS (1/2“)
45	WP978025 Whirlpool Refrigerator Valve
45	978030 Whirlpool Refrigerator Valve
45	978026 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	REFRIGERANT CHARGE 7.75 oz. (R-134A)
