KSSC48QMS02 14 – LOWER UNIT AND TUBE PARTS

KSSC48QMS02 14 – LOWER UNIT AND TUBE PARTS

Written by

in

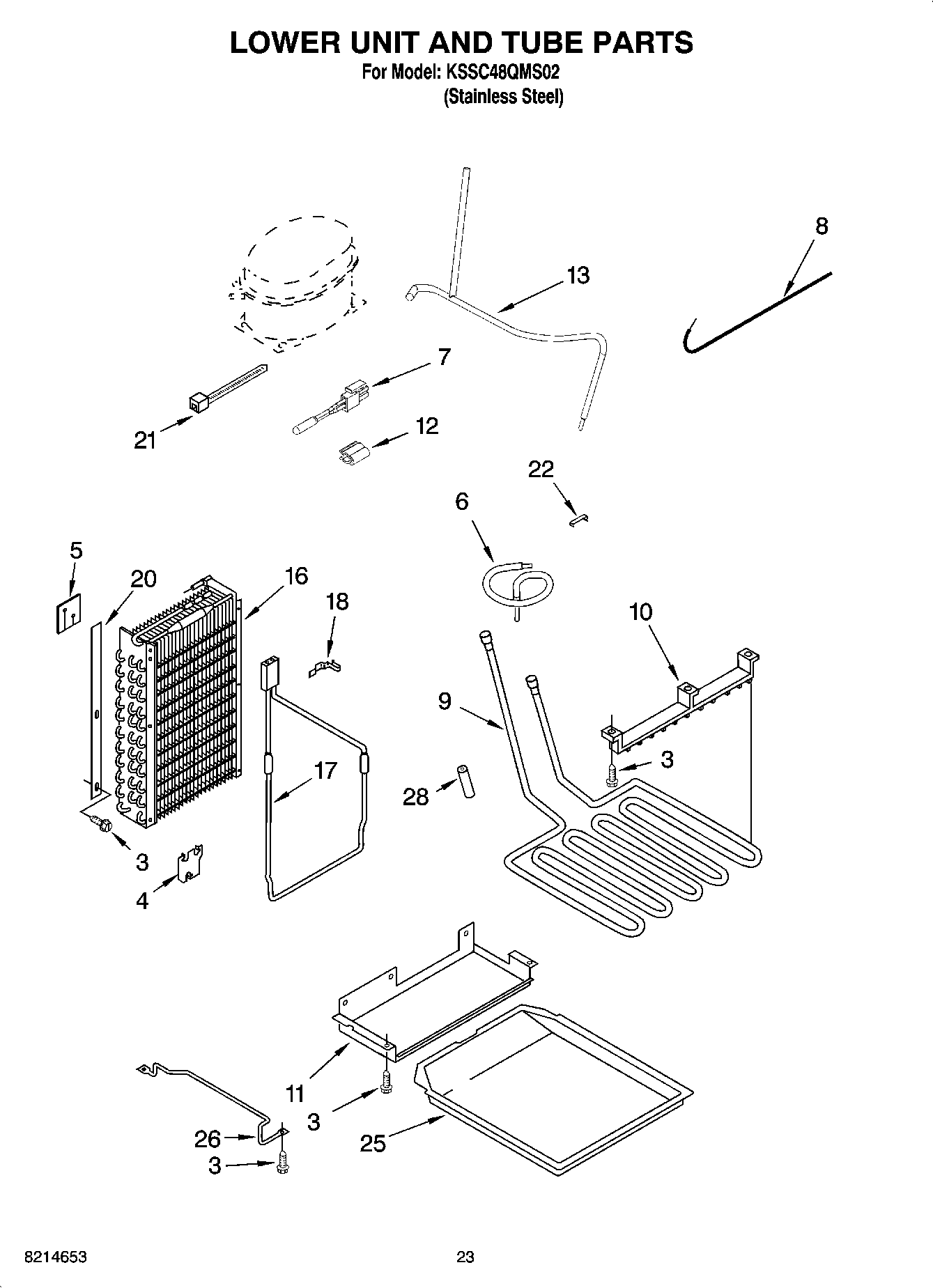

KSSC48QMS02 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
3W11624204 Whirlpool Screw
4Bracket
5Side Support
6Suction Tube
7WP2188820 Whirlpool Refrigerator Thermistor
8Tube, Transition (Drier/Restrictor)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
129791833 Whirlpool Refrigerator Clip
13Tube, Discharge
16WP2306094 Whirlpool Evaporator
17WP2306389 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21Wire Tie
22W10169509 Whirlpool Refrigerator Clip
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
282215648 Whirlpool Refrigerator Dampener
